DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DAK-89EVAL BOARD LNK362 LNK363 LNK364 |
3,733 | - |
|
Datasheet | LinkSwitch®-XT | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 2 W | 6.2V | 322mA | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK362, LNK363, LNK364 |
|
DAK-91EVAL BOARD FOR TNY278 |
2,273 | - |
|
Datasheet | TinySwitch®-III | Bulk | Obsolete | AC/DC, Primary Side | 1 Isolated Output | 12 W | 12V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | TNY278 |
|
EL7535EVAL1EVAL BOARD FOR EL7535 |
3,164 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 350mA | 2.5V ~ 6V | Buck | - | Board(s) | EL7535 |
|
|
EL7536EVAL1EVAL BOARD FOR EL7536 |
4,002 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1A | 2.5V ~ 5.5V | Buck | - | Board(s) | EL7536 |
|
|
HIP4082EVALEVAL BOARD FOR HIP4082 |
1,518 | - |
|
Datasheet | - | - | Obsolete | DC/AC Converter | 1 Isolated Output | - | 115VAC | - | 11V ~ 15V | - | - | Board(s) | HIP4082 |
|
|
HIP6012EVAL1EVAL BOARD FOR HIP6012 |
2,587 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.3V ~ 12V | 25A | 2.5V ~ 12V | Buck | - | Board(s) | HIP6012 |
|
|
ISL6410AEVAL1EVAL BOARD FOR ISL6410A |
3,379 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 500mA | 4.5V ~ 5.5V | Buck | - | Board(s) | ISL6410A |
|
|
ISL6410EVAL1EVAL BOARD FOR ISL6410 |
4,136 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 500mA | 3V ~ 3.6V | Buck | - | Board(s) | ISL6410 |
|
|
ISL6551EVAL1EVAL BOARD FOR ISL6551 |
1,543 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 60A | 36V ~ 75V | Buck | 470kHz | Board(s) | ISL6551 |
|
|
ISL6558EVAL1EVAL BOARD FOR ISL6558 |
2,308 | - |
|
Datasheet | Endura™ | - | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 100A | 11V ~ 12.6V | Buck | 125kHz | Board(s) | ISL6558 |
|
|
ISL6559EVAL1EVAL BOARD FOR ISL6559 ISL6605 |
1,913 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, VRM Supply | 1 Non-Isolated Output | 125 W | 1.25V | 100A | 5V, 12V | Buck | 600kHz | Board(s) | ISL6559, ISL6605 |
|
|
ISL6562EVAL1EVAL BOARD FOR ISL6562 |
1,638 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, VRM Supply | 1 Non-Isolated Output | 60 W | 1.5V | 40A | 5V, 12V | Buck | 400kHz | Board(s) | ISL6562 |
|
|
ISL6721EVAL1EVAL BOARD FOR ISL6721 |
1,455 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | - | 10 W | 1.8V, 3.3V | - | 48V | - | - | Board(s) | ISL6721 |
|
|
ISL6844EVAL2EVAL BOARD FOR ISL6844 |
1,359 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, Power Over Ethernet | 1 Isolated Output | 11 W | 3.3V | 3.35A | 36V ~ 57V | Flyback | - | Board(s) | ISL6844 |
|

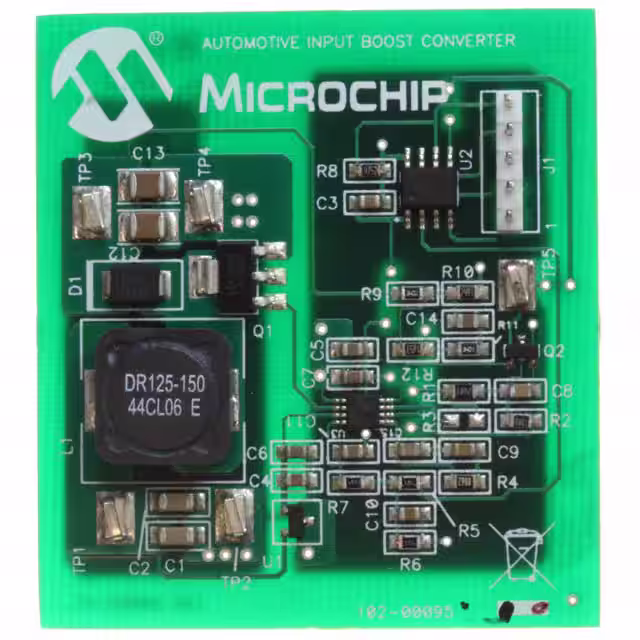

MCP1630DM-DDBS1EVAL BOARD FOR MCP1630 |
1,429 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 36.5V | 400mA | 9V ~ 18V | Boost | 500kHz | Board(s) | MCP1630 |
|

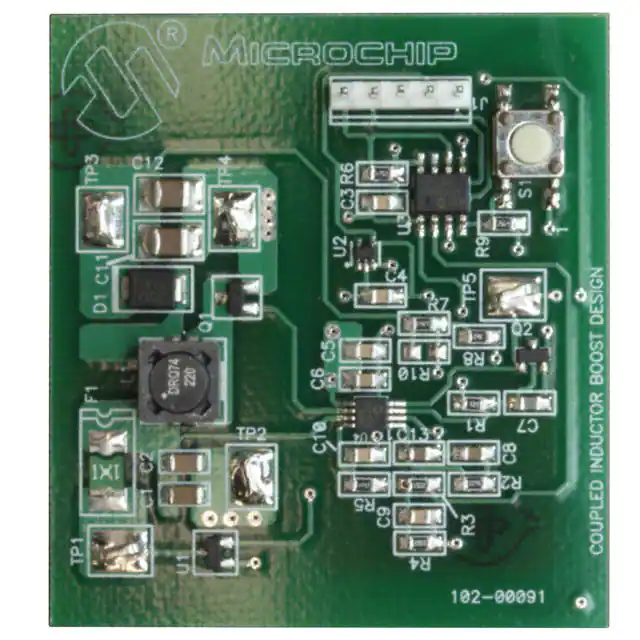

MCP1630DM-DDBS2EVAL BOARD FOR MCP1630 |
2,072 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 15V ~ 40V | 30mA | 3V ~ 5.5V | Boost | 100kHz | Board(s) | MCP1630 |
|
|
MAX5060EVKITEVAL BOARD FOR MAX5060 |
1,072 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 20A | 10V ~ 14V | Buck | 270kHz | Board(s) | MAX5060 |
|
|
MAX5042EVKITEVAL BOARD FOR MAX5042 |
2,146 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | - | 5V | 8A | ±36V ~ 75V | Buck | 250kHz | Board(s) | MAX5042 |
|
|
IRAC1166-100WEVAL BOARD FOR IR1166S IRF7853 |
2,514 | - |
|
Datasheet | - | Box | Obsolete | AC/DC, Secondary Side | 1 Isolated Output | 100 W | 16V | 6.25A | 90 ~ 264 VAC | Flyback | - | Board(s) | IR1166S, IRF7853 |
|
|
LM3075EVALEVAL BOARD FOR LM3075 |
1,133 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 25 W | 5V | 5A | 8V ~ 25V | Buck | 300kHz | Board(s) | LM3075 |
