DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL6263AEVAL1ZEVAL BOARD FOR ISL6263A |
3,041 | - |
|
Datasheet | Robust Ripple Regulator™ (R3) | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.412V ~ 1.2875V | 12A | 5V ~ 25V | Buck | 300kHz | Board(s) | ISL6263A |
|
|
ISL8200MEVAL2PHZEVAL BOARD FOR ISL8200M |
3,295 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 20A | 3V ~ 20V | Buck | 700kHz ~ 1.5MHz | Board(s) | ISL8200M |
|

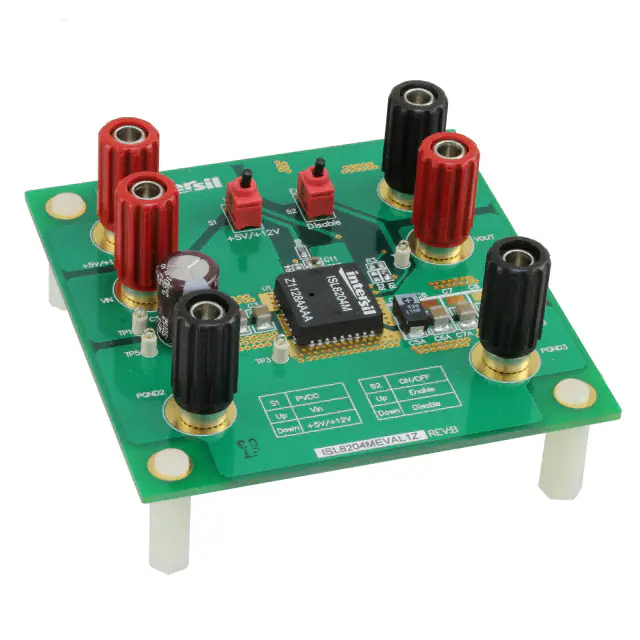

ISL8204MEVAL1ZEVAL BOARD FOR ISL8204M |
2,350 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.5V | 4A | 1V ~ 20V | Buck | 600kHz | Board(s) | ISL8204M |
|
XRP6657EVBEVAL BOARD FOR XRP6657 |
4,866 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 1.5A | 2.5V ~ 5.5V | Buck | 1.3MHz | Board(s) | XRP6657 |
|

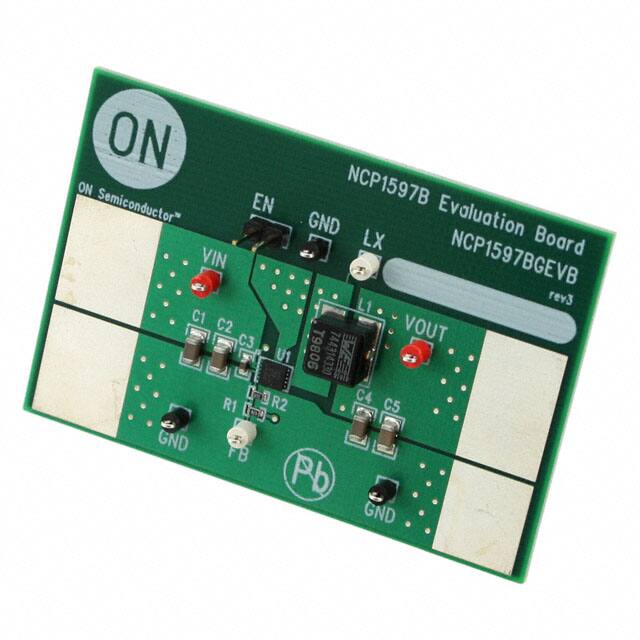

NCP1597BGEVBEVAL BOARD FOR NCP1597B |
4,280 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 4V ~ 5.5V | Buck | 1MHz | Board(s) | NCP1597B |
|
NCP3170AGEVBEVAL BOARD FOR NCP3170 |
1,804 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 3A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | NCP3170 |
|
|
ISL6754DBEVAL1ZEVAL BOARD FOR ISL6754 |
3,182 | - |
|
Datasheet | - | Box | Obsolete | DC/DC Isolated Power Supply | 1 Isolated Output | - | 12V | - | - | Resonant | - | Board(s) | ISL6754 |
|
|
ISL9103IRUWEVAL1ZEVAL BOARD FOR ISL9103 |
1,497 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 500mA | 2.7V ~ 6V | Buck | 2.4MHz | Board(s) | ISL9103 |
|

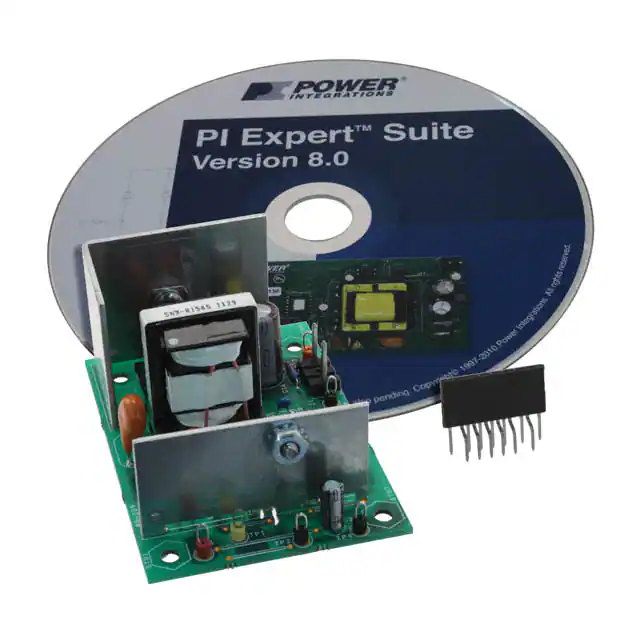

RDK-239EVAL BOARD FOR LCS702HG |
4,939 | - |
|
Datasheet | HiperLCS™ | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 150 W | 24V | 6.25A | 300V ~ 420V | Resonant | - | Board(s) | LCS702HG |
|

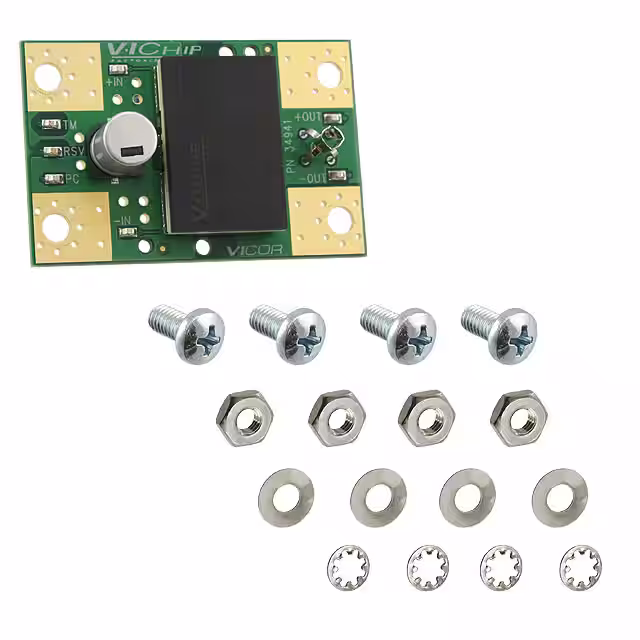

BCD384F480T325A00EVAL BOARD FOR BCM384F480T325 |
3,203 | - |
|
Datasheet | VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 325 W | 48V | 7A | 360V ~ 400V | Buck | 1.75MHz | Board(s) | BCM384F480T325 |
|

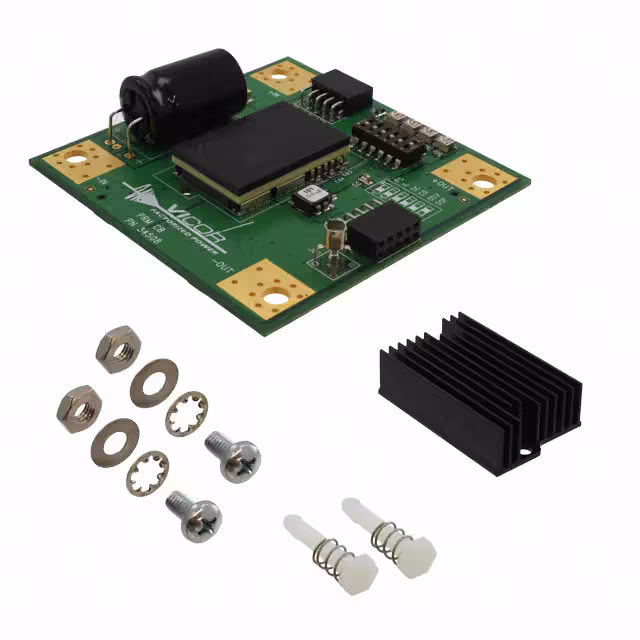

MP028F036M12AL-CBEVAL BOARD FOR MP028F036M12 |
4,201 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 120 W | 36V | 3.3A | 16V ~ 50V | Buck-Boost | 1MHz | Board(s) | MP028F036M12 |
|

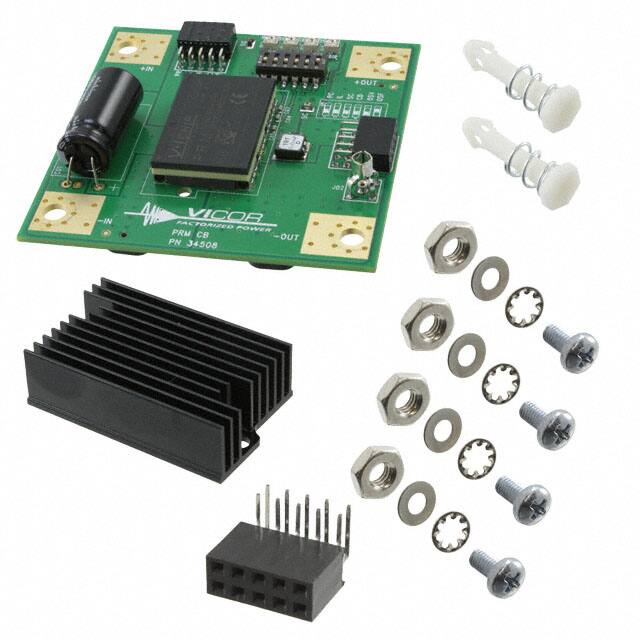

P048F048T24AL-CBEVAL BOARD FOR P048F048T24AL |
2,396 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Obsolete | DC/DC, Step Up or Down | 1 Non-Isolated Output | 240 W | 48V | 5A | 36V ~ 75V | Buck-Boost | 1.55MHz | Board(s) | P048F048T24AL |
|

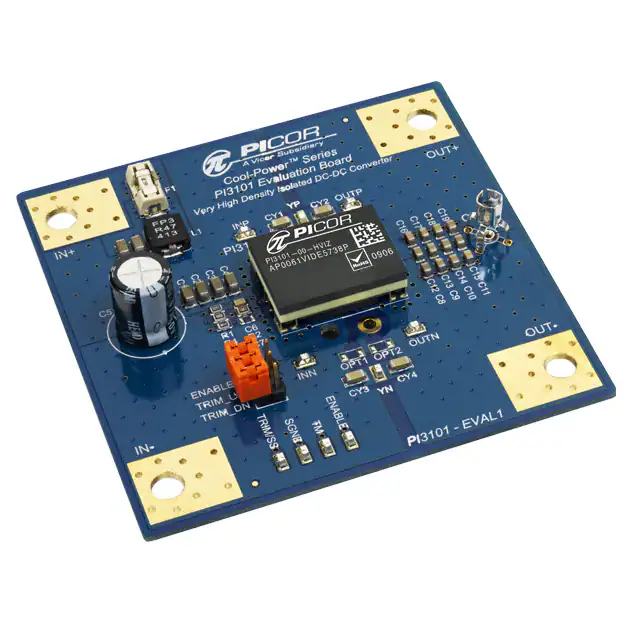

PI3101-00-EVAL1EVAL BOARD FOR PI310100 |
2,376 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 60 W | 3.3V | 18A | 36V ~ 75V | Buck | 900kHz | Board(s) | PI3101-00 |
|

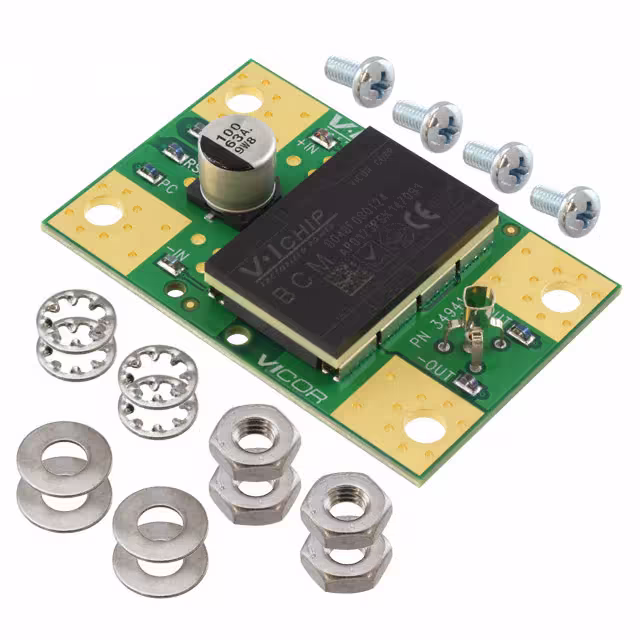

B048F080T24-EBEVAL BOARD FOR B048F080T24 |
3,692 | - |
|
Datasheet | VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 240 W | 8V | 30A | 38V ~ 55V | Buck | 3.2MHz | Board(s) | B048F080T24 |
|

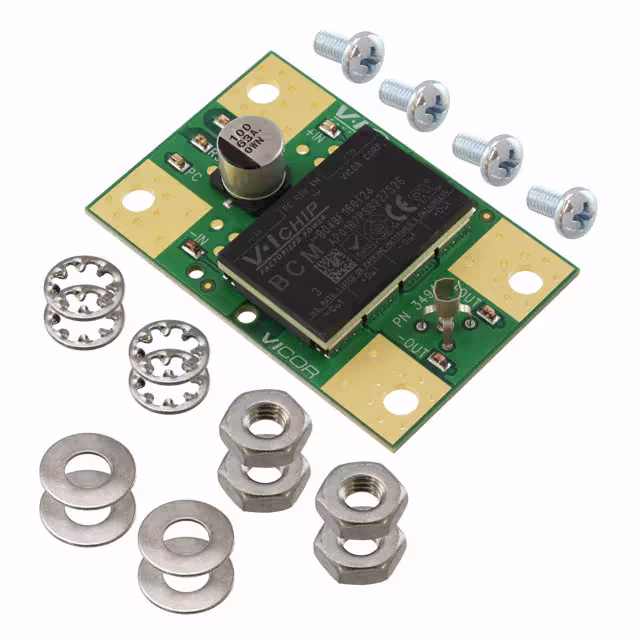

B048F160T24-EBEVAL BOARD FOR B048F160T24 |
2,335 | - |
|
Datasheet | VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 240 W | 16V | 15A | 38V ~ 55V | Buck | 3.6MHz | Board(s) | B048F160T24 |
|

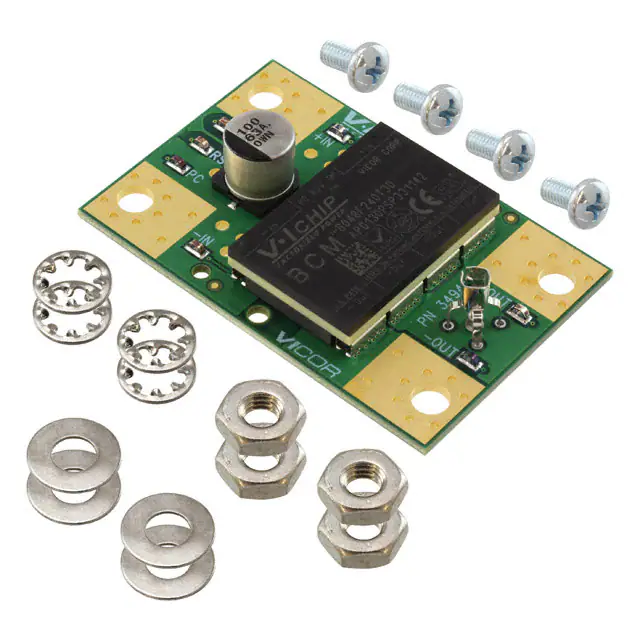

B048F240T30-EBEVAL BOARD FOR B048F240T30 |
3,597 | - |
|
Datasheet | VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 300 W | 24V | 12.5A | 38V ~ 53V | Buck | 3.4MHz | Board(s) | B048F240T30 |
|

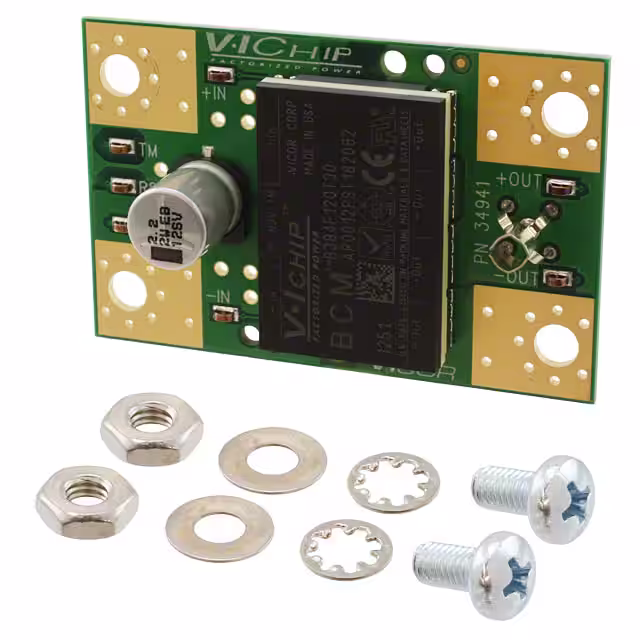

B384F120T30-EBEVAL BOARD FOR B384F120T30 |
1,982 | - |
|
Datasheet | VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 300 W | 12V | 25A | 360V ~ 400V | Buck | 3.4MHz | Board(s) | B384F120T30 |
|

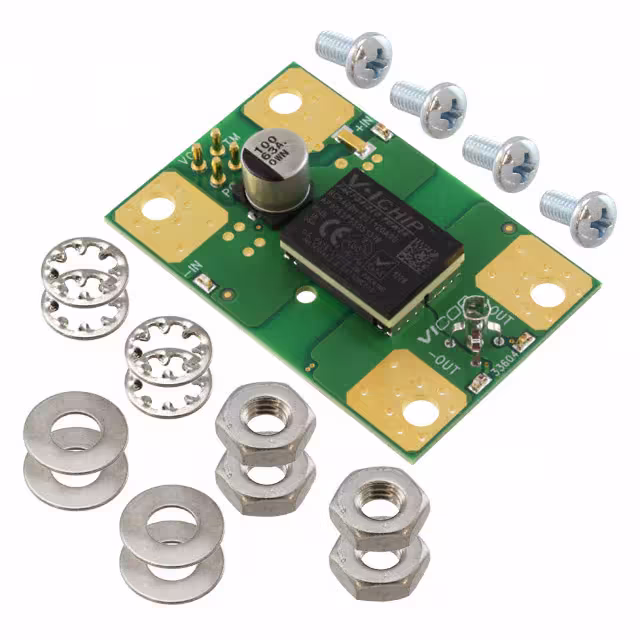

BCD48BH120T120A00EVAL BOARD FOR BCM48BH120T120A |
2,118 | - |
|
Datasheet | VI Chip® BCM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 120 W | 12V | 11.3A | 38V ~ 55V | Buck | 1.75MHz | Board(s) | BCM48BH120T120A |
|
|
MV036F011M100-CBEVAL BOARD FOR MV036F011M100 |
3,645 | - |
|
Datasheet | VI Chip® VTM® | Bulk | Obsolete | DC/DC, Step Down | 1 Isolated Output | 120 W | 1.13V | 100A | 26V ~ 50V | Buck | 3MHz | Board(s) | MV036F011M100 |
|

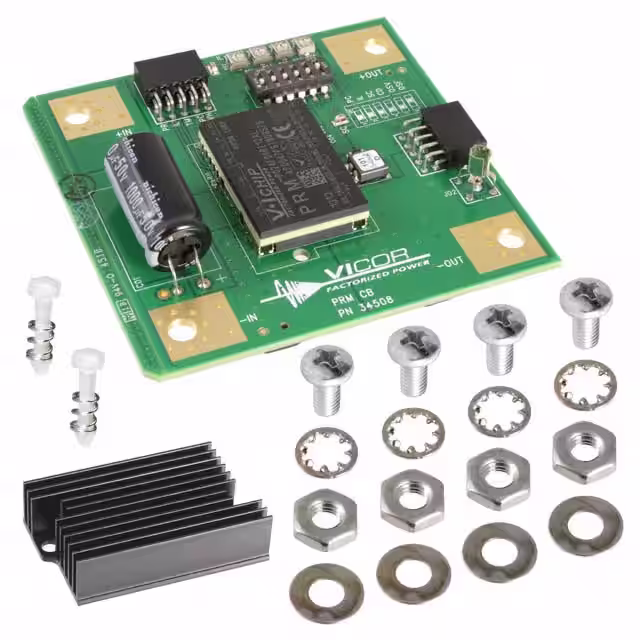

P024F048T12AL-CBEVAL BOARD FOR P024F048T12AL |
2,872 | - |
|
Datasheet | VI Chip® PRM® | Bulk | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | 120 W | 48V | 2.5A | 18V ~ 36V | Boost | 1.33MHz | Board(s) | P024F048T12AL |
