DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX8686EVKIT+EVAL BOARD FOR MAX8686 |
2,437 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.7V ~ 5.5V | 25A | 4.5V ~ 20V | Buck | 300kHz ~ 1MHz | Board(s) | MAX8686 |
|

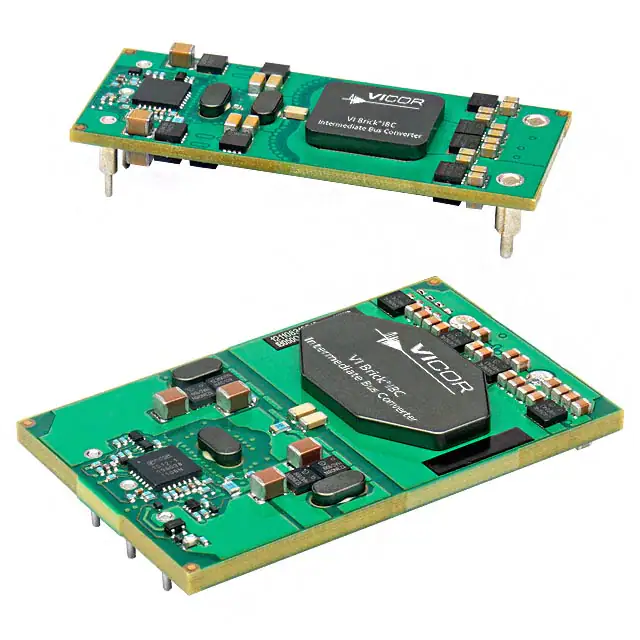

IB048E120T40N1-CBEVAL BOARD FOR IB048E120T40N1 |
3,192 | - |
|
Datasheet | VI Brick® IBC | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | 500 W | 12V | 40A | 38V ~ 55V | Buck | 1MHz | Board(s) | IB048E120T40N1 |
|

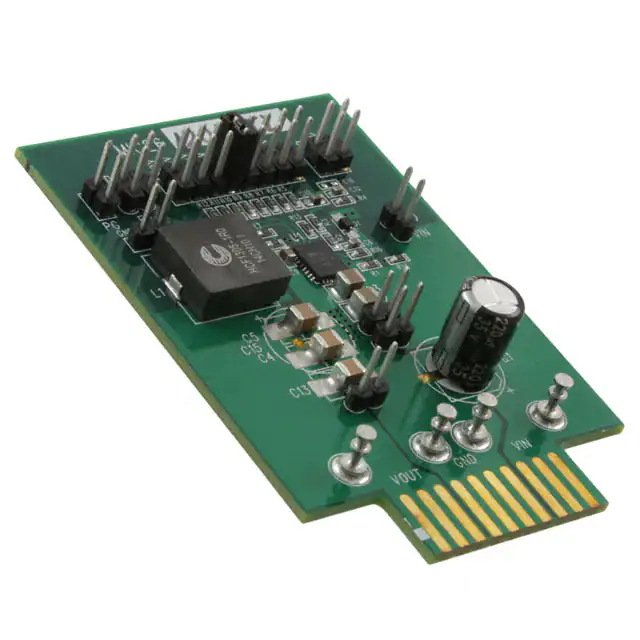

MIC261201YJL-EVEVAL BOARD FOR MIC261201 |
3,652 | - |
|
Datasheet | Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 12A | 5.5V ~ 28V | Buck | 600kHz | Board(s) | MIC261201 |
|

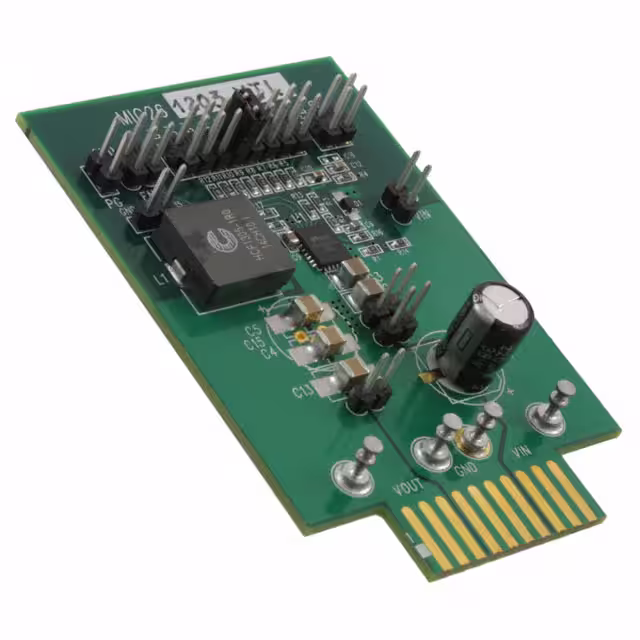

MIC261203YJL-EVEVAL BOARD FOR MIC261203 |
3,681 | - |
|
Datasheet | HyperLight Load®, SuperSwitcher IIG™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Isolated Output | - | 5V | 12A | 5.5V ~ 28V | Buck | 600kHz | Board(s) | MIC261203 |
|

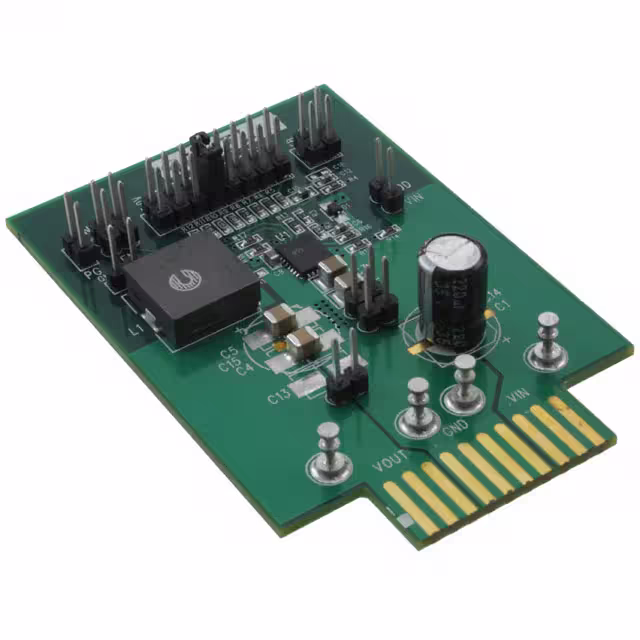

MIC26901YJL-EVEVAL BOARD FOR MIC26901 |
2,453 | - |
|
Datasheet | Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 9A | 5.5V ~ 28V | Buck | 600kHz | Board(s) | MIC26901 |
|

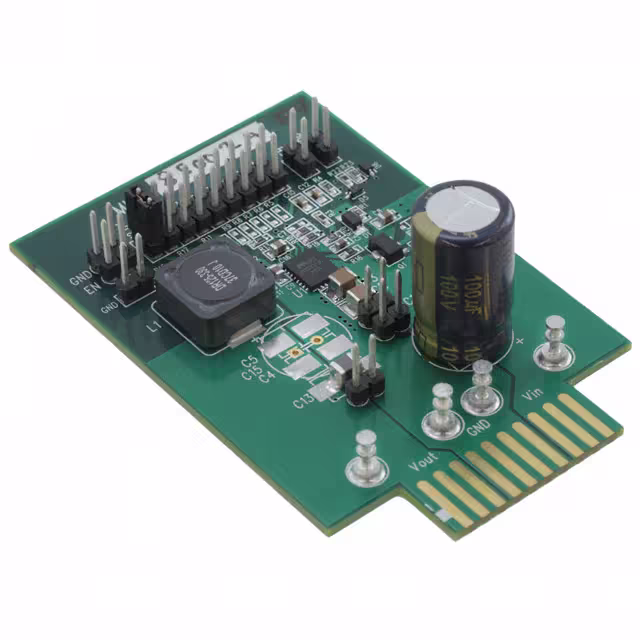

MIC28500-2A-EVEVAL BOARD FOR MIC28500 |
4,221 | - |
|
Datasheet | Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 2A | 30V ~ 75V | Buck | 250kHz | Board(s) | MIC28500 |
|

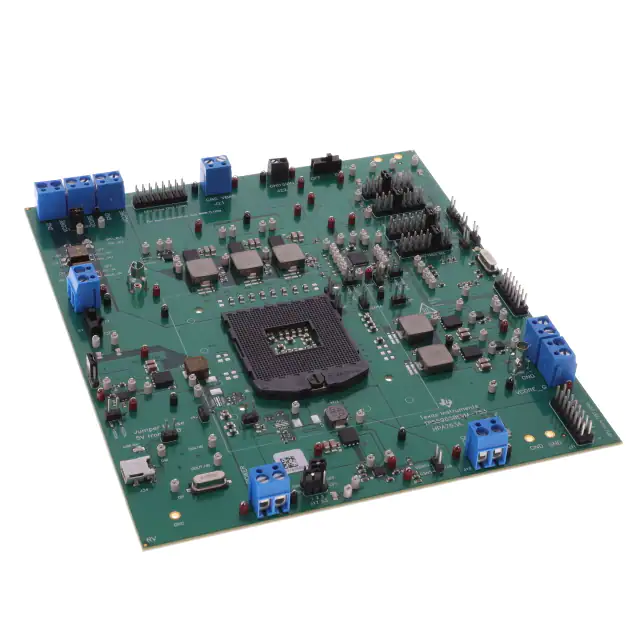

TPS59650EVM-753EVAL BOARD FOR TPS51219 TPS51916 |
4,746 | - |
|
Datasheet | D-CAP+™ | Box | Obsolete | Special Purpose DC/DC, Intel IMVP7 SVID Power System | - | - | - | - | 9V ~ 20V | Buck | - | Board(s) | TPS51219, TPS51916, TPS59650, TPS70102 |
|

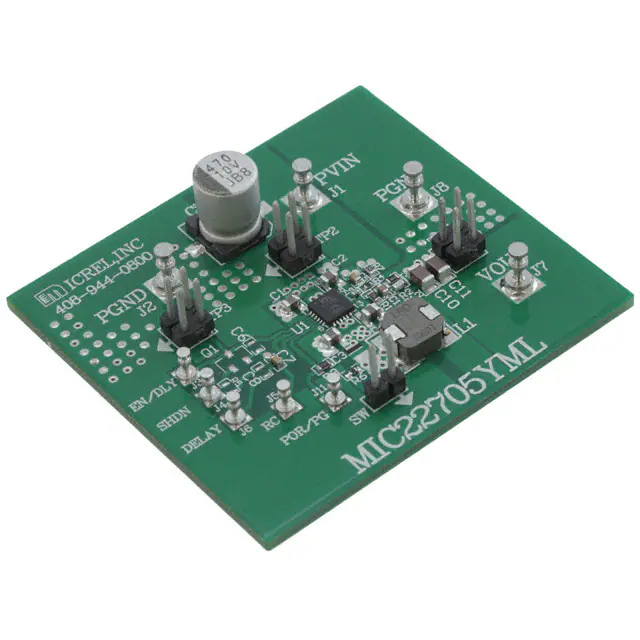

MIC22705YML-EVEVAL BOARD FOR MIC22705 |
2,067 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 7A | 2.9V ~ 5.5V | Buck | 1MHz | Board(s) | MIC22705 |
|

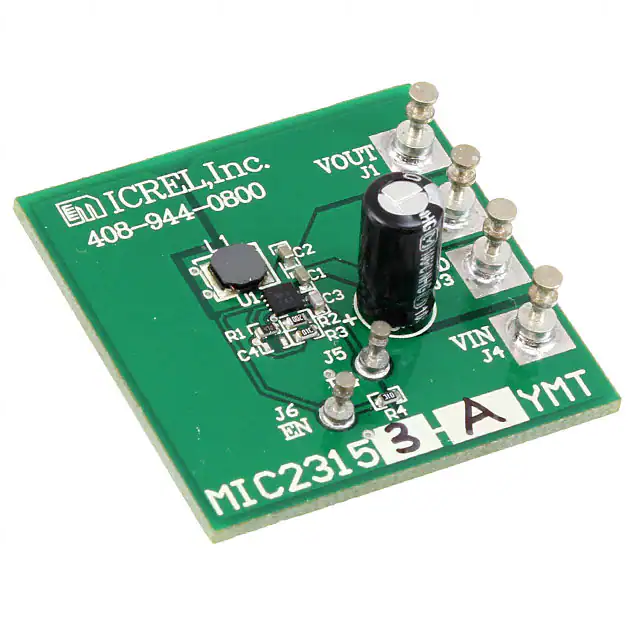

MIC23153YMT-EVEVAL BOARD FOR MIC23153 |
3,097 | - |
|
Datasheet | HyperLight Load® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 2A | 2.7V ~ 5.5V | Buck | 4MHz | Board(s) | MIC23153 |
|

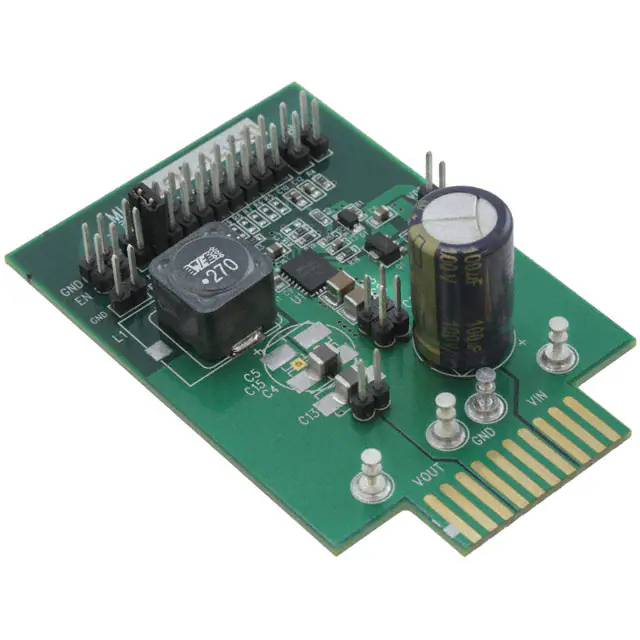

MIC28510-12V-EVEVAL BOARD FOR MIC28510 |
4,286 | - |
|
Datasheet | Hyper Speed Control®, SuperSwitcher II™ | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 4A | 5V ~ 75V | Buck | - | Board(s) | MIC28510 |
|

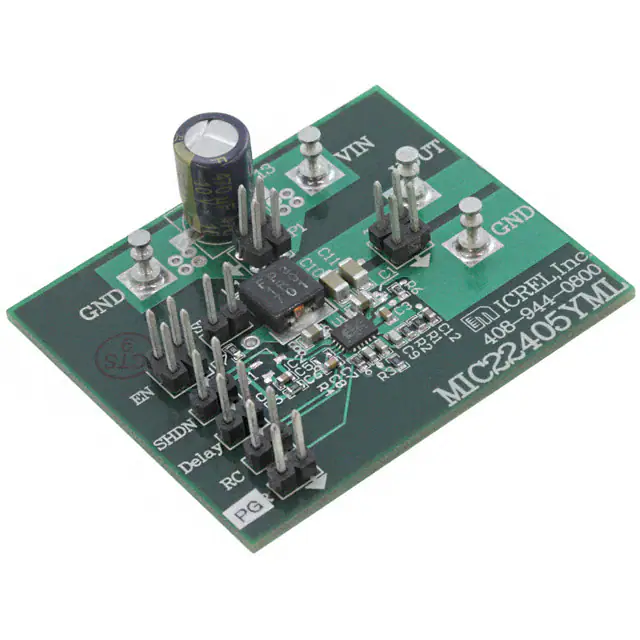

MIC22405YML-EVEVAL BOARD FOR MIC22405 |
3,141 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 4A | 2.9V ~ 5.5V | Buck | 1MHz | Board(s) | MIC22405 |
|

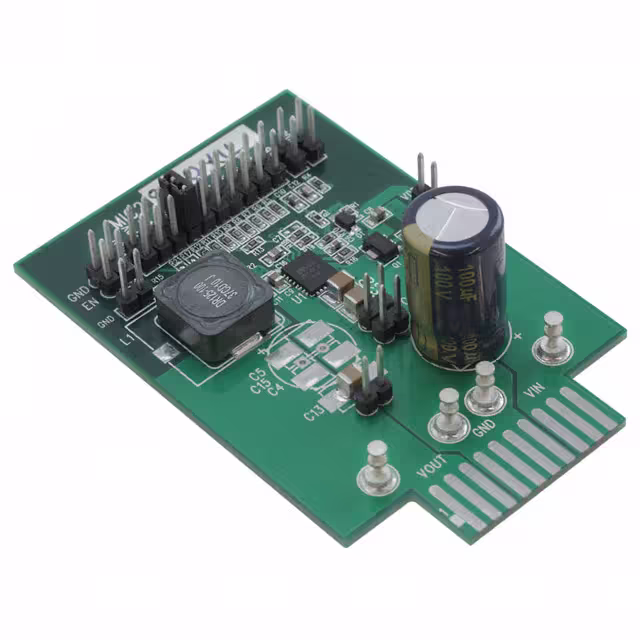

MIC28510-5V-EVEVAL BOARD FOR MIC28510 |
1,846 | - |
|
Datasheet | Hyper Speed Control®, SuperSwitcher II™ | Bulk | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 5V | 4A | 5V ~ 75V | Buck | - | Board(s) | MIC28510 |
|

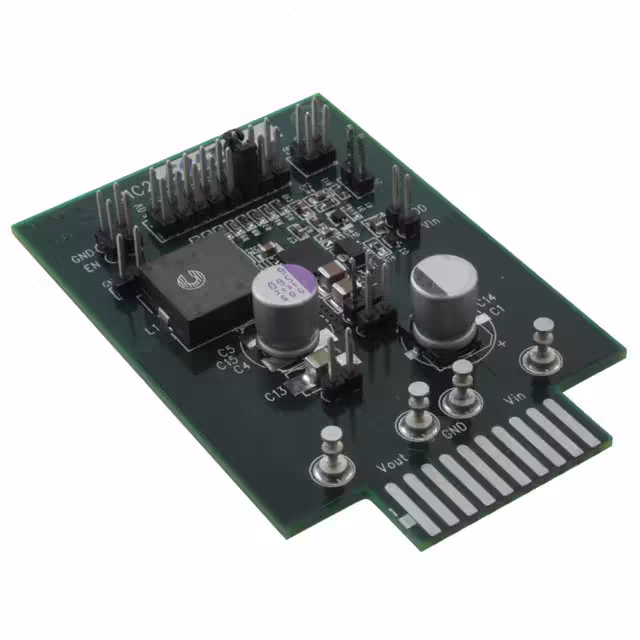

MIC26950YJL-EVEVAL BOARD FOR MIC26950 |
2,807 | - |
|
Datasheet | Hyper Speed Control®, SuperSwitcher II™ | Box | Discontinued at Digi-Key | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V, 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 12A | 4.5V ~ 26V | Buck | 300kHz | Board(s) | MIC26950 |
|
|
ISL6537-6506EVAL1EVAL BOARD FOR ISL6506 ISL6537 |
3,496 | - |
|
Datasheet | - | Bulk | Obsolete | Special Purpose DC/DC, DDR Memory Supply | - | - | - | - | - | Buck | - | Board(s) | ISL6506, ISL6537 |
|
MAX17075EVKIT+EVAL BOARD FOR MAX17075 |
4,063 | - |
|
Datasheet | - | Box | Active | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 6.5V, 13V, 30V, -7V | 500mA, 500mA, 60mA, 30mA | 2.5V ~ 5.5V | Boost, Inverting | 1.2MHz | Board(s) | MAX17075 |
|
MAX17103EVKIT+EVAL BOARD FOR MAX17103 |
4,824 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 4 Non-Isolated Outputs | - | 4.25V, 8.5V, 23V, -6V | 250mA, 200mA, 20mA, 20mA | 2.3V ~ 5.5V | Boost, Inverting | 1.2MHz | Board(s) | MAX17103 |
|
MAX8784EVKIT+EVAL BOARD FOR MAX8784 |
2,933 | - |
|
Datasheet | - | Box | Obsolete | Special Purpose DC/DC, LCD Supply | 6 Non-Isolated Outputs | - | 7V, 7V, 7V, 14V, 28V, -9V | 700mA, 180mA, 180mA, 180mA, 50mA, 50mA | 4.5V ~ 5.5V | Boost, Inverting | 1.2MHz | Board(s) | MAX8784 |
|

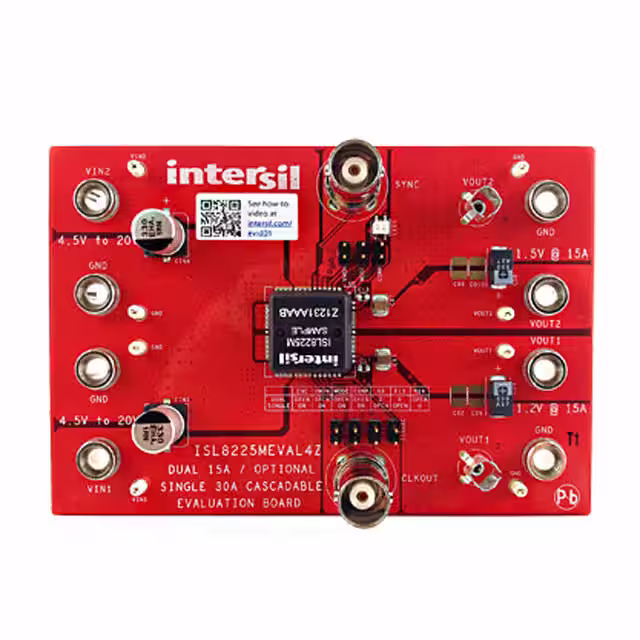

ISL8225MEVAL4ZEVAL BOARD FOR ISL8225M |
3,193 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 15A, 15A | 4.5V ~ 20V | Buck | - | Board(s) | ISL8225M |
|

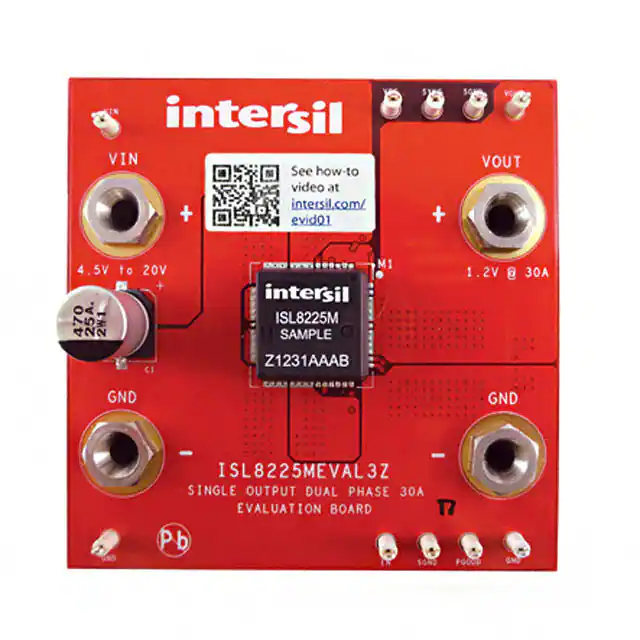

ISL8225MEVAL3ZEVAL BOARD FOR ISL8225M |
2,168 | - |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 6V | 30A | 4.5V ~ 20V | Buck | - | Board(s) | ISL8225M |
|

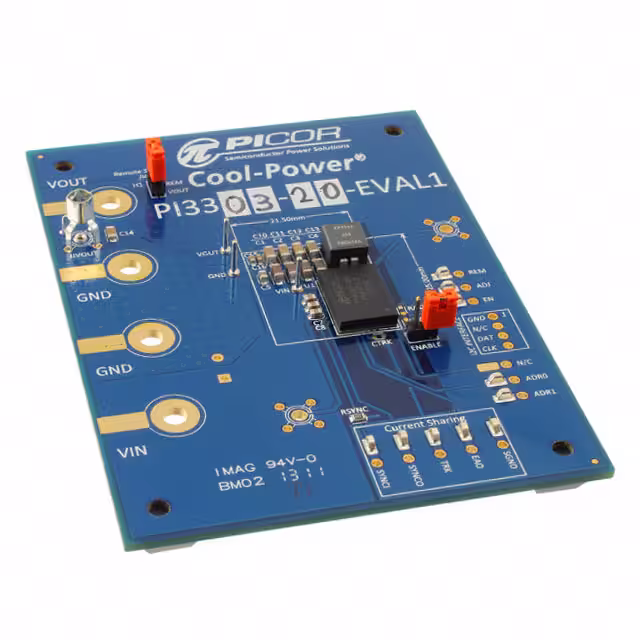

PI3303-20-EVAL1EVAL BOARD FOR PI330320 |
4,261 | - |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 8A | 17.4V ~ 36V | Buck | 1.4MHz | Board(s) | PI3303-20 |
