DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1477BEVAL BOARD FOR LTM4609 |
2,368 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 30V | 10A | 10V ~ 36V | Buck-Boost | 300kHz | Board(s) | LTM4609 |
|

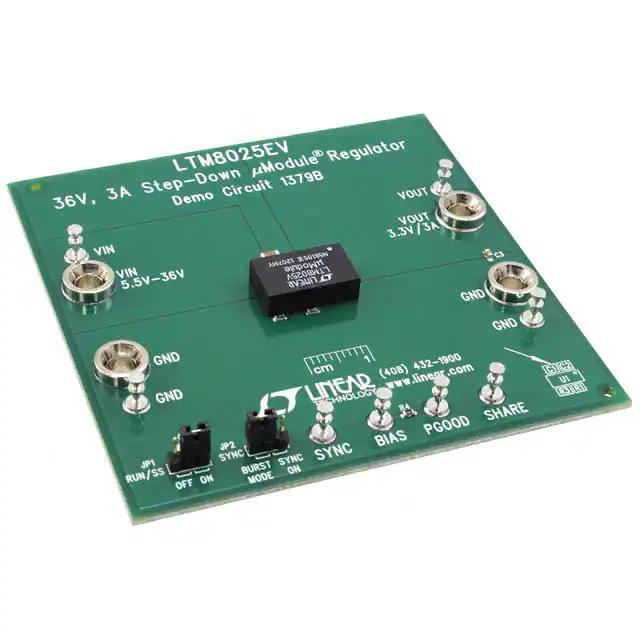

DC1379BEVAL BOARD FOR LTM8025 |
2,394 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5.5V ~ 36V | Buck | 250kHz ~ 2MHz | Board(s) | LTM8025 |
|

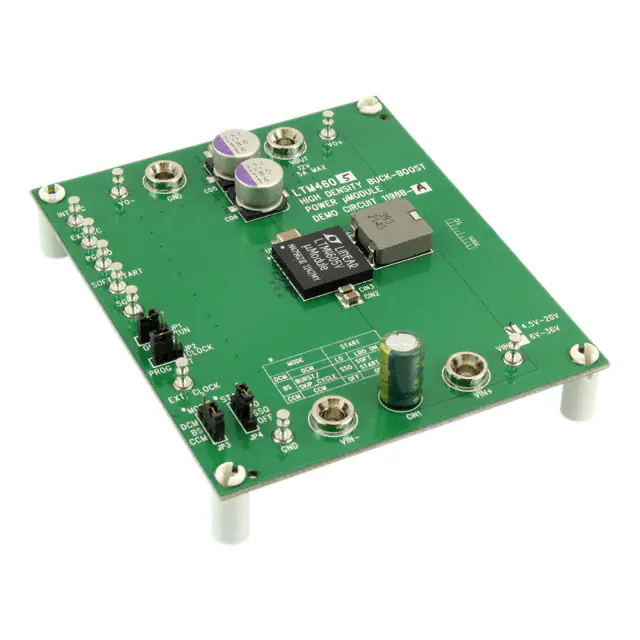

DC1198B-AEVAL BOARD FOR LTM4605 |
3,868 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 4.5V ~ 20V | Buck-Boost | 300kHz | Board(s) | LTM4605 |
|

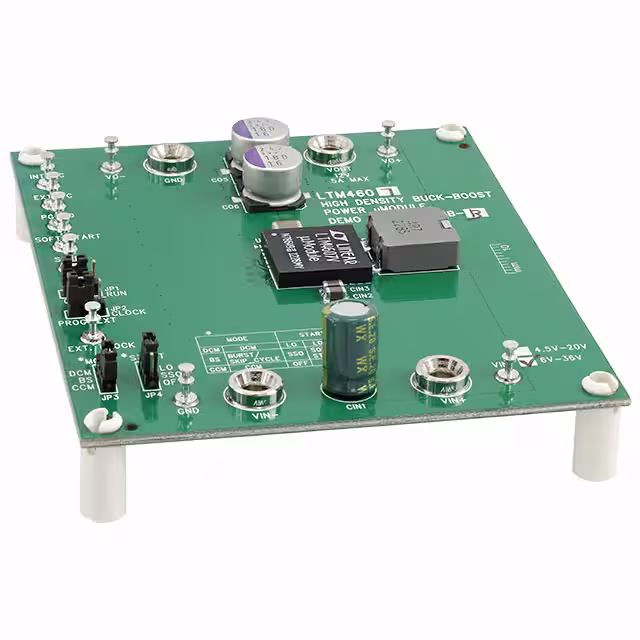

DC1198B-BEVAL BOARD FOR LTM4607 |
3,157 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 12V | 5A | 6V ~ 36V | Buck-Boost | 300kHz | Board(s) | LTM4607 |
|
DC1988AEVAL BOARD FOR LTM8058 |
3,182 | - |
|
Datasheet | µModule® | Box | Active | DC/DC Converter | 2 Isolated Outputs | - | 5V, 6V | 100mA, 100mA | 4.5V ~ 30V | Flyback | - | Board(s) | LTM8058 |
|

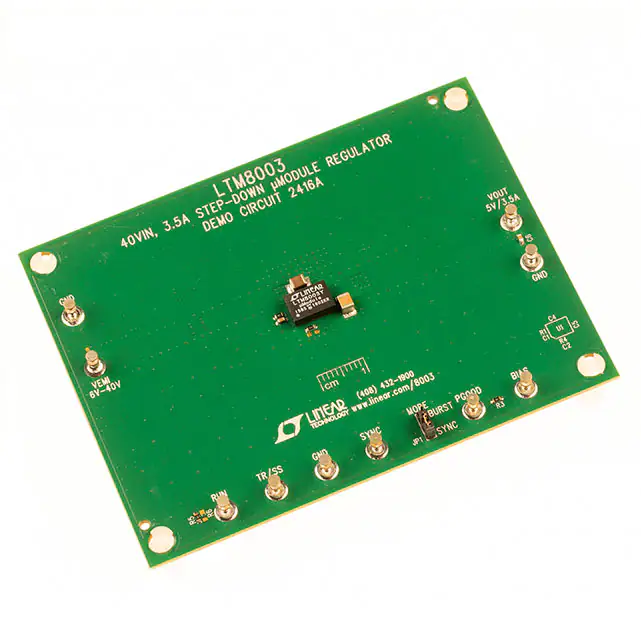

DC2416AEVAL BOARD FOR LTM8003 |
1,440 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 6V ~ 40V | Buck | 2MHz | Board(s) | LTM8003 |
|

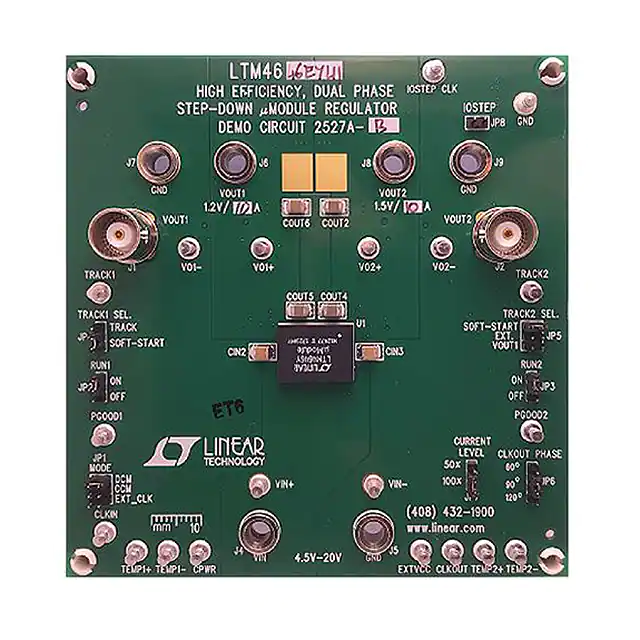

DC2527A-BEVAL BOARD FOR LTM4646 |
4,655 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 10A, 10A | 4.5V ~ 20V | Buck | 350kHz | Board(s) | LTM4646 |
|

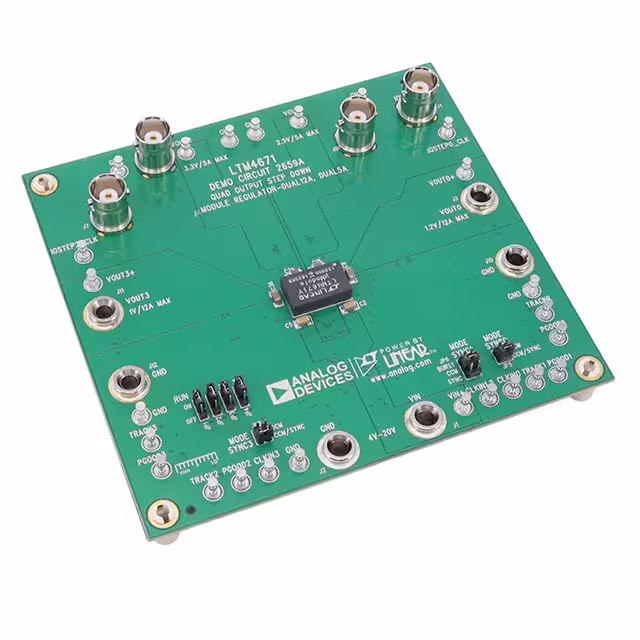

DC2659AEVAL BOARD FOR LTM4671 |
1,956 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V, 1.2V, 2.5V, 3.3V | 12A, 12A, 5A, 5A | 3.6V ~ 20V | Buck | 600kHz, 1MHz | Board(s) | LTM4671 |
|

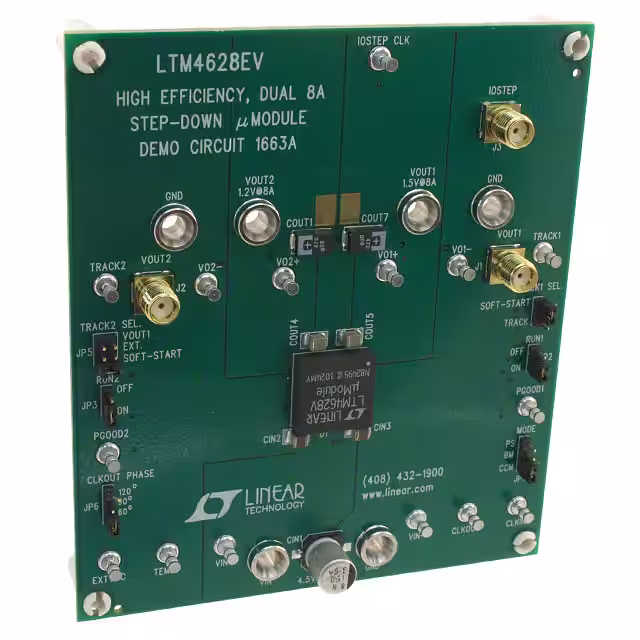

DC1663AEVAL BOARD FOR LTM4628 |
2,309 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 8A, 8A | 4.5V ~ 26.5V | Buck | 400kHz | Board(s) | LTM4628 |
|
DC1041A-BEVAL BOARD FOR LTM4601HV |
2,858 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V, or 5V | 12A | 4.5V ~ 28V | Buck | 800kHz | Board(s) | LTM4601HV |
|

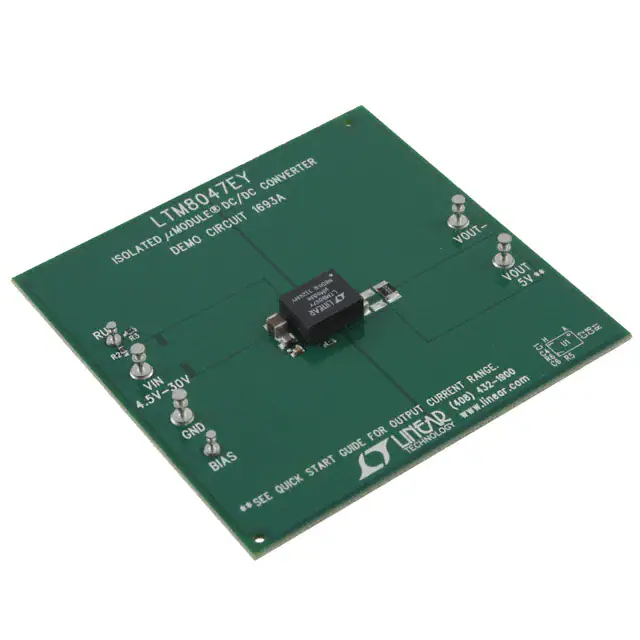

DC1693AEVAL BOARD FOR LTM8047 |
2,364 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 350mA | 4.5V ~ 30V | Buck | - | Board(s) | LTM8047 |
|
DC1696AEVAL BOARD FOR LTM8026 |
2,245 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 5A | 6V ~ 36V | Buck | 550kHz | Board(s) | LTM8026 |
|

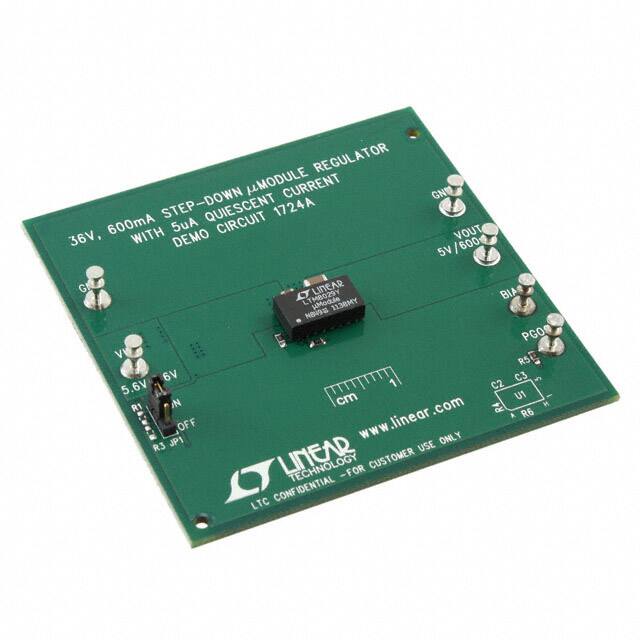

DC1724AEVAL BOARD FOR LTM8029 |
3,135 | - |
|
Datasheet | µModule® | Bag | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 600mA | 5.6V ~ 36V | Buck | 600kHz | Board(s) | LTM8029 |
|

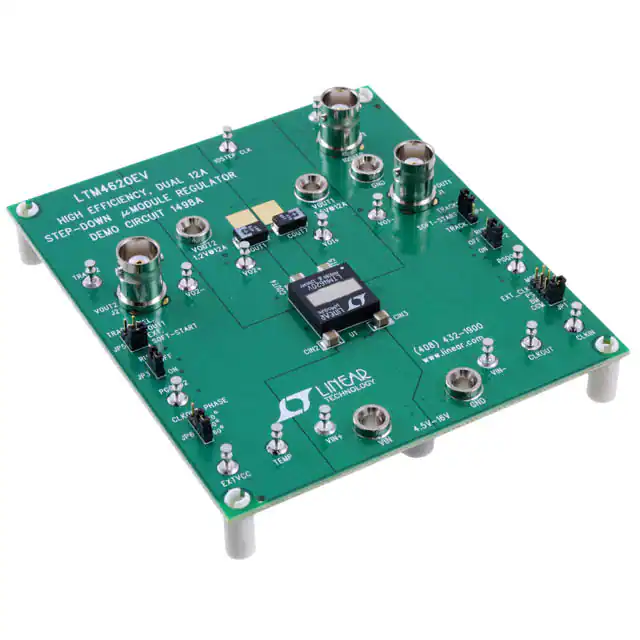

DC1498AEVAL BOARD FOR LTM4620 |
3,940 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.5V | 13A, 13A | 4.5V ~ 16V | Buck | 600kHz | Board(s) | LTM4620 |
|

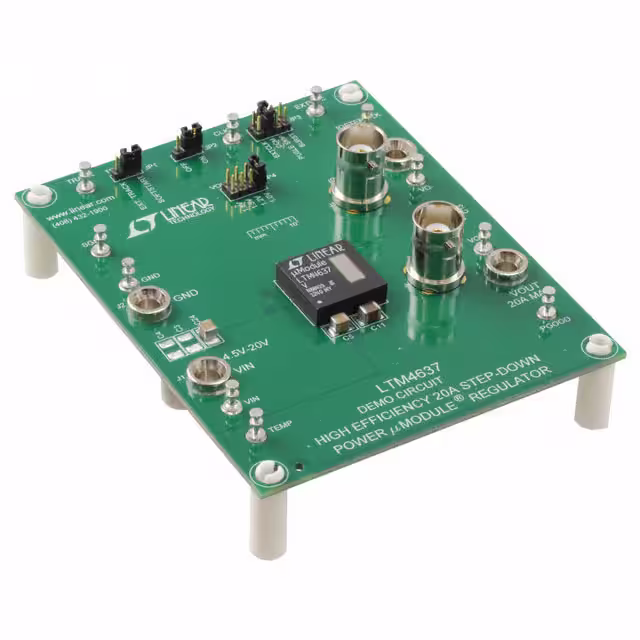

DC1872AEVAL BOARD FOR LTM4637 |
1,296 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V or 1.8V | 20A | 4.5V ~ 20V | Buck | 520kHz | Board(s) | LTM4637 |
|

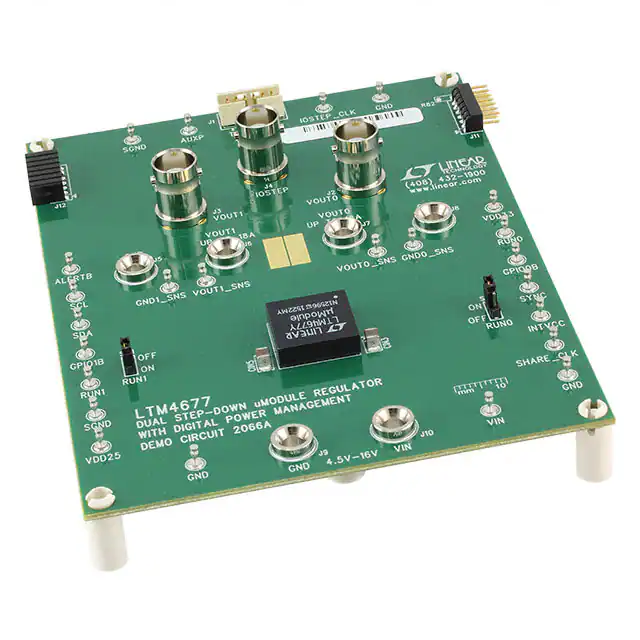

DC2066AEVAL BOARD FOR LTM4677 |
1,658 | - |
|
Datasheet | µModule® | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.8V | 18A, 18A | 4.5V ~ 16V | Buck | 500kHz | Board(s) | LTM4677 |
|

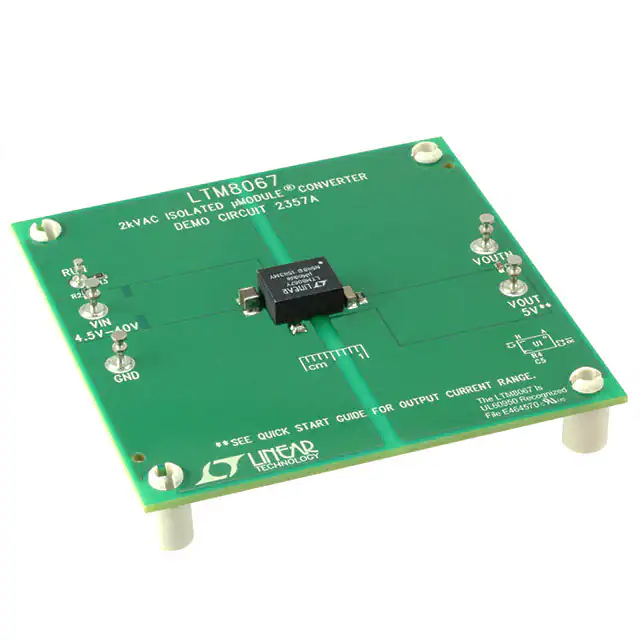

DC2357AEVAL BOARD FOR LTM8067 |
3,405 | - |
|
Datasheet | µModule® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 500mA | 4.5V ~ 40V | Flyback | - | Board(s) | LTM8067 |
|

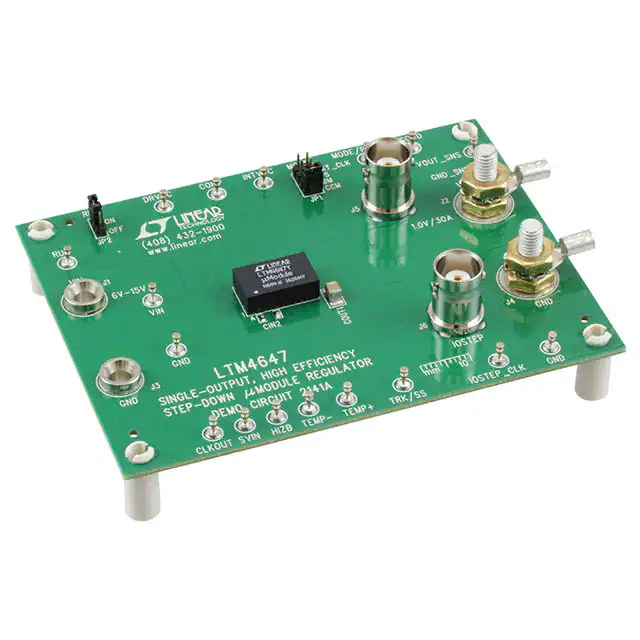

DC2141AEVAL BOARD FOR LTM4647 |
3,050 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 30A | 6V ~ 15V | Buck | 600kHz | Board(s) | LTM4647 |
|

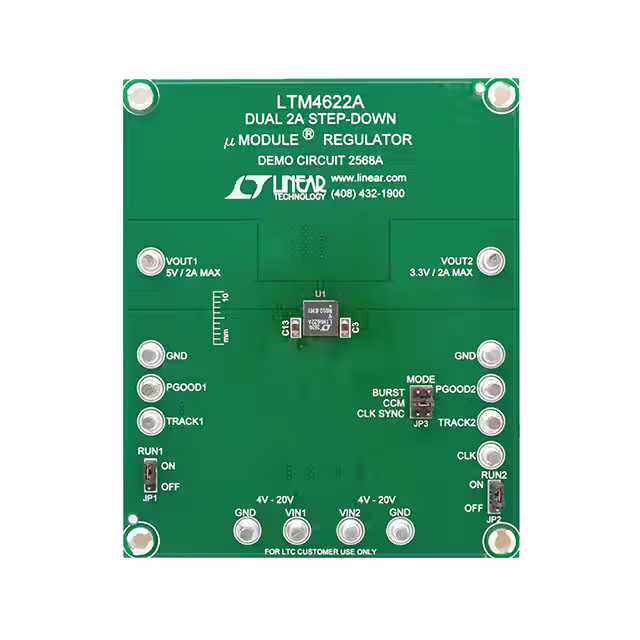

DC2568AEVAL BOARD FOR LTM4622A |
4,038 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2A, 2A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4622A |
|

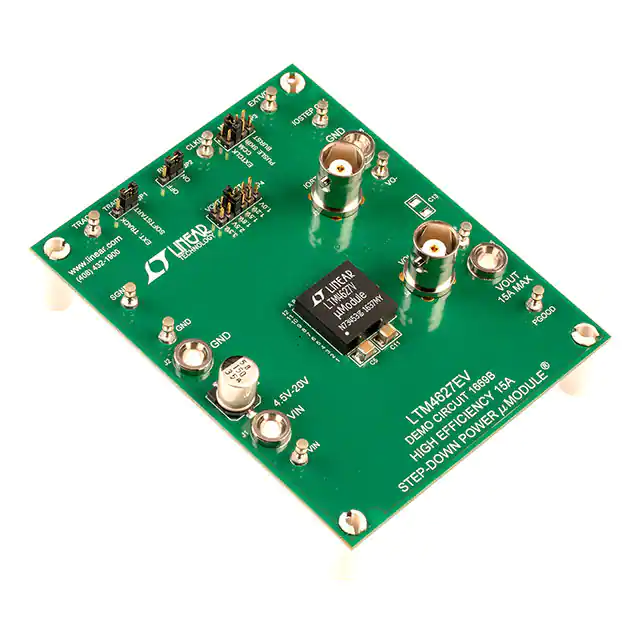

DC1669BEVAL BOARD FOR LTM4627EV |
2,040 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5V | 15A | 4.5V ~ 20V | Buck | 500kHz | Board(s) | LTM4627EV |
