DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

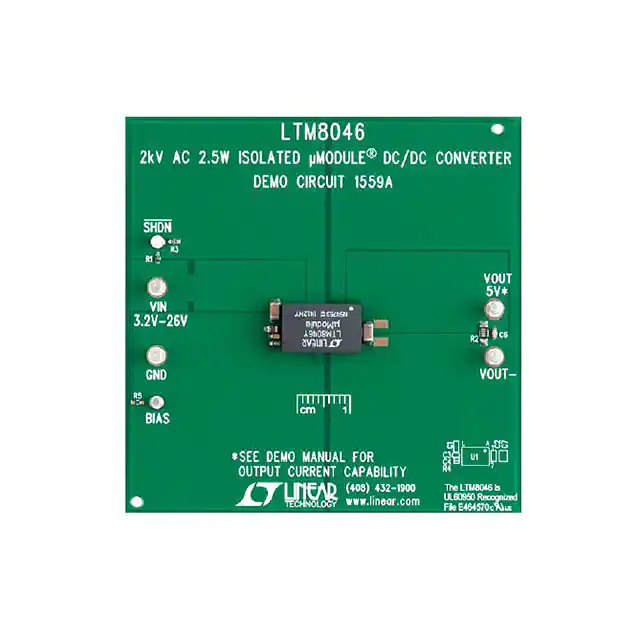

DC1559AEVAL BOARD FOR LTM8046 |
2,515 | - |
|
Datasheet | µModule® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 550mA | 3.2V ~ 26V | - | - | Board(s) | LTM8046 |
|

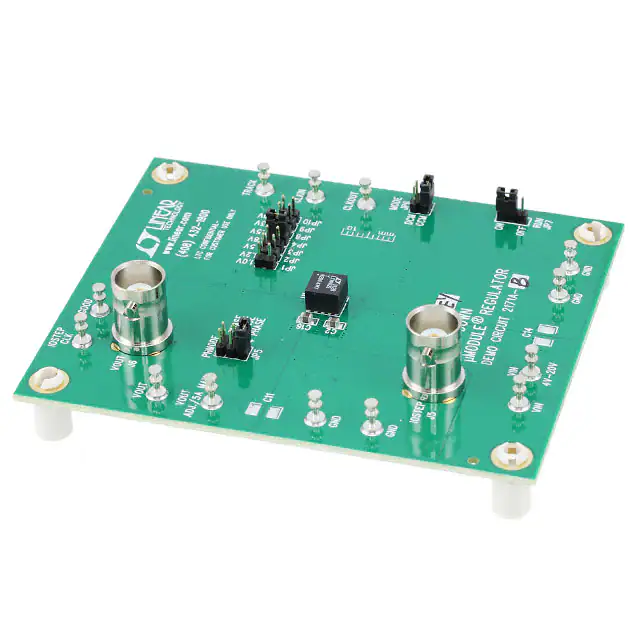

DC2171A-BEVAL BOARD FOR LTM4625 |
3,802 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4625 |
|
DC1987AEVAL BOARD FOR LTM8057 |
2,465 | - |
|
Datasheet | µModule® | Box | Active | DC/DC Converter | 1 Isolated Output | - | 5V | 350mA | 4.5V ~ 29V | Flyback | - | Board(s) | LTM8057 |
|

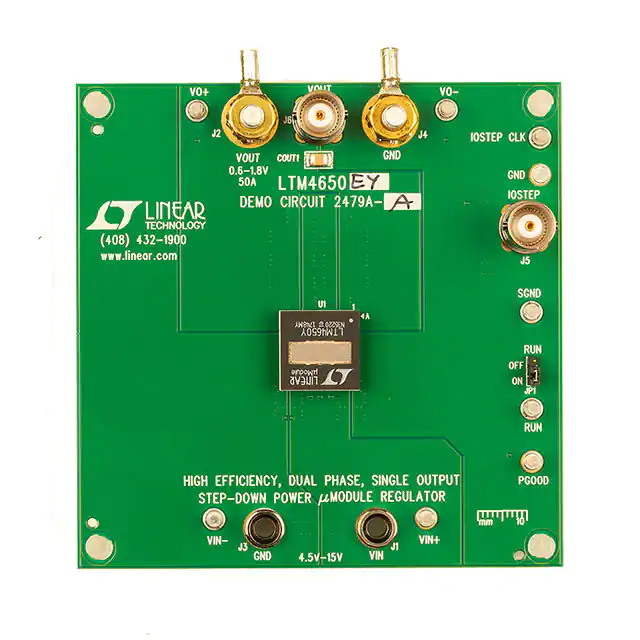

DC2479A-AEVAL BOARD FOR LTM4650 |
3,922 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650 |
|
DC2479A-BEVAL BOARD FOR LTM46501 |
3,215 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 50A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
|

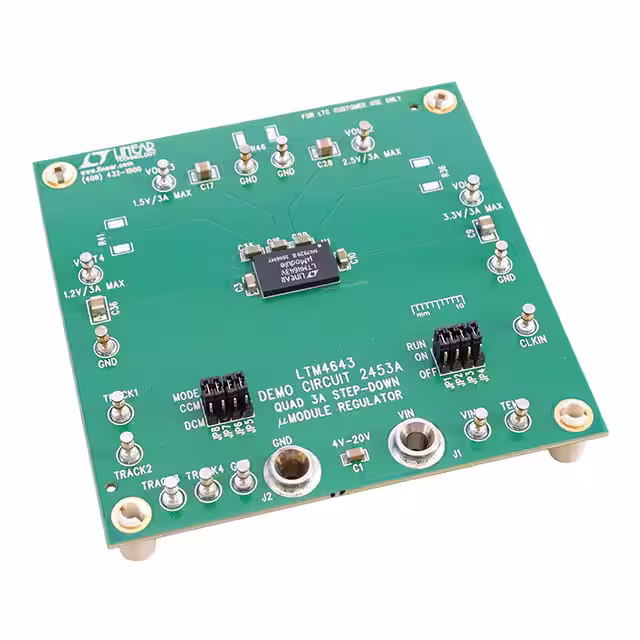

DC2453AEVAL BOARD FOR LTM4643 |
3,308 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.5V, 2.5V, 3.3V | 3A, 3A, 3A, 3A | 4V ~ 20V | Buck | 1.2MHz | Board(s) | LTM4643 |
|

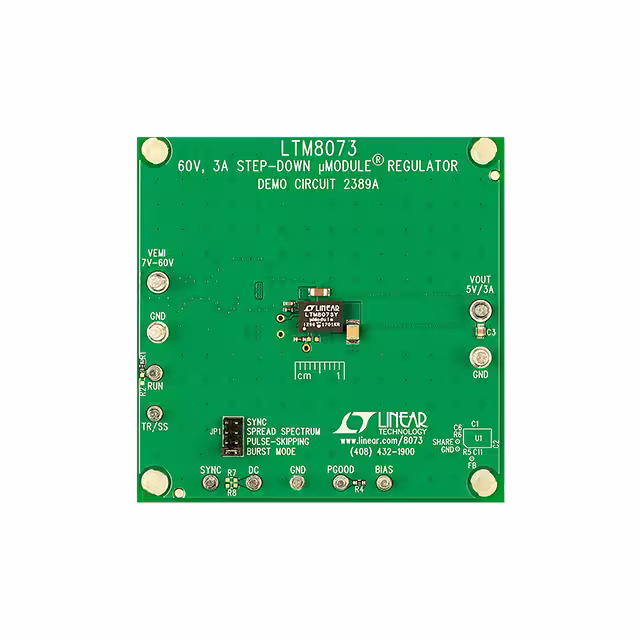

DC2389AEVAL BOARD FOR LTM8073 |
1,896 | - |
|
Datasheet | Silent Switcher®, µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 7V ~ 60V | Buck | 1.2MHz | Board(s) | LTM8073 |
|

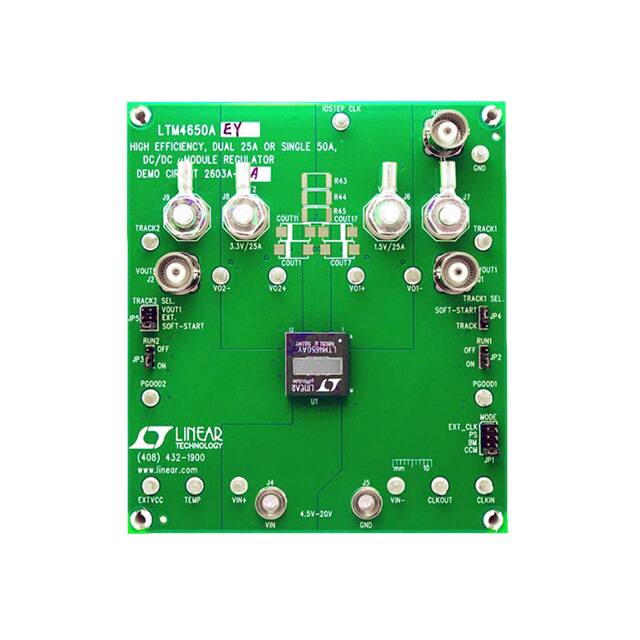

DC2603A-AEVAL BOARD FOR LTM4650AEY1 |
2,558 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 5.5V | 25A, 25A | 4.5V ~ 16V | Buck | 250kHz ~ 780kHz | Board(s) | LTM4650AEY-1 |
|

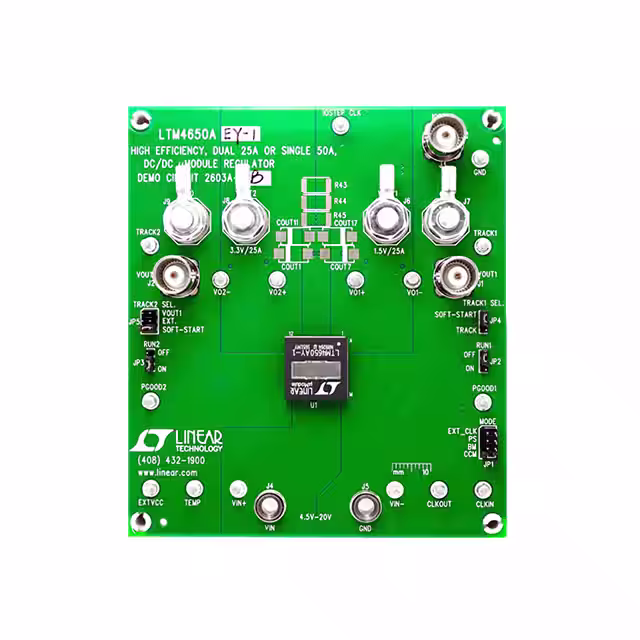

DC2603A-BEVAL BOARD FOR LTM4650AEY1 |
2,102 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 0.6V ~ 5.5V | 25A, 25A | 4.5V ~ 16V | Buck | 250kHz ~ 780kHz | Board(s) | LTM4650AEY-1 |
|

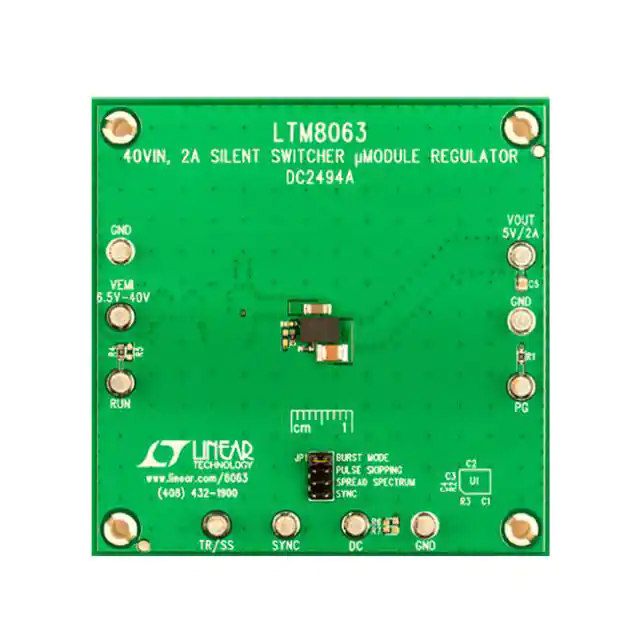

DC2494AEVAL BOARD FOR LTM8063 |
1,837 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 6.5V ~ 40V | Buck | 1.4MHz | Board(s) | LTM8063 |
|

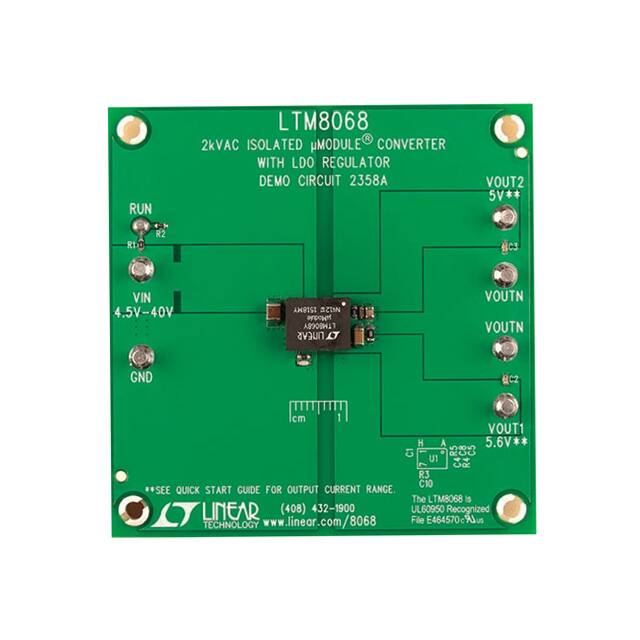

DC2358AEVAL BOARD FOR LTM8068 |
1,880 | - |
|
Datasheet | µModule® | Box | Active | DC/DC Converter with LDO | 2 Isolated Outputs | - | 5V, 5.6V | 450mA, 300mA | 4.5V ~ 40V | Flyback | - | Board(s) | LTM8068 |
|

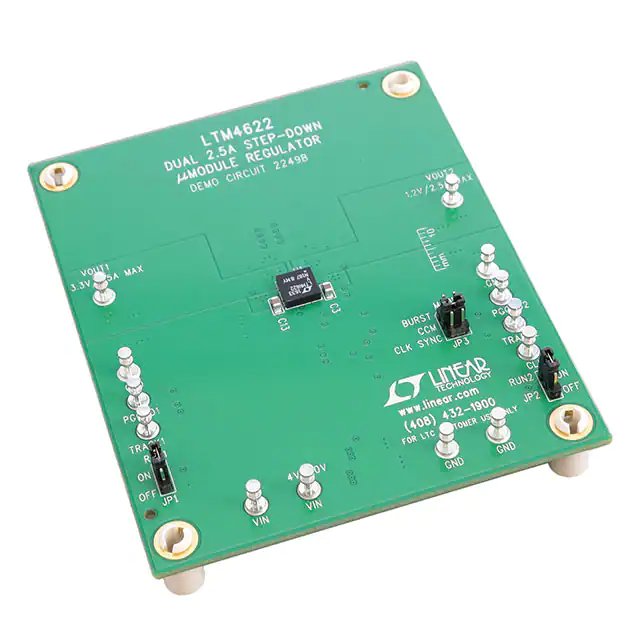

DC2249BEVAL BOARD FOR LTM4622 |
2,891 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 3.3V | 2.5A, 2.5A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4622 |
|

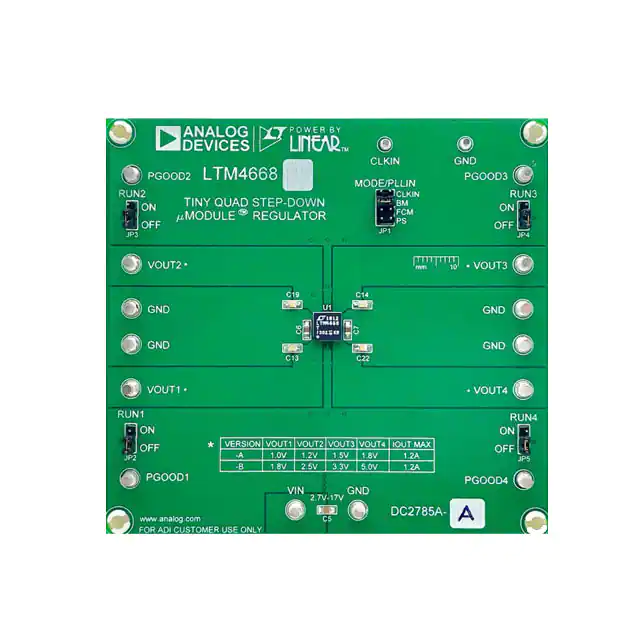

DC2785A-AEVAL BOARD FOR LTM4668 |
3,813 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1V, 1.2V, 1.5V, 1.8V | 1.2A | 2.7V ~ 17V | Buck | 1MHz | Board(s) | LTM4668 |
|
DC2570ALTM4678EY DEMO BOARD DUAL 25A/SI |
1,393 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 50A | 4.5V ~ 16V | Buck | - | Board(s) | - |
|

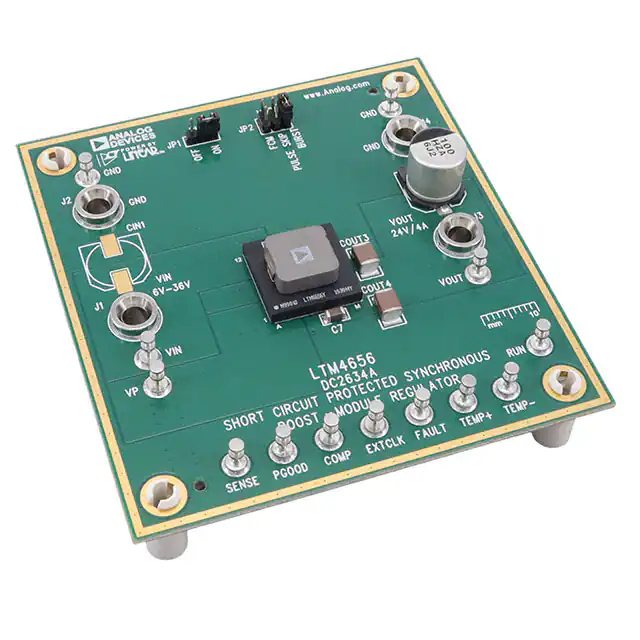

DC2634AEVAL BOARD FOR LTM4656 |
2,529 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 6V ~ 36V | 4A | 4.5V ~ 28V | Boost | - | Board(s) | LTM4656 |
|

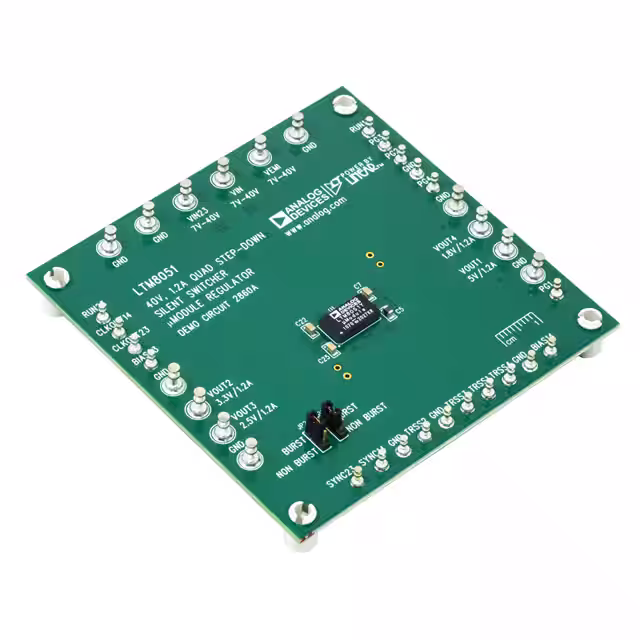

DC2860AEVAL BOARD FOR LTM8051 |
3,463 | - |
|
Datasheet | Silent Switcher®, µModule® | Bulk | Active | DC/DC, Step Down | 4 Isolated Outputs | - | 1.8V, 2.5V, 3.3V, 5V | 1.2A, 1.2A, 1.2A, 1.2A | 7V ~ 40V | Boost | - | Board(s) | LTM8051 |
|

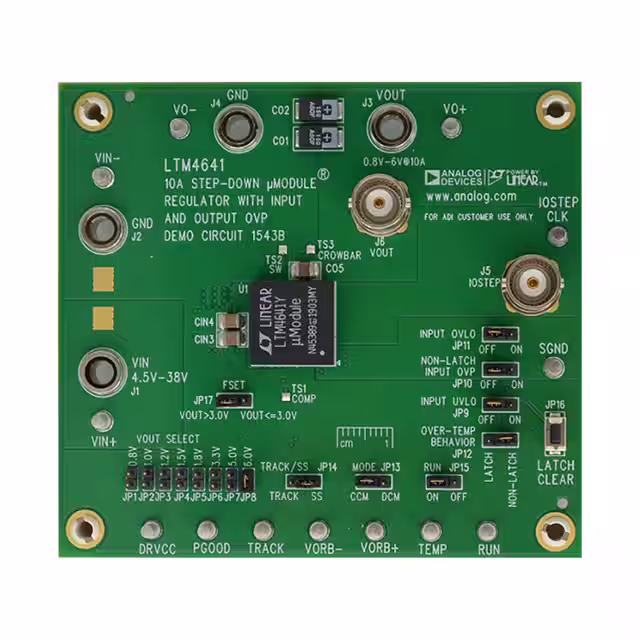

DC1543BEVAL BOARD FOR LTM4641 |
4,729 | - |
|
Datasheet | µModule® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V, 1V, 1.2V, 1.5V, 1.8V, 3.3V, 5V or 6V | 10A | 4.5V ~ 38V | Buck | - | Board(s) | LTM4641 |
|

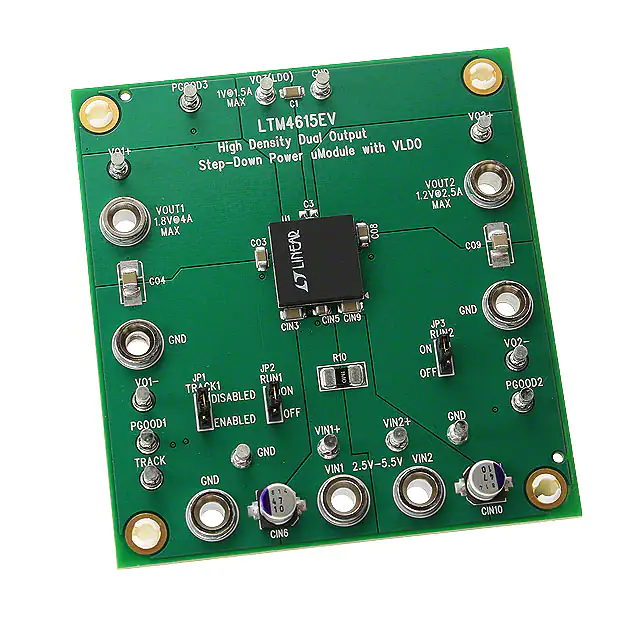

DC1367AEVAL BOARD FOR LTM4615 |
1,602 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down with LDO | 3 Non-Isolated Outputs | - | 1V, 1.2V, 1.8V | 4A, 2.5A, 1.5A | 2.5V ~ 5.5V | Buck | 1.25MHz | Board(s) | LTM4615 |
|
DC1297BEVAL BOARD FOR LTM4612 |
4,557 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V, 5V, 12V | 5A | 5V ~ 36V | Buck | 850kHz | Board(s) | LTM4612 |
|
DC2171A-AEVAL BOARD FOR LTM4623 |
4,981 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V, 3.3V or 5V | 3A | 4V ~ 20V | Buck | 1MHz | Board(s) | LTM4623 |
