DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RDK-506EVAL BOARD FOR LNK3204D |
4,011 | - |
|
Datasheet | LinkSwitch®-TN2 | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 1.44 W | 12V | 120mA | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK3204D |
|
RDK-659EVAL BOARD FOR INN3268C |
4,123 | - |
|
Datasheet | InnoSwitch™3-CP | Box | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | 30 W | 5.1V | 6A | 180 ~ 265 VAC | Flyback | - | Board(s) | INN3268C |
|
RDK-669EVAL BOARD FOR LNK625 |
3,586 | - |
|
Datasheet | LinkSwitch®-CV | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 5 W | 5V | 1A | 85 ~ 265 VAC | Flyback | - | Board(s) | LNK625 |
|
RDK-641EVAL BOARD FOR INNOSWITCH3PRO |
4,255 | - |
|
Datasheet | PowiGaN™, InnoSwitch™3-Pro | Box | Active | AC/DC, Primary and Secondary Side | 1 Isolated Output | - | 3V ~ 8V, 8V ~ 20V | 5A | 85 ~ 265 VAC | Flyback | 50Hz ~ 60Hz | Board(s) | InnoSwitch3-Pro |
|
RDK-840QEVAL BOARD FOR INN3977CQ |
1,955 | - |
|
Datasheet | InnoSwitch™3-AQ | Box | Active | DC/DC Converter | 1 Non-Isolated Output | 30 W | 12V | 2.5A | 30V ~ 550V | Flyback | - | Board(s) | INN3977CQ |
|
RDK-737EVAL BOARD FOR LNK3294 |
4,009 | - |
|
Datasheet | LinkSwitch®-TN2 | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | 1.44 W | 12V | 120mA | 85 ~ 440 VAC | Buck | - | Board(s) | LNK3294 |
|
RDK-706EVAL BOARD FOR TOP267VG |
1,180 | - |
|
Datasheet | TOPSwitch®-JX | Box | Active | AC/DC Converter | 2 Isolated Outputs | 26.5 W | 5V, 12V | 2A, 500mA | 90 ~ 265 VAC | Flyback | - | Board(s) | TOP267VG |
|
RDK-295EVAL BOARD FOR TNY290 |
1,714 | - |
|
Datasheet | TinySwitch®-4 | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 20 W | 5V | 4A | 90 ~ 295 VAC, 110V ~ 420V | Flyback | - | Board(s) | TNY290 |
|
RDK-747EVAL BOARD FOR INN3679C |
1,621 | - |
|
Datasheet | InnoSwitch™3-EP | Box | Active | AC/DC, Primary and Secondary Side | 1 Non-Isolated Output | 65 W | 20V | 3.25A | 90 ~ 265 VAC | Flyback | - | Board(s) | INN3679C |
|
RDK-877EVAL BOARD FOR LNK3306D |
1,962 | - |
|
Datasheet | LinkSwitch®-TNZ | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 6 W | 12V | 500mA | 90 ~ 305 VAC | Flyback | - | Board(s) | LNK3306D |
|
|
RDK-710EVAL BOARD FOR INN3074M |
3,949 | - |
|
Datasheet | - | Box | Active | AC/DC Converter | 2 Isolated Outputs | 12 W | 5V, 12V | 1.4A, 420mA | 85 ~ 265 VAC | Flyback | - | Board(s) | INN3074M |
|
|
RDK-734EVAL BOARD FOR LNK6407D |
4,858 | - |
|
Datasheet | LinkSwitch™-3 | Box | Active | AC/DC Converter | 1 Isolated Output | 8.4 W | 12V | 700mA | 90 ~ 265 VAC | Flyback | 77.5kHz | Board(s) | LNK6407D |
|
|
RDK-707QEVAL BOARD FOR LNK3209GQ |
3,445 | - |
|
Datasheet | LinkSwitch®-TN2Q | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 15V | - | 30V ~ 550V | Buck | - | Board(s) | LNK3209GQ |
|

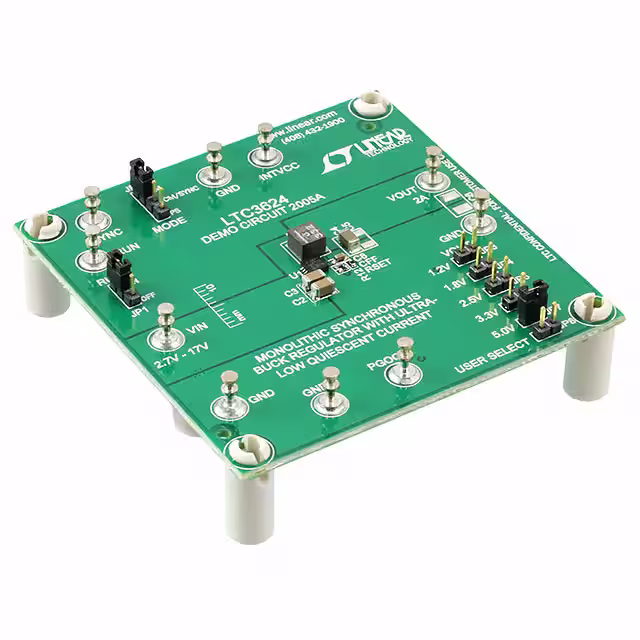

DC2005AEVAL BOARD FOR LTC3624 |
2,066 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 2.7V ~ 17V | Buck | 1MHz | Board(s) | LTC3624 |
|
DC2504AEVAL BOARD FOR LT8630 |
1,845 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 12V | 600mA | 13V ~ 100V | Buck | - | Board(s) | LT8630 |
|
EVAL-PSR01B-35WEVAL BOARD HVLED001B STF10LN80K5 |
4,873 | - |
|
Datasheet | - | Bulk | Active | AC/DC, Primary Side | 1 Isolated Output | 35 W | 48V | 730mA | 90 ~ 265 VAC | Flyback | - | Board(s) | HVLED001B, STF10LN80K5 |
|
NCP3063DFBSTGEVBEVAL BOARD FOR NCP3063 |
1,653 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 24V | 350mA | 12V | Boost | - | Board(s) | NCP3063 |
|

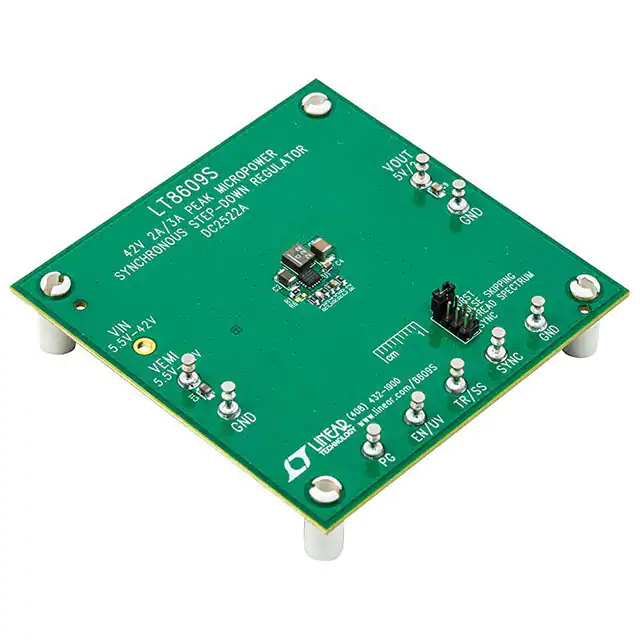

DC2522AEVAL BOARD FOR LT8609S |
3,826 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8609S |
|

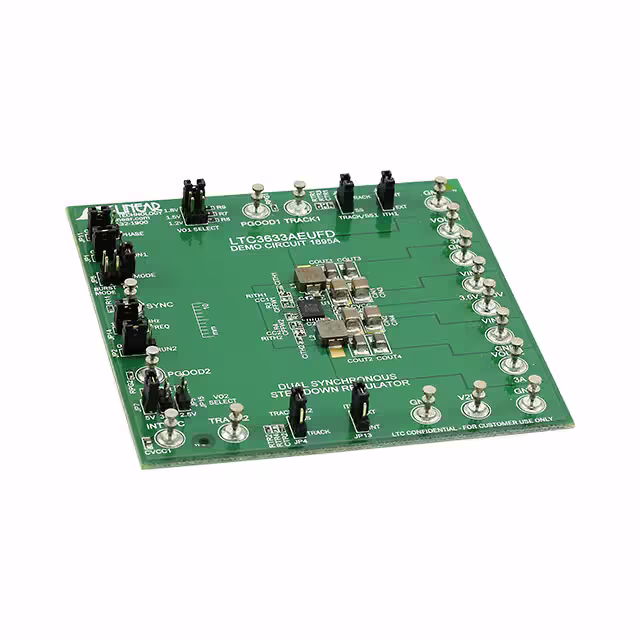

DC1895AEVAL BOARD FOR LTC3633A |
4,927 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | - | 3A, 3A | 3.6V ~ 20V | Buck | - | Board(s) | LTC3633A |
|
|
DC2822AEVAL BOARD FOR LT8618 |
2,679 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 100mA | 5.5V ~ 60V | Buck | 2MHz | Board(s) | LT8618 |
