DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

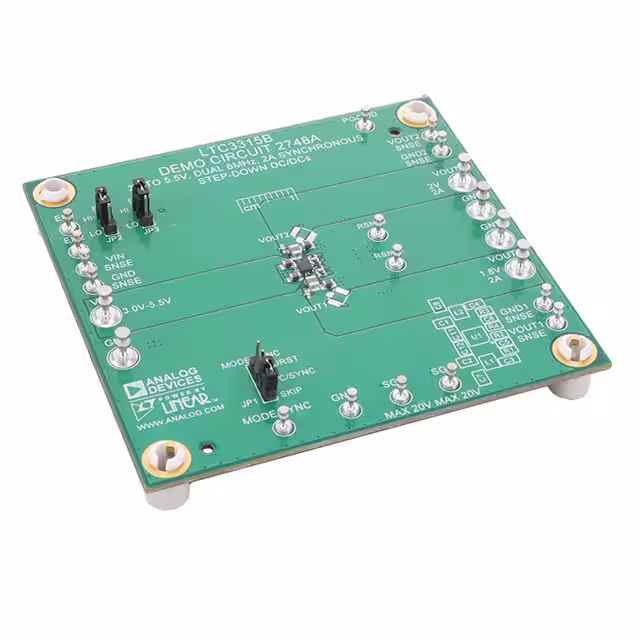

DC2748AEVAL BOARD FOR LTC3315B |
1,612 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2V | 2A | 2.25V ~ 5.5V | Buck | 6.45MHz | Board(s) | LTC3315B |
|

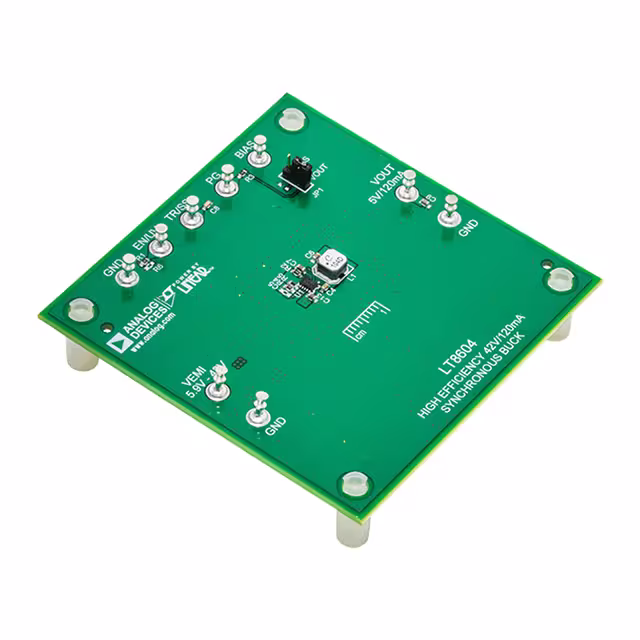

EVAL-LT8604-AZEVAL BOARD FOR LT8604 |
3,025 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.85V ~ 5.15V | 120mA | 5.9V ~ 42V | Buck | 700kHz | Board(s) | LT8604 |
|

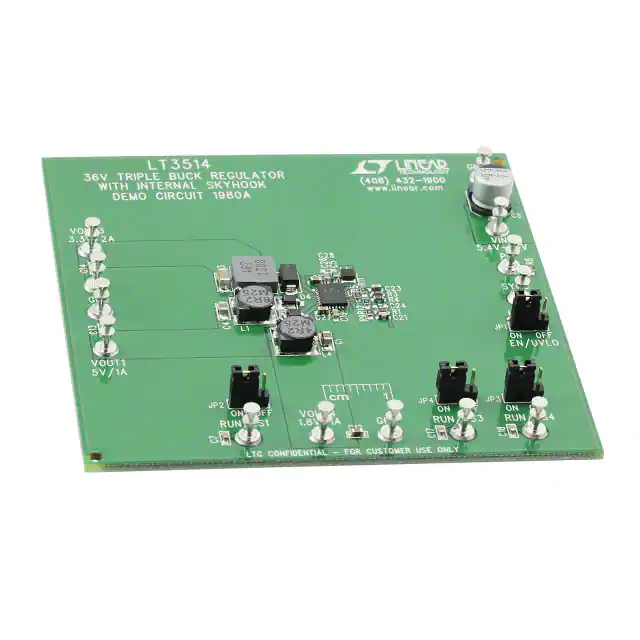

DC1980AEVAL BOARD FOR LT3514 |
4,148 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 3 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V | 2A, 1A, 1A | 5.4V ~ 36V | Buck | 1MHz | Board(s) | LT3514 |
|

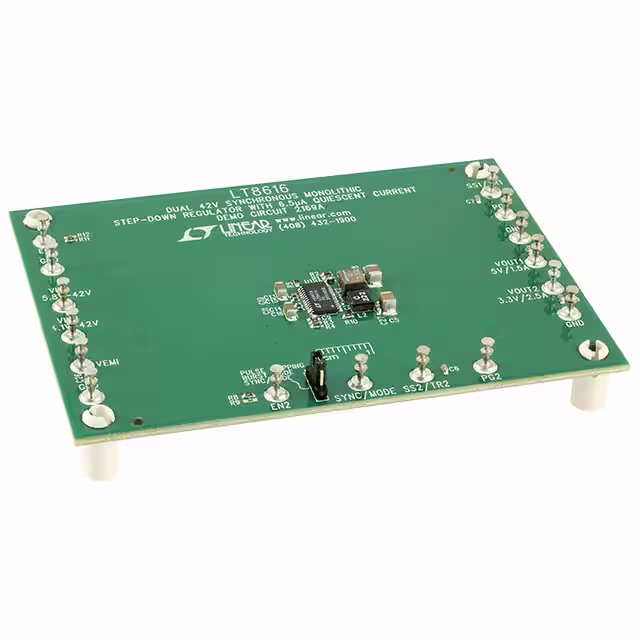

DC2169AEVAL BOARD FOR LT8616 |
1,542 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 2.5A, 1.5A | 4.1V ~ 42V | Buck | 2.05MHz | Board(s) | LT8616 |
|

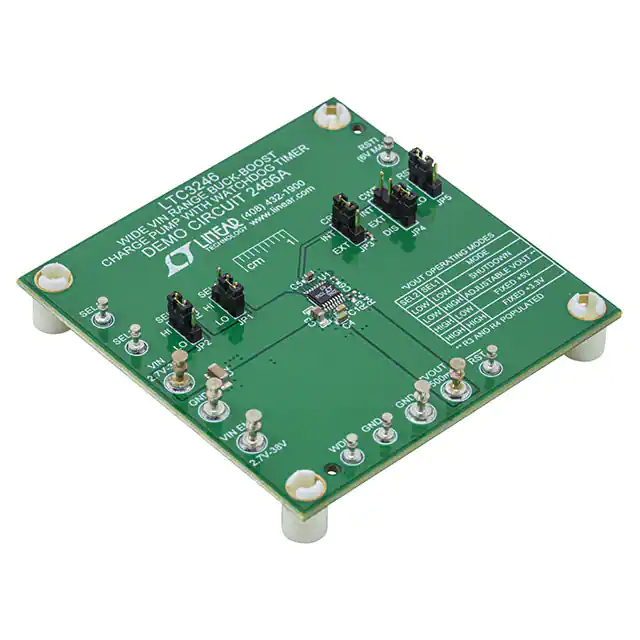

DC2466AEVAL BOARD FOR LTC3246 |
2,268 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 1.1V, 3.3V or 5V | 500mA | 2.7V ~ 38V | Buck-Boost | - | Board(s) | LTC3246 |
|

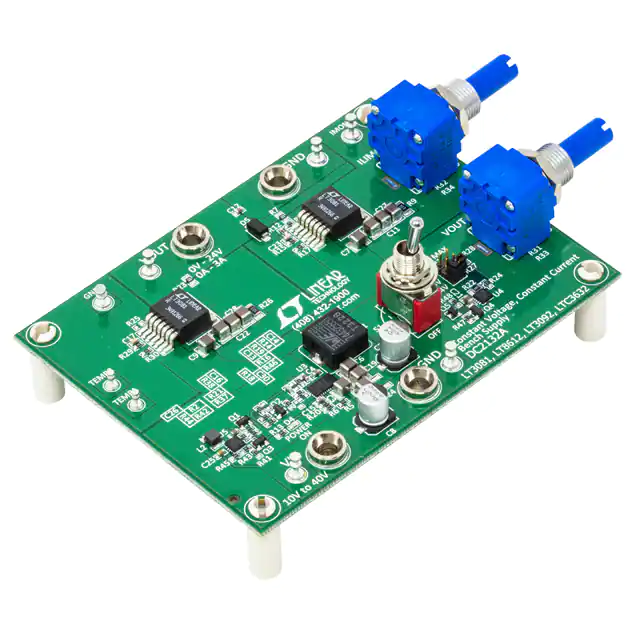

DC2132AEVAL BOARD LT3081 LT3092 LT8612 |
1,714 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down with LDO | 1 Non-Isolated Output | - | 0V ~ 24V | 3A | 10V ~ 40V | Buck | 700kHz | Board(s) | LT3081, LT3092, LT8612 |
|

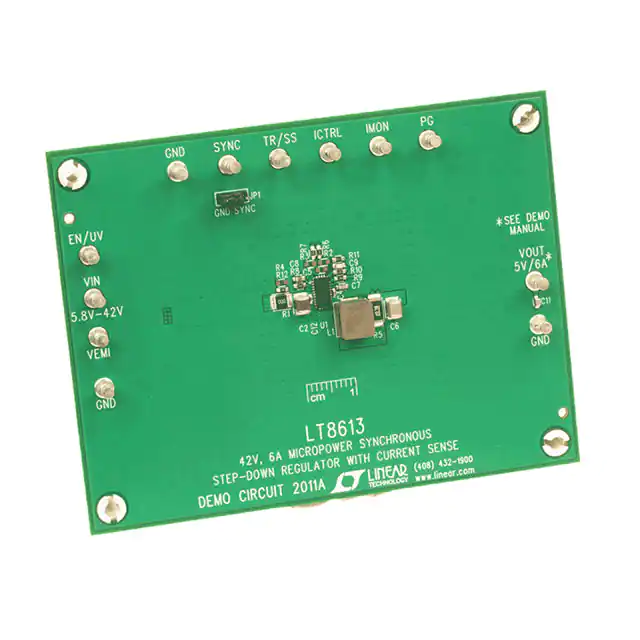

DC2011AEVAL BOARD FOR LT8613 |
4,764 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 6A | 5.8V ~ 42V | Buck | 700kHz | Board(s) | LT8613 |
|
DC1949AEVAL BOARD FOR LT8602 |
1,682 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 4 Non-Isolated Outputs | - | 1.2V, 1.8V, 3.3V, 5V | 2.5A, 1.8A, 1.8A, 1.5A | 5.5V ~ 42V | Buck | 2MHz | Board(s) | LT8602 |
|

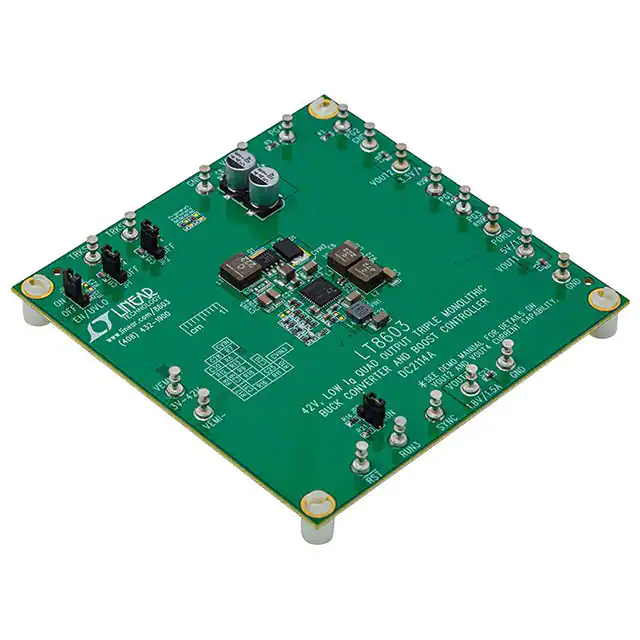

DC2114AEVAL BOARD FOR LT8603 |
1,115 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 4 Non-Isolated Outputs | - | 1.8V, 3.3V, 5V, 8V | 2.5A, 1.8A, 1.5A, 1.5A | 3V ~ 42V | Boost, Buck | - | Board(s) | LT8603 |
|

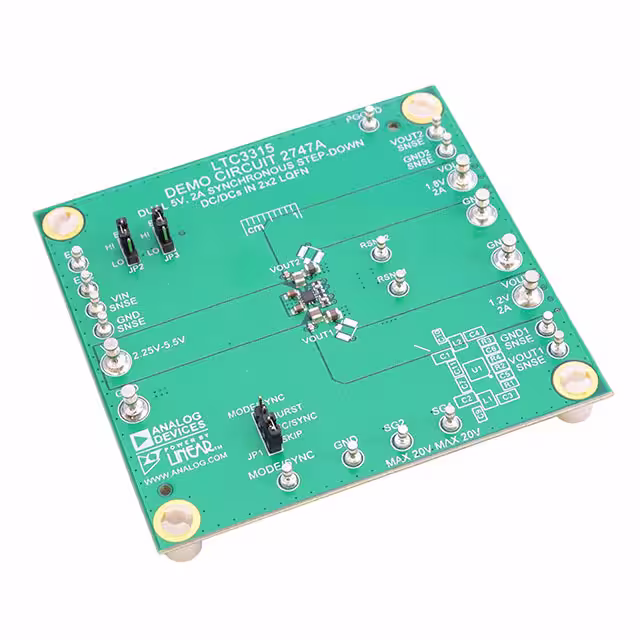

DC2747AEVAL BOARD FOR LTC3315A |
3,532 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.2V, 1.8V | 2A, 2A | 2.25V ~ 5.5V | Buck | 2MHz | Board(s) | LTC3315A |
|
DC1992AEVAL BOARD FOR LT8620 |
4,597 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2A | 5.5V ~ 65V | Buck | 2MHz | Board(s) | LT8620 |
|
DC1237A-AEVAL BOARD FOR LTC35271 |
1,289 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 5V | - | 0.7V ~ 5.5V | Boost | 1.2MHz, 2.2MHz | Board(s) | LTC3527-1 |
|

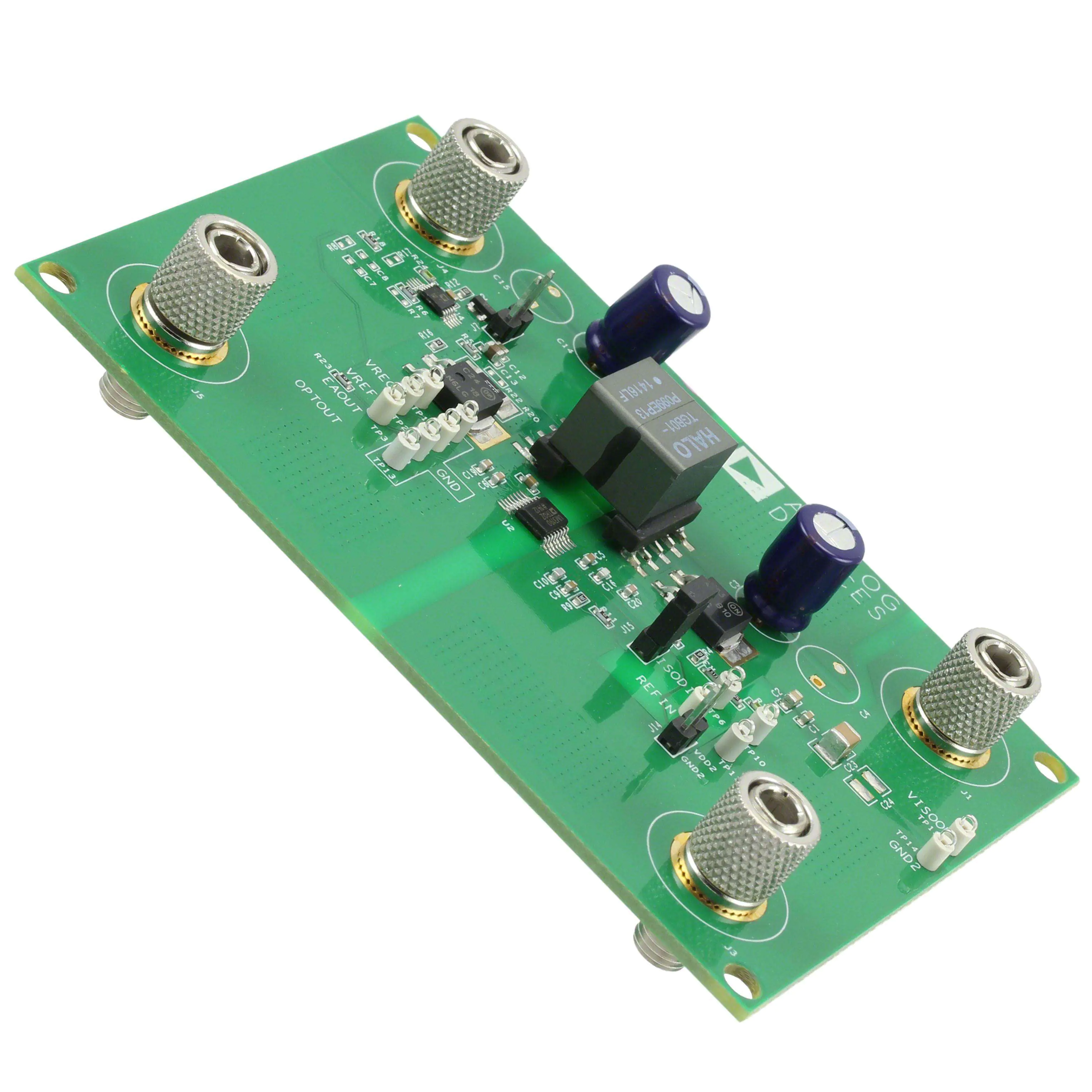

EVAL-CN0342-EB1ZEVAL BOARD FOR ADP1621 ADUM3190 |
1,314 | - |
|
Datasheet | Circuits from the Lab™ | Box | Active | DC/DC Isolated Power Supply | 1 Isolated Output | - | 5V | 1A | 5V ~ 24V | Flyback | - | Board(s) | ADP1621, ADuM3190 |
|
|
BD7F205EFJ-EVK-001EVAL BOARD FOR BD7F205 |
3,923 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 3 Isolated Outputs | 6 W | 6.2V, 6.2V, 16.5V | 300mA, 300mA, 100mA | 8V ~ 32V | Flyback | 363kHz | Board(s) | BD7F205 |
|
BD8306MUV-EVK-001EVAL BOARD FOR BD8306 |
4,065 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 1A | 2.8V ~ 5.5V | Buck-Boost | 1MHz | Board(s) | BD8306 |
|

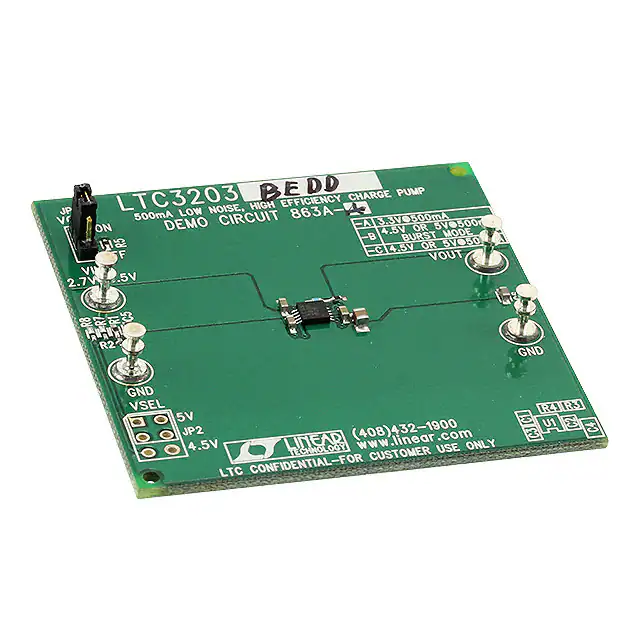

DC863A-AEVAL BOARD FOR LTC3203B |
2,977 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V | 500mA | 2.7V ~ 5.5V | Boost | 900kHz, 1MHz | Board(s) | LTC3203B |
|
EV1412-0600-AEVAL BOARD FOR FS1412 |
1,544 | - |
|
Datasheet | µPOL™ | Bulk | Active | DC/DC Converter | 1 Non-Isolated Output | - | 1V | 12A | 12V | - | 1MHz | Board(s) | FS1412 |
|
EV1403-5000-AEVAL BOARD FOR FS1403 |
4,371 | - |
|
Datasheet | µPOL™ micro-POL | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 12V | Buck | 1.3MHz | Board(s) | FS1403 |
|
EV1406-1800-AEVAL BOARD FOR FS1406 |
4,988 | - |
|
Datasheet | µPOL™ micro-POL | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 6A | 12V | Buck | 1.9MHz | Board(s) | FS1406 |
|
DC1658A-AEVAL BOARD FOR LTC33881 |
2,829 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V, 1.5V, 1.8V or 2.5V | 50mA | 2.7V ~ 20V | Buck | - | Board(s) | LTC3388-1 |
