DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC1053A-HEVAL BOARD FOR LTC3526LB2 |
2,226 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 100mA | 0.8V ~ 5.5V | Boost | 2MHz | Board(s) | LTC3526LB-2 |
|
DC1053A-FEVAL BOARD FOR LTC3526LB |
3,415 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | 100mA | 0.8V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3526LB |
|
DC1864AEVAL BOARD FOR LTC36212 |
1,397 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 1A | 2.7V ~ 17V | Buck | 2.25MHz | Board(s) | LTC3621-2 |
|
DC825AEVAL BOARD FOR LT1936 |
3,740 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V or 5V | 1.2A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | LT1936 |
|
DC1483AEVAL BOARD FOR LTC3535 |
4,247 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 1.8V ~ 5V | 100mA, 100mA | 0.8V ~ 5V | Boost | 1MHz | Board(s) | LTC3535 |
|
DC761A-AEVAL BOARD FOR LTC32045 |
4,133 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 5V | 150mA | 2.7V ~ 5.5V | Boost | 1.2MHz | Board(s) | LTC3204-5 |
|
DC1100AEVAL BOARD FOR LTC3803 |
2,925 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 3.3V | 3A | 18V ~ 72V | Flyback | 300kHz | Board(s) | LTC3803 |
|
DC1211A-BEVAL BOARD FOR LTC3528B |
1,228 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 1.8V, 3.3V or 5V | - | 0.7V ~ 5.5V | Boost | 1MHz | Board(s) | LTC3528B |
|
DC482AEVAL BOARD FOR LT19835 |
4,363 | - |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 100mA | 3V ~ 6V | Inverting | - | Board(s) | LT1983-5 |
|
DC877AEVAL BOARD FOR LTC35313.3 |
1,132 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up or Down | 1 Non-Isolated Output | - | 3.3V | 200mA | 1.8V ~ 5.5V | Buck-Boost | - | Board(s) | LTC3531-3.3 |
|
DC2268A-HEVAL BOARD FOR LTM46501 |
1,877 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1V, 1.5V | 25A, 25A | 4.5V ~ 15V | Buck | 500kHz | Board(s) | LTM4650-1 |
.jpg "DC2268A-I")
|
DC2268A-IEVAL BOARD FOR LTM4650A1 |
3,570 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.5V, 3.3V | 25A, 25A | 4.5V ~ 16V | Buck | 600kHz | Board(s) | LTM4650A-1 |
|
MAX1724EVKIT+EVAL BOARD FOR MAX1722 MAX1723 |
1,730 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 3.3V, 3.6V | 100mA | 0.91V ~ 3.3V | Boost | - | Board(s) | MAX1722, MAX1723, MAX1724 |
|
LM3262EVM/NOPBEVAL BOARD FOR LM3262 |
3,310 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.4V ~ 3.6V | 800mA | 2.5V ~ 5.5V | Buck | 6MHz | Board(s) | LM3262 |
|

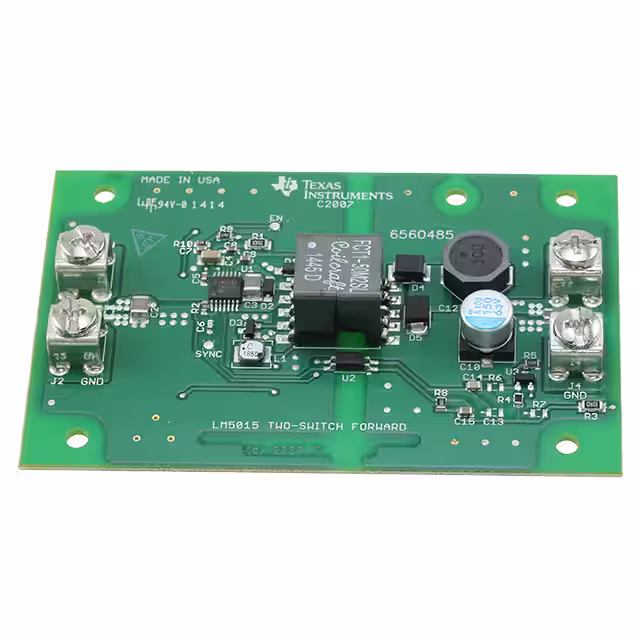

LM5015ISOEVAL/NOPBEVAL BOARD FOR LM5015 |
2,611 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Isolated Output | - | 5V | 3A | 36V ~ 72V | Buck | 300kHz | Board(s) | LM5015 |
|
MAX17558EVKIT#EVAL BOARD FOR MAX17558 |
4,953 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 3.3V, 5V | 10A, 5A | 6V ~ 60V | Buck | 350kHz | Board(s) | MAX17558 |
|

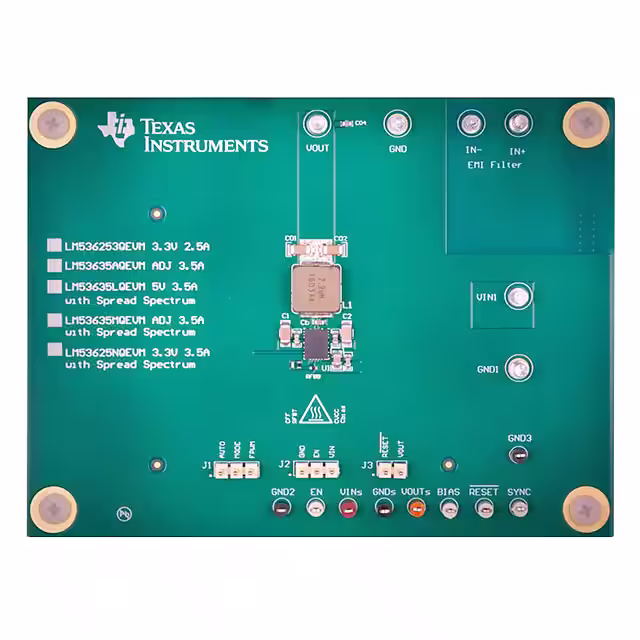

LM53635AQEVMEVAL BOARD FOR LM53635AQ1 |
1,443 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.8V ~ 36V | Buck | - | Board(s) | LM53635A-Q1 |
|
TPSM82823AEVM-127EVAL BOARD FOR TPSM82823A |
2,880 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.8V | 3A | 2.4V ~ 5.5V | Buck | 4MHz | Board(s) | TPSM82823A |
|
LM53635MQEVMEVAL BOARD FOR LM53635MQ1 |
3,200 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 3.8V ~ 36V | Buck | - | Board(s) | LM53635M-Q1 |
|
|
DC2867AEVAL BOARD FOR LT8604C |
2,019 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 4.85V ~ 5.15V | 120mA | 5.8V ~ 42V | Buck | 2MHz | Board(s) | LT8604C |
