DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Browse available DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC409AEVAL BOARD FOR LTC3402 |
3,930 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 3.3V or 5V | 850mA | 1V ~ 4.5V | Boost | 600kHz | Board(s) | LTC3402 |
|
DC801AEVAL BOARD FOR LT3483 |
3,904 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 2 Non-Isolated Outputs | - | -8V, -15V | 40mA, 30mA | 2.7V ~ 12V | Inverting | - | Board(s) | LT3483 |
|
EV1703-3300-AEVAL BOARD FOR FS1703 |
1,071 | - |
|
Datasheet | µPOL™ | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 5V | Buck | 580kHz | Board(s) | FS1703 |
|
NCP1060BUCKGEVBEVAL BOARD FOR NCP1060 |
3,793 | - |
|
Datasheet | - | Box | Active | AC/DC, Primary Side | 1 Non-Isolated Output | - | - | - | 90 ~ 265 VAC | Buck | 60kHz | Board(s) | NCP1060 |
|
CSD87384MEVM-603EVAL BOARD CSD87384M TPS51219 |
2,757 | - |
|
Datasheet | NexFET™ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 30A | 8V ~ 20V | Buck | 300kHz | Board(s) | CSD87384M, TPS51219 |
|
CSD87355Q5DEVM-820EVAL BOARD CSD87355Q5D TPS51218 |
2,173 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 25A | 8V ~ 13V | Buck | 290kHz | Board(s) | CSD87355Q5D, TPS51218 |
|
EVKT-8864EVAL BOARD FOR MP8864 |
2,474 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 4A | 4.5V ~ 21V | Buck | - | Board(s), Cable(s), Accessories | MP8864 |
|
DC2081A-AEVAL BOARD FOR LTM4630 |
2,666 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 36A | 4.5V ~ 15V | Buck | 400kHz | Board(s) | LTM4630 |
|
DC2230A-AEVAL BOARD FOR LTM4636 |
1,508 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V | 40A | 4.7V ~ 15V | Buck | 350kHz | Board(s) | LTM4636 |
|
DC1856B-BEVAL BOARD FOR LTM4649 |
1,457 | - |
|
Datasheet | µModule® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1V, 1.2V, 1.5V, 1.8V, 2.5V or 3.3V | 10A | 4.5V ~ 16V | Buck | 450kHz | Board(s) | LTM4649 |
|

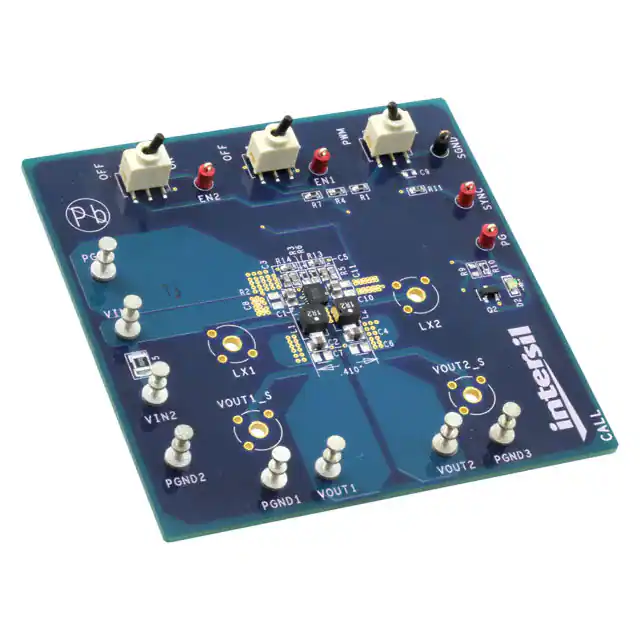

ISL8022EVAL1ZEVAL BOARD FOR ISL8022 |
2,489 | - |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 2 Non-Isolated Outputs | - | 1.8V, 2.5V | 2A, 1.7A | 2.8V ~ 5.5V | Buck | 2.25MHz | Board(s) | ISL8022 |
|
ADM00664EVAL BOARD FOR MCP1663 |
4,912 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | - | - | 2.4V ~ 5.5V | Boost | 500kHz | Board(s) | MCP1663 |
|
DC627A-AEVAL BOARD FOR LT3461 |
4,927 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Up | 1 Non-Isolated Output | - | 12V | 70mA | 3V ~ 6V | Boost | 3MHz | Board(s) | LT3461 |
|
DC828AEVAL BOARD FOR LTC3409 |
4,166 | - |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 600mA | 1.6V ~ 5.5V | Buck | 2.6MHz | Board(s) | LTC3409 |
|
DC670AEVAL BOARD FOR LT3462 |
3,324 | - |
|
Datasheet | - | Box | Active | DC/DC, Negative Inverter | 1 Non-Isolated Output | - | -5V | 100mA | 5V | SEPIC, Inverting | 1.2MHz | Board(s) | LT3462 |
|
RDK-736EVAL BOARD FOR LNK3696 |
1,570 | - |
|
Datasheet | LinkSwitch™-XT2 | Box | Active | AC/DC, Primary Side | 2 Non-Isolated Outputs | 7 W | 5V, 12V | 500mA, 200mA | 85 ~ 440 VAC | Flyback | - | Board(s) | LNK3696 |
|
RDK-866EVAL BOARD FOR LNK3307D |
3,561 | - |
|
Datasheet | LinkSwitch®-TNZ | Box | Active | AC/DC, Non-Isolated | 1 Non-Isolated Output | 2.5 W | 5V | 500mA | 90 ~ 300 VAC | Buck | - | Board(s) | LNK3307D |
|
|
RDK-874EVAL BOARD FOR LNK3302D |
2,067 | - |
|
Datasheet | LinkSwitch®-TNZ | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 6V | - | 90 ~ 305 VAC | Buck | - | Board(s) | LNK3302D |
|
RDK-462EVAL BOARD FOR LNK4023D |
4,462 | - |
|
Datasheet | LinkSwitch™-4 | Box | Active | AC/DC, Primary Side | 1 Isolated Output | 10 W | 5V | 2A | 90 ~ 265 VAC | Flyback | - | Board(s) | LNK4023D |
|
RDK-623EVAL BOARD FOR LNK3202D |
1,050 | - |
|
Datasheet | LinkSwitch®-TN2 | Box | Active | AC/DC, Non-Isolated | 2 Non-Isolated Outputs | - | 3.8V, 12V | 20mA, 20mA | 85 ~ 277 VAC | Flyback | 50Hz ~ 60Hz | Board(s) | LNK3202D |
