| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B64290P0037X087FERRITE CORE TOROID 560NH N87 |
10,290 | - |
|
Datasheet | TC6.3/3.8/2.5 | Box | Active | Toroid | - | N87 | 0.249" (6.32mm) | 560 nH | ±25% | Ungapped | - | 2200 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099" (2.52mm) | - | - |
|
B64290P0037X830FERRITE CORE TOROID 1.09UH N30 |
13,053 | - |
|
Datasheet | TC6.3/3.8/2.5 | Bulk | Active | Toroid | - | N30 | 0.249" (6.32mm) | 1.09 µH | ±25% | Ungapped | - | 4300 | 4.97 | 15.21 | 3.06 | - | 46.5 | Parylene | 0.099" (2.52mm) | - | - |
|
B66303G0000X187FERRITE CORE E N87 1PC |
23,420 | - |
|
Datasheet | E5.3/2.7/2 | Box | Active | E | E5 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.104" (2.65mm) | 0.207" (5.25mm) | 0.079" (2.00mm) |
|
B66311G0100X187FERRITE CORE E N87 |
4,485 | - |
|
Datasheet | - | Box | Active | E | E 20 x 10 x 6 | N87 | - | - | - | - | - | 2200 | 1.44 | 46.3 | 32.1 | 31.9 | 1490.0 | Uncoated | 0.398" (10.10mm) | 0.803" (20.40mm) | 0.232" (5.90mm) |
|
PLT18/10/2/S-3F36FERRITE CORE PLT 3F36 |
30,533 | - |
|
Datasheet | - | Bulk | Active | PLT | PLT 18 x 10 x 2 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.094" (2.40mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
|
PLT14/5/1.5/S-3F46FERRITE CORE PLT 3F46 |
10,831 |
1+：$1.09000 10+：$0.75800 25+：$0.65120 50+：$0.57800 100+：$0.51030 250+：$0.42824 500+：$0.37114 1800+：$0.32400 |
|
Datasheet | - | Bulk | Active | PLT | PLT 14 x 5 x 1.5 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
B66281G0000X187FERRITE CORE ELP N87 1PC |
11,987 | - |
|
Datasheet | ELP14/3.5/5 | Box | Active | ELP | ELP 14 x 3.5 x 5 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.138" (3.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
EFD20/10/7-3F46FERRITE CORE EFD 3F46 |
187 | - |
|
Datasheet | - | Bulk | Active | EFD | EFD 20 x 10 x 7 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.394" (10.00mm) | 0.787" (20.00mm) | 0.262" (6.65mm) |
|
T60006L2009W914FERRITE CORE TOROID 25.5UH |
35,134 | - |
|
Datasheet | - | Box | Active | Toroid | - | - | 0.441" (11.20mm) | 25.5 µH | - | Ungapped | - | - | - | 25.6 | 5.94 | - | - | Uncoated | 0.228" (5.80mm) | - | - |
|
B64290L0045X038FERRITE CORE TOROID 6.44UH T38 |
0 |
1+：$1.63000 10+：$1.13000 25+：$0.96800 50+：$0.85640 100+：$0.75290 250+：$0.62732 500+：$0.53986 2000+：$0.51875 |
|
Datasheet | TX16/9.6/6.3 | Bulk | Active | Toroid | - | T38 | 0.677" (17.20mm) | 6.44 µH | ±30% | Ungapped | - | 10000 | 1.95 | 38.52 | 19.73 | - | 760.0 | Epoxy | 0.287" (7.30mm) | - | - |
|
E14/3.5/5/R-3F46FERRITE CORE E 3F46 |
15,881 |
1+：$1.30000 10+：$0.90600 25+：$0.77800 50+：$0.68960 100+：$0.60780 250+：$0.50844 500+：$0.43932 1800+：$0.40012 |
|
Datasheet | - | Bulk | Active | E | E 14 x 3.5 x 5 | 3F46 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.138" (3.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
B64290L0632X830FERRITE CORE TOROID 4.16UH N30 |
6,720 | - |
|
Datasheet | TX20/10/7 | Bulk | Active | Toroid | - | N30 | 0.835" (21.20mm) | 4.16 µH | ±25% | Ungapped | - | 4300 | 1.3 | 43.55 | 33.63 | - | 1465.0 | Epoxy | 0.319" (8.10mm) | - | - |
|
B62152A0004X030FERRITE CORE 2 HOLE 10UH N30 |
4,368 | - |
|
Datasheet | MHB2-14.5/8.5/8.3 | Box | Active | Multi-Hole (2) | - | N30 | - | 10 µH | ±30% | Ungapped | - | 4300 | 0.54 | 15.3 | 28.4 | - | 435.0 | Uncoated | 0.327" (8.30mm) | 0.571" (14.50mm) | 0.335" (8.50mm) |
|
|
E18/4/10/R-3C95FERRITE CORE E 3C95 |
4,790 |
1+：$1.49000 10+：$1.03700 25+：$0.88920 50+：$0.78720 100+：$0.69270 250+：$0.57816 500+：$0.49834 1000+：$0.46888 |
|
Datasheet | - | Bulk | Active | E | E 18 x 4 x 10 | 3C95 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.157" (4.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
|
E18/4/10/R-3F36FERRITE CORE E 3F36 |
854 | - |
|
Datasheet | - | Bulk | Active | E | E 18 x 4 x 10 | 3F36 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.157" (4.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
TX22/14/6.4-3E27FERRITE CORE TOROID 3E+27 |
2,011 |
1+：$1.62000 10+：$1.12800 25+：$0.96680 50+：$0.85520 100+：$0.75200 250+：$0.62660 504+：$0.53829 1008+：$0.51800 |
|
Datasheet | - | Bulk | Active | Toroid | TX 22 x 14 x 6.4 | 3E27 | 0.880" (22.35mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.265" (6.75mm) | - | - |
|
B62152A0007X001FERRITE CORE 2 HOLE 140NH K1 |
14,801 | - |
|
Datasheet | MHB2-7.25/4.2/6.2 | Box | Active | Multi-Hole (2) | - | K1 | - | 140 nH | ±30% | Ungapped | - | 80 | 0.75 | 7.6 | 10.2 | - | 78.0 | Uncoated | 0.244" (6.20mm) | 0.285" (7.25mm) | 0.165" (4.20mm) |
|
B66423G0000X187FERRITE CORE EFD N87 1PC |
3,593 | - |
|
Datasheet | EFD30/15/9 | Box | Active | EFD | EFD 30 x 15 x 9 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.591" (15.00mm) | 1.181" (30.00mm) | 0.358" (9.10mm) |
|

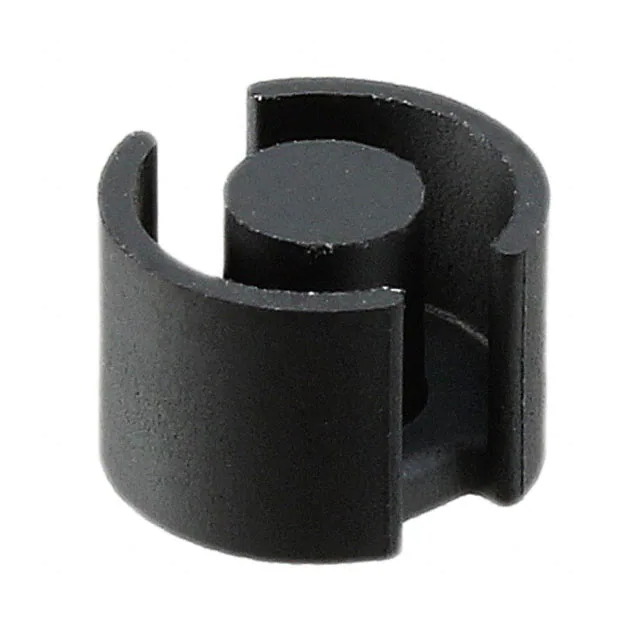

B65931C0000X033FERRITE CORE P M33 1PC |
9,842 | - |
|
Datasheet | PS5.6/3.7 | Box | Active | P (Pot Core) | PCH 5.6 x 3.7 | M33 | 0.220" (5.60mm) | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.146" (3.70mm) | - | - |
|
TX14/9/5-4C65FERRITE CORE TOROID 4C65 |
235 | - |
|
Datasheet | - | Bulk | Active | Toroid | TX 14 x 9 x 5 | 4C65 | 0.561" (14.25mm) | - | ±30% | Ungapped | - | - | 2.84 | 35.0 | 12.3 | - | 430.0 | Epoxy | 0.207" (5.25mm) | - | - |
