| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PC44PQ32/30Z-12FERRITE CORE PQ PCS44 2PC SET |
1,108 | - |
|
Datasheet | - | Tray | Active | PQ | PQ 32 x 30 | PC44 | - | - | ±25% | Ungapped | - | - | 0.464 | 47.6 | 161.0 | - | 12000.0 | Uncoated | 1.195" (30.35mm) | 1.260" (32.00mm) | 0.866" (22.00mm) |
|
B66229G0000X127FERRITE CORE E N27 1PC |
2,460 | - |
|
Datasheet | E32/16/9 | Box | Active | E | E 32 x 16 x 9 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.646" (16.40mm) | 1.260" (32.00mm) | 0.374" (9.50mm) |
|
|
PC44PQ35/35Z-12FERRITE CORE PQ PCS44 2PC SET |
1,781 | - |
|
Datasheet | - | Tray | Active | PQ | PQ 35 x 35 | PC44 | - | - | ±25% | Ungapped | - | - | 0.448 | 87.9 | 196.0 | - | 17300.0 | Uncoated | 1.368" (34.75mm) | 1.382" (35.10mm) | 1.024" (26.00mm) |
|
TX22/14/6.4-3E65FERRITE CORE TOROID |
4,581 | - |
|
Datasheet | - | Bulk | Active | Toroid | TX 22 x 14 x 6.4 | - | 0.880" (22.35mm) | - | ±30% | Ungapped | - | 5200 | 2.2 | 54.2 | 24.8 | - | 1340.0 | Epoxy | 0.265" (6.75mm) | - | - |
|
5980001801FERRITE CORE TOROID 355NH |
4,424 | - |
|
Datasheet | HF | Bulk | Active | Toroid | - | - | 0.870" (22.10mm) | 355 nH | ±25% | Ungapped | - | 550 | 207.0 | 54.2 | 26.1 | - | 1420.0 | Uncoated | 0.250" (6.35mm) | - | - |
|
B66479G0000X192FERRITE CORE EQ N92 1PC |
4,565 | - |
|
Datasheet | EQ13/9/3 | Box | Active | EQ | EQ 13 x 3 | N92 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.112" (2.85mm) | 0.504" (12.80mm) | 0.343" (8.70mm) |
|
PC95EI18/6/10-ZFERRITE COR HE 4.72UH PCS95 1SET |
4,080 | - |
|
Datasheet | Planar | Tray | Active | HE, PLT | EI 18 x 6 x 10 | PC95 | - | 4.72 µH | ±25% | Ungapped | - | - | 0.51 | 40.0 | 20.3 | 40.0 | 811.0 | Uncoated | 0.236" (6.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
TX22/14/13-3E65FERRITE CORE TOROID |
1,708 | - |
|
Datasheet | - | Bulk | Active | Toroid | TX 22 x 14 x 13 | - | 0.880" (22.35mm) | - | ±30% | Ungapped | - | 10300 | 1.07 | 54.2 | 50.9 | - | 2750.0 | Epoxy | 0.510" (12.95mm) | - | - |
|
RM7/I-3C90FERRITE CORE RM 3C90 2PC SET |
3,298 | - |
|
Datasheet | - | Bulk | Active | RM | RM 7 | 3C90 | - | - | - | Ungapped | - | - | 0.68 | 30.0 | 44.1 | 39.6 | 1325.0 | Uncoated | 0.528" (13.40mm) | 0.799" (20.30mm) | 0.677" (17.20mm) |
|

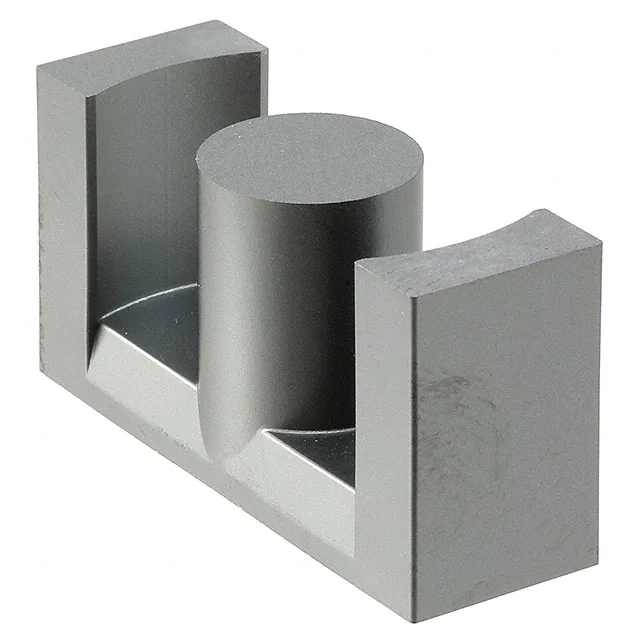

B66367G0500X127FERRITE CORE ETD N27 1PC |
2,368 | - |
|
Datasheet | ETD49/25/16 | Box | Active | ETD | ETD 49 x 25 x 16 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.980" (24.90mm) | 1.909" (48.50mm) | 0.657" (16.70mm) |
|
TX25/15/10-3E6FERRITE CORE TOROID |
4,948 | - |
|
Datasheet | - | Bulk | Active | Toroid | TX 25 x 15 x 10 | - | 1.007" (25.95mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.429" (10.90mm) | - | - |
|
PC95ELT20X7.7-ZFERRITE CORE ELH 5.63UH 1SET |
4,634 | - |
|
Datasheet | Planar | Tray | Active | ELH, PLT | ELT 20 x 7.7 | PC95 | - | 5.63 µH | ±25% | Ungapped | - | - | 0.47 | 54.6 | 25.6 | 52.9 | 1400.0 | Uncoated | 0.230" (5.84mm) | 0.787" (20.00mm) | 0.630" (16.00mm) |
|
B66482K0000X197FERRITE CORE I N97 1PC |
3,329 | - |
|
Datasheet | I23/2/13 | Tray | Active | I | I 23 x 2 x 13 | N97 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.083" (2.10mm) | 0.913" (23.20mm) | 0.492" (12.50mm) |
|
PC95PQI20/9Z-12FERRITE CORE HPQ 7.07UH 1SET |
3,544 | - |
|
Datasheet | Planar | Tray | Active | HPQ, PQD | PQI 20 x 9 | PC95 | - | 7.07 µH | ±25% | Ungapped | - | - | 0.35 | 66.0 | 22.9 | 59.3 | 1510.0 | Uncoated | 0.236" (6.00mm) | 0.807" (20.50mm) | 0.551" (14.00mm) |
|
B64290L0657X830FERRITE CORE TOROID 4.54UH N30 |
1,742 | - |
|
Datasheet | TX30/20/12.5 | Box | Active | Toroid | - | N30 | 1.264" (32.10mm) | 4.54 µH | ±25% | Ungapped | - | 4300 | 1.19 | 77.02 | 64.66 | - | 4980.0 | Epoxy | 0.531" (13.50mm) | - | - |
|
B66329G0000X127FERRITE CORE E N27 1PC |
1,724 | - |
|
Datasheet | E42/21/20 | Box | Active | E | E 42 x 21 x 20 | N27 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.787" (20.00mm) |
|
B66329G1000X127FERRITE CORE E N27 1PC |
2,396 | - |
|
Datasheet | E42/21/20 | Box | Active | E | E 42 x 21 x 20 | N27 | - | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.835" (21.20mm) | 1.654" (42.00mm) | 0.787" (20.00mm) |
|
TX36/23/15-3E10-MFERRITE CORE TOROID |
1,805 | - |
|
Datasheet | - | Bulk | Active | Toroid | TX 36 x 23 x 15 | - | 1.463" (37.15mm) | - | ±30% | Ungapped | 10000.0 | - | 0.919 | 89.7 | 97.5 | - | 8740.0 | Epoxy | 0.630" (16.00mm) | - | - |
|
PQ26/20-3C97FERRITE CORE PQ 3C97 2PC SET |
4,840 | - |
|
Datasheet | - | Bulk | Active | PQ | PQ 26 x 20 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.795" (20.20mm) | 1.075" (27.30mm) | 0.748" (19.00mm) |
|
|
PQ26/25-3C97FERRITE CORE PQ 3C97 2PC SET |
1,785 | - |
|
Datasheet | - | Bulk | Active | PQ | PQ 26 x 25 | 3C97 | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.972" (24.70mm) | 1.075" (27.30mm) | 0.748" (19.00mm) |
