Ferrite Cores
Browse available Ferrite Cores components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0055165A2MPP 026 PERM GREY 165 SIZE |
3,890 | - |
|
Datasheet | - | Bulk | Active | Toroid | - | MPP | 6.500" (165.10mm) | 78 nH | ±8% | Ungapped | - | 26 | - | 412.0 | 987.0 | - | 407000.0 | Uncoated | 1.250" (31.75mm) | - | - |
|
|
B62152A0027X013FERRITE CORE 2 HOLE 1.1UH M13 |
4,262 | - |
|
Datasheet | B62152 | Box | Obsolete | Multi-Hole (2) | - | M13 | - | 1.1 µH | ±30% | Ungapped | - | 2300 | 2.2 | 3.7 | 1.7 | - | 6.3 | Uncoated | 0.079" (2.00mm) | 0.142" (3.60mm) | 0.083" (2.10mm) |
|
|
B64290A0638X036FERRITE CORE TOROID |
4,641 | - |
|
Datasheet | T22.1/13.7/6.3 | Box | Active | Toroid | - | - | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | - | - | - |
|
|
B64290A0674X035FERRITE CORE TOROID T35 |
1,419 | - |
|
Datasheet | T36/23/15 | Box | Active | Toroid | R 36 x 23 x 15 | T35 | 1.417" (36.00mm) | - | - | Ungapped | - | - | 0.94 | 89.65 | 95.89 | - | 8597.0 | Uncoated | 0.591" (15.00mm) | - | - |
|
B64290P0683X010FERRITE CORE TOROID 160NH K10 |
4,171 | - |
|
Datasheet | TC3.1/1.3/1.3 | Box | Active | Toroid | - | K10 | 0.121" (3.07mm) | 160 nH | ±25% | Ungapped | - | 700 | 5.65 | 5.99 | 1.06 | - | 6.4 | Parylene | 0.051" (1.29mm) | - | - |
|

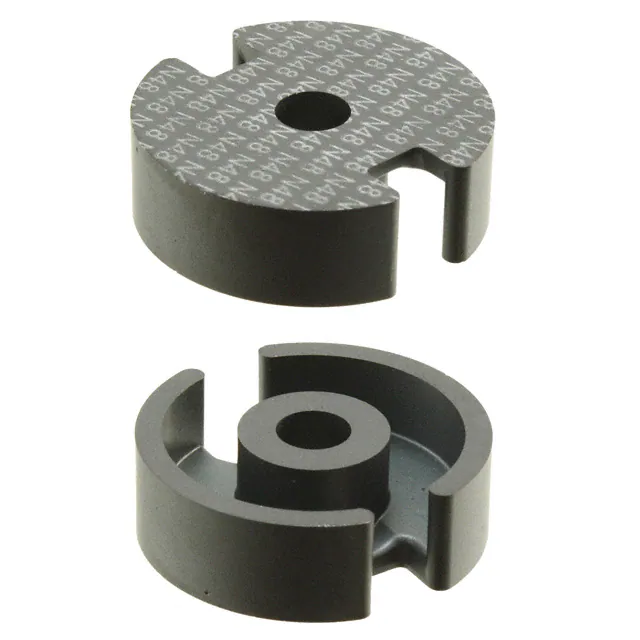

B65661D0000Y066FERRITE CORE T66 |
3,599 | - |
|
Datasheet | P22/13 | Box | Obsolete | - | P 22 x 13 | T66 | 0.866" (22.00mm) | - | - | - | - | 13000 | 0.5 | 31.6 | 63.0 | - | 1990.0 | Uncoated | 0.268" (6.80mm) | - | - |
|

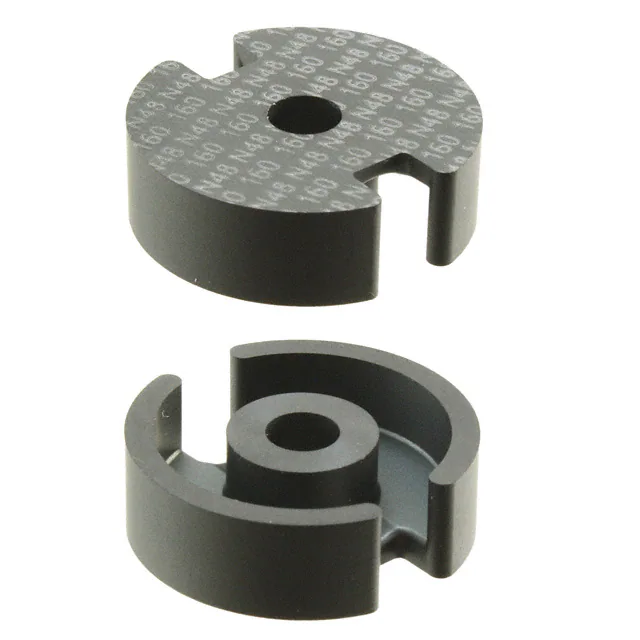

B65661T0160G048FERRITE CORE P 2PCS |
4,482 | - |
|
Datasheet | P22/13 | Box | Obsolete | P (Pot Core) | P 22 x 13 | - | 0.866" (22.00mm) | - | - | Gapped | - | - | - | - | - | - | - | Uncoated | 0.268" (6.80mm) | - | - |
|

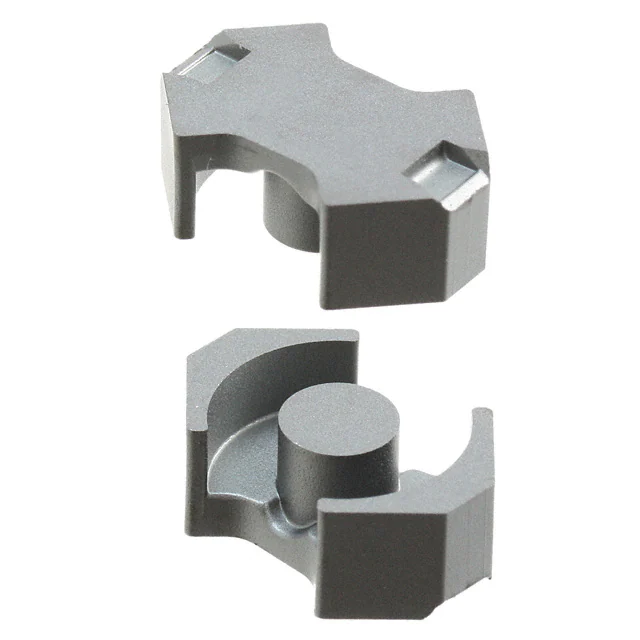

B65805J0000Y066FERRITE CORE RM 9.6UH T66 2PCS |
2,616 | - |
|
Datasheet | RM5 | Box | Obsolete | RM | RM 5 | T66 | - | 9.6 µH | -30%, +40% | Ungapped | 7090.0 | 13000 | 0.93 | 22.1 | 23.8 | 18.0 | 526.0 | Uncoated | 0.207" (5.25mm) | 0.575" (14.60mm) | 0.268" (6.80mm) |
|

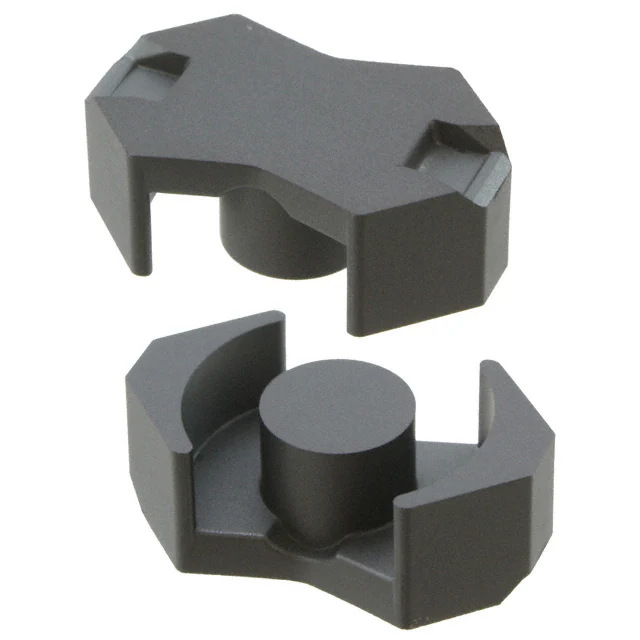

B65807J0000Y066FERRITE CORE RM 12.3UH T66 2PCS |
2,633 | - |
|
Datasheet | RM6 | Box | Obsolete | RM | RM 6 | T66 | - | 12.3 µH | -30%, +40% | Ungapped | 7650.0 | 13000 | 0.78 | 28.6 | 36.6 | 31.0 | 1050.0 | Uncoated | 0.246" (6.25mm) | 0.701" (17.90mm) | 0.323" (8.20mm) |
|

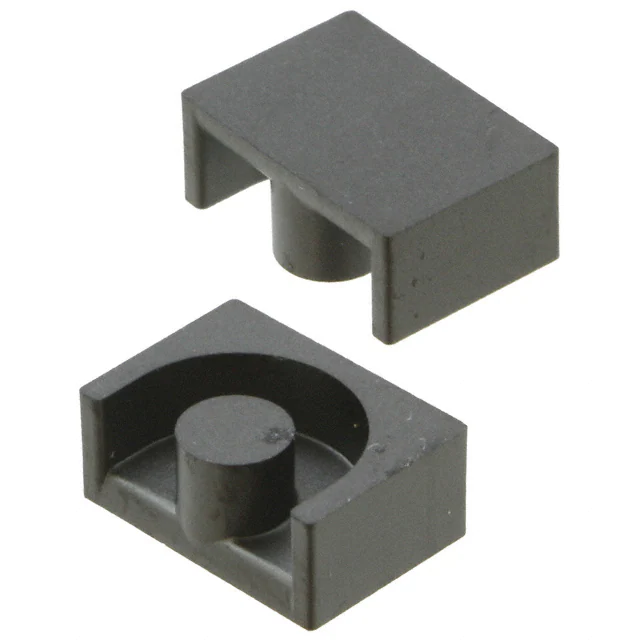

B65839A0000Y066FERRITE CORE EP 5.8UH T66 2PCS |
4,319 | - |
|
Datasheet | EP7 | Box | Obsolete | EP | EP 7 | T66 | - | 5.8 µH | -30%, +40% | Ungapped | 7040.0 | 13000 | 1.52 | 15.7 | 10.3 | 8.5 | 162.0 | Uncoated | 0.148" (3.75mm) | 0.370" (9.40mm) | 0.256" (6.50mm) |
|
B65843A0000Y066FERRITE CORE EP 8.5UH T66 2PCS |
4,695 | - |
|
Datasheet | EP13 | Box | Obsolete | EP | EP 13 | T66 | - | 8.5 µH | -30%, +40% | Ungapped | 8400.0 | 13000 | 1.24 | 24.2 | 19.5 | 14.9 | 472.0 | Uncoated | 0.256" (6.50mm) | 0.504" (12.80mm) | 0.354" (9.00mm) |
|
B65845J0000Y066FERRITE CORE EP 13UH T66 2PCS |
1,518 | - |
|
Datasheet | EP17 | Box | Obsolete | EP | EP 17 | T66 | - | 13 µH | -30%, +40% | Ungapped | 8700.0 | 13000 | 0.84 | 28.5 | 33.9 | 25.5 | 966.0 | Uncoated | 0.335" (8.50mm) | 0.724" (18.40mm) | 0.443" (11.25mm) |
|
|
B66281P0000X149FERRITE CORE ELP N49 |
4,508 | - |
|
Datasheet | - | Box | Obsolete | ELP | - | N49 | - | - | ±25% | Ungapped | 820.0 | - | - | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B66281P0000X187FERRITE CORE ELP N87 |
4,985 | - |
|
Datasheet | - | Box | Obsolete | ELP | - | N87 | - | - | ±25% | Ungapped | 1140.0 | - | - | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B66281P0000X192FERRITE CORE ELP N92 |
2,400 | - |
|
Datasheet | - | Box | Obsolete | ELP | - | N92 | - | - | ±25% | Ungapped | 820.0 | - | - | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B66281P0000X197FERRITE CORE ELP N97 |
4,048 | - |
|
Datasheet | - | Box | Obsolete | ELP | - | N97 | - | - | ±25% | Ungapped | 1190.0 | - | - | 16.7 | 14.5 | 13.9 | 242.0 | Uncoated | 0.059" (1.50mm) | 0.551" (14.00mm) | 0.197" (5.00mm) |
|
|
B66283P0000X149FERRITE CORE I 2.1UH N49 |
4,038 | - |
|
Datasheet | - | Box | Obsolete | I | I 18 x 2 x 10 | N49 | - | 2.1 µH | ±25% | Ungapped | 860.0 | 1500 | 0.51 | 20.3 | 39.5 | 38.9 | 802.0 | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|

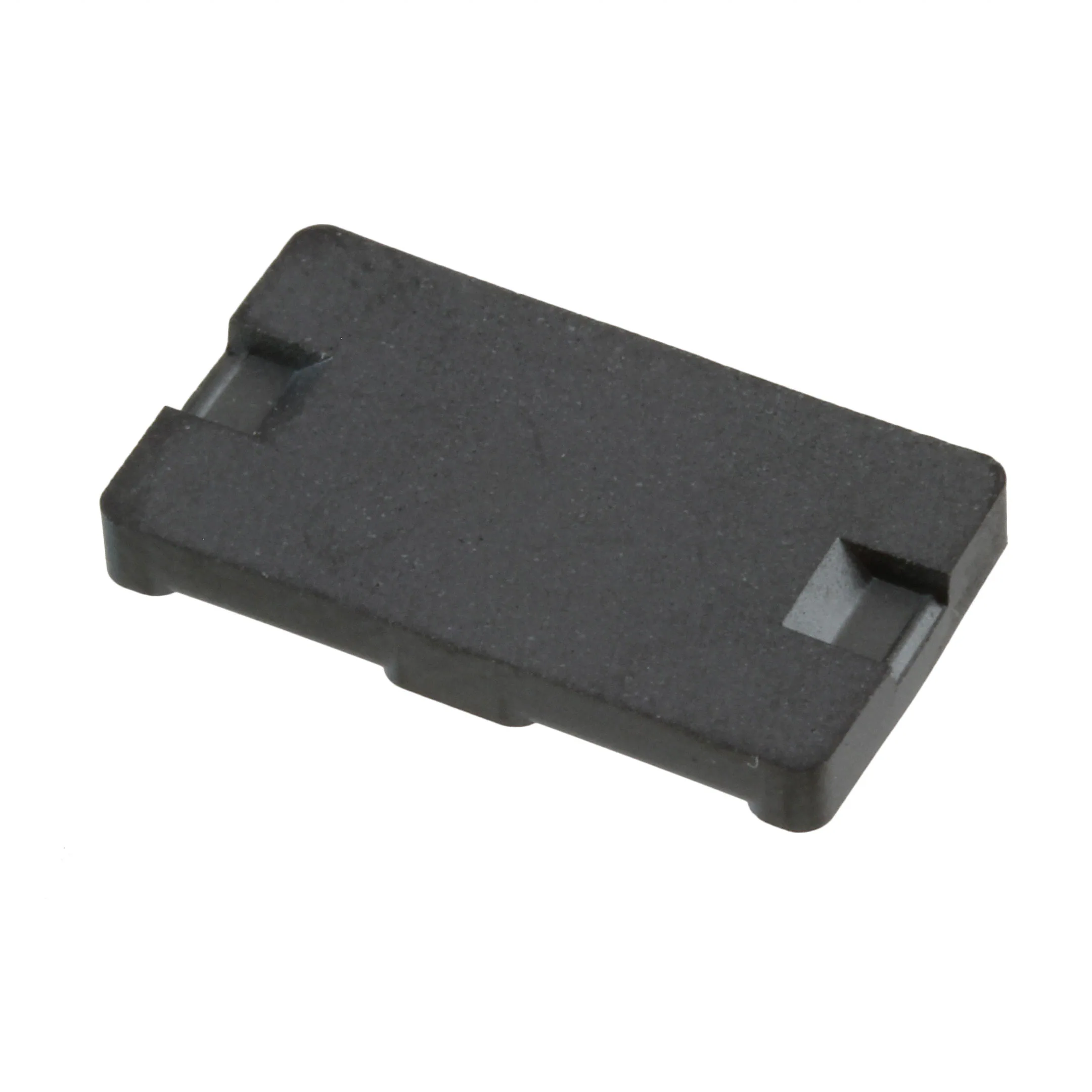

B66283P0000X187FERRITE CORE I N87 1PC |
3,047 | - |
|
Datasheet | B66283 | Box | Obsolete | I | I 18 x 2 x 10 | N87 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.157" (4.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|
|
B66283P0000X192FERRITE CORE I 2.3UH N92 |
2,121 | - |
|
Datasheet | - | Box | Obsolete | I | I 18 x 2 x 10 | N92 | - | 2.3 µH | ±25% | Ungapped | 930.0 | 1500 | 0.51 | 20.3 | 39.5 | 38.9 | 802.0 | Uncoated | 0.079" (2.00mm) | 0.709" (18.00mm) | 0.394" (10.00mm) |
|

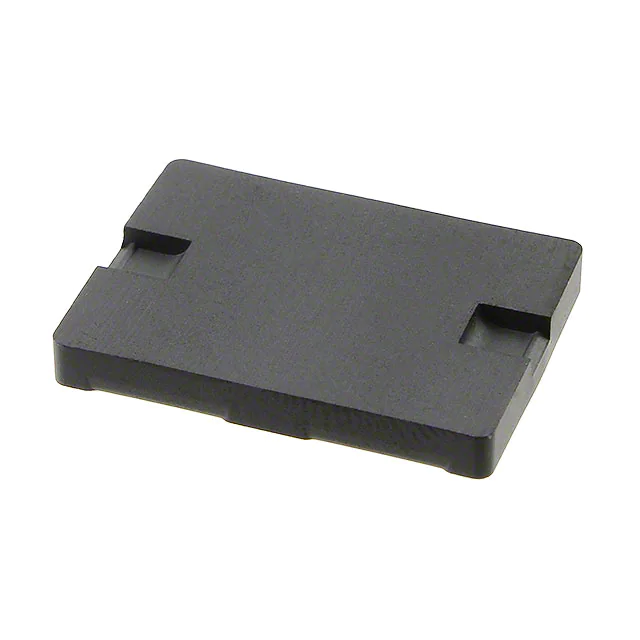

B66285P0000X149FERRITE CORE I N49 1PC |
4,464 | - |
|
Datasheet | B66285 | Box | Obsolete | I | I 22 x 2.5 x 16 | N49 | - | - | - | Ungapped | - | - | - | - | - | - | - | Uncoated | 0.098" (2.50mm) | 0.858" (21.80mm) | 0.622" (15.80mm) |
Ferrite Cores FAQ
What Ferrite Cores components can I source from EGOO?
You can browse available Ferrite Cores product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Ferrite Cores parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
