Ferrite Cores
Compare the current Ferrite Cores Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9578261802FERRITE CORE EER 78 SET |
10,742 | - |
|
Datasheet | - | Bulk | Active | EER | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 111.0 | 48.0 | 43.4 | 42.5 | 2083.0 | Uncoated | 0.366" (9.30mm) | - | 0.295" (7.50mm) |
|
4052195211FERRITE CORE ROD 52 |
4,924 | - |
|
Datasheet | - | Bulk | Active | ROD | - | 52 | - | - | - | Ungapped | - | 250 | - | - | - | - | - | Uncoated | - | 0.984" (25.00mm) | - |
|
8998202021FERRITE CORE EFD SET |
1,120 | - |
|
Datasheet | - | Bulk | Active | EFD | - | - | - | - | ±25% | Ungapped | - | 2400 | 156.0 | 47.4 | 31.0 | 29.0 | 1440.0 | Uncoated | - | - | - |
|

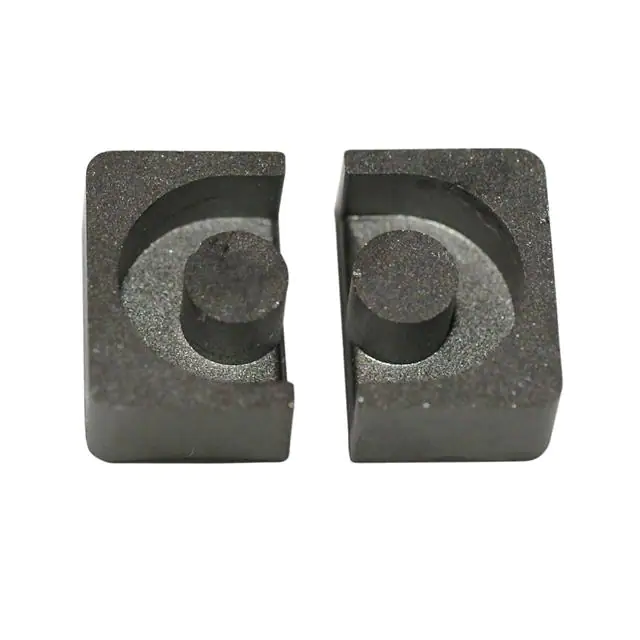

6595070121FERRITE CORE EP 95 SET |
4,775 | - |
|
Datasheet | - | Bulk | Active | EP | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 144.0 | 14.8 | 10.3 | 8.5 | 152.0 | Uncoated | - | - | 0.252" (6.40mm) |
|
5695110821FERRITE CORE PS 95 SET |
14,218 | - |
|
Datasheet | - | Bulk | Active | PS | - | 95 | 0.437" (11.10mm) | - | ±25% | Ungapped | - | 3000 | 95.0 | 16.5 | 17.3 | - | 284.0 | Uncoated | 0.130" (3.30mm) | - | - |
|
5678140921FERRITE CORE PS 78 SET |
2,100 | - |
|
Datasheet | - | Bulk | Active | PS | - | 78 | 0.551" (14.00mm) | - | ±25% | Ungapped | - | 2300 | 79.0 | 19.8 | 25.1 | - | 495.0 | Uncoated | 0.165" (4.20mm) | - | - |
|

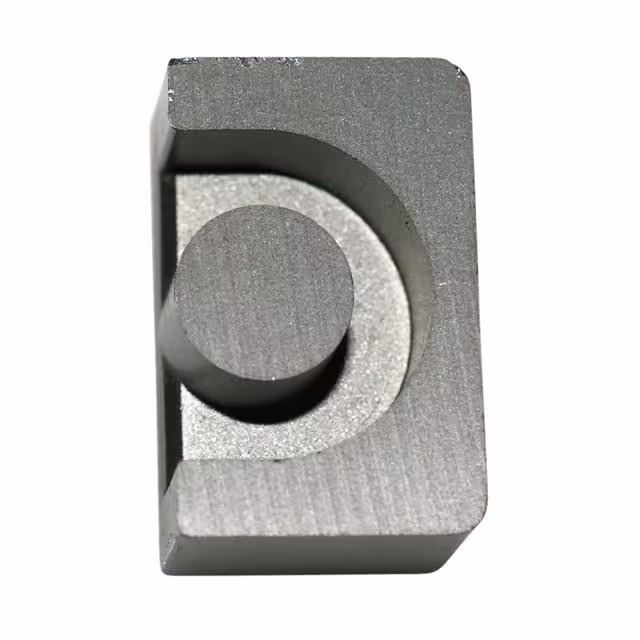

6578100121FERRITE CORE EP 78 SET |
1,982 | - |
|
Datasheet | - | Bulk | Active | EP | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 168.0 | 18.5 | 11.0 | 8.5 | 203.0 | Uncoated | - | - | - |
|

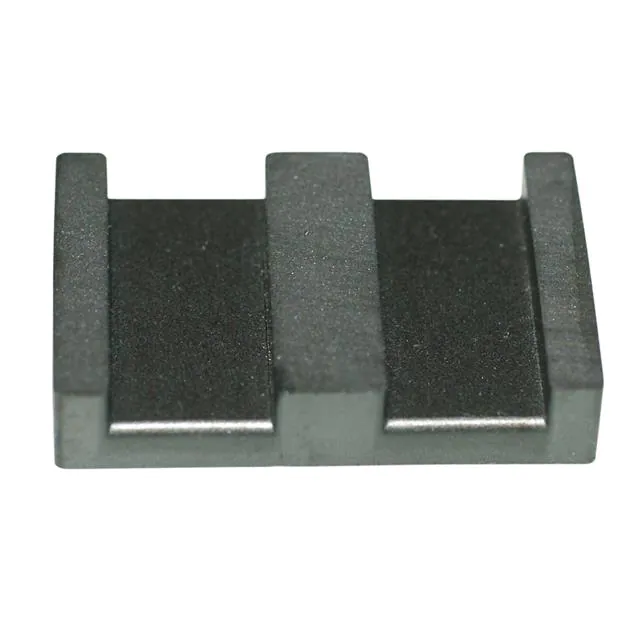

9495202002FERRITE CORE E 95 SET |
1,756 | - |
|
Datasheet | - | Bulk | Active | E | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 60.0 | 24.3 | 39.5 | 39.0 | 960.0 | Uncoated | - | - | 0.394" (10.00mm) |
|

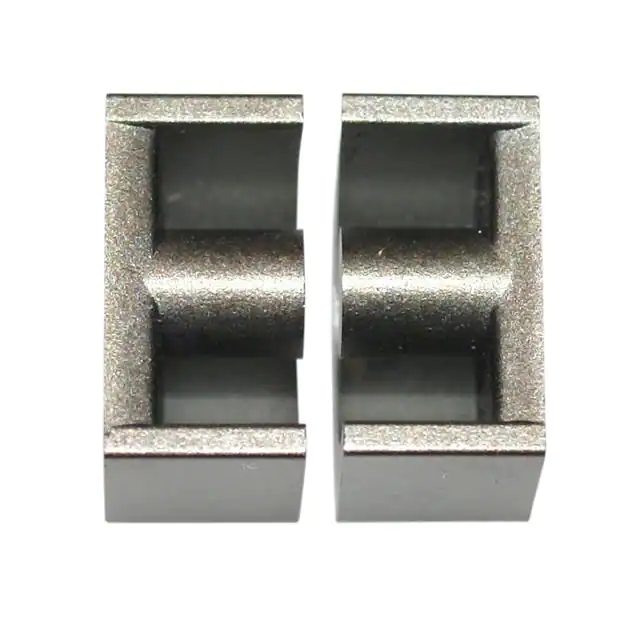

6578130121FERRITE CORE EP 78 SET |
1,871 | - |
|
Datasheet | - | Bulk | Active | EP | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 118.0 | 23.2 | 19.7 | 14.8 | 457.0 | Uncoated | 0.256" (6.50mm) | 0.492" (12.50mm) | - |
|
8995202021FERRITE CORE EFD 95 |
1,110 | - |
|
Datasheet | - | Bulk | Active | EFD | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 156.0 | 47.4 | 31.0 | 29.0 | 1440.0 | Uncoated | - | - | - |
Ferrite Cores FAQ
How can I narrow the current Ferrite Cores selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Ferrite Cores parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
