Ferrite Cores
Compare the current Ferrite Cores Magnetics - Transformer, Inductor Components selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Core Type | Supplier Device Package | Material | Diameter | Inductance Factor (Al) | Tolerance | Gap | Effective Permeability (µe) | Initial Permeability (µi) | Core Factor (ΣI/A) mm⁻¹ | Effective Length (le) mm | Effective Area (Ae) mm² | Minimum Core Cross Section (Amin) mm² | Effective Magnetic Volume (Ve) mm³ | Finish | Height | Length | Width |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
6698404121FERRITE CORE PQ PCS |
2,224 | - |
|
Datasheet | - | Bulk | Active | PQ | - | - | - | - | ±25% | Ungapped | - | 2400 | 52.3 | 103.6 | 198.0 | 170.0 | 20500.0 | Uncoated | - | - | - |
|
6698353621FERRITE CORE PQ SET |
4,269 | - |
|
Datasheet | - | Bulk | Active | PQ | - | - | - | - | ±25% | Ungapped | - | 2400 | 48.2 | 88.2 | 183.0 | 161.7 | 16130.0 | Uncoated | 0.685" (17.40mm) | 1.382" (35.10mm) | - |
|
6278420121FERRITE CORE RM 78 SET |
1,270 | - |
|
Datasheet | - | Bulk | Active | RM | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 38.0 | 73.8 | 195.0 | 170.9 | 14370.0 | Uncoated | - | - | - |
|
9595494902FERRITE CORE ETD 95 SET |
2,832 | - |
|
Datasheet | - | Bulk | Active | ETD | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 53.0 | 114.4 | 213.5 | 209.0 | 24420.0 | Uncoated | - | - | - |
|
6678505021FERRITE CORE PQ 78 SET |
1,123 | - |
|
Datasheet | - | Bulk | Active | PQ | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 35.9 | 114.7 | 319.0 | 314.2 | 36630.0 | Uncoated | - | 1.969" (50.00mm) | 1.260" (32.00mm) |
|
|
6698505021FERRITE CORE PQ SET |
3,784 | - |
|
Datasheet | - | Bulk | Active | PQ | - | - | - | - | ±25% | Ungapped | - | 2400 | 35.9 | 114.7 | 319.0 | 314.2 | 36630.0 | Uncoated | - | 1.969" (50.00mm) | 1.260" (32.00mm) |
|
9478207002FERRITE CORE E 78 SET |
1,180 | - |
|
Datasheet | - | Bulk | Active | E | - | 78 | - | - | ±25% | Ungapped | - | 2300 | 15.4 | 80.7 | 520.0 | 515.0 | 41500.0 | Uncoated | 0.407" (10.34mm) | 2.520" (64.00mm) | 2.008" (51.00mm) |
|

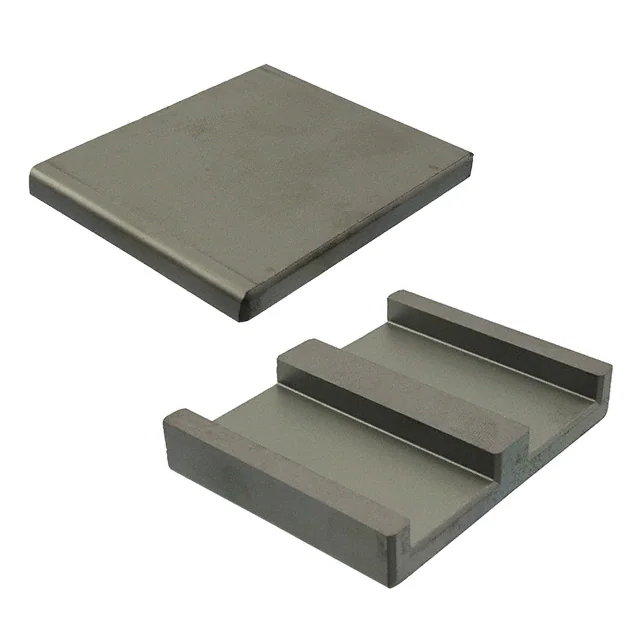

7895400721FERRITE CORE PLANAR E/I 95 SET |
1,524 | - |
|
Datasheet | - | Bulk | Active | Planar E/I | - | 95 | - | - | ±25% | Ungapped | - | 3000 | 14.0 | 70.0 | 518.0 | 515.0 | 36300.0 | Uncoated | 0.407" (10.34mm) | 2.520" (64.00mm) | 2.008" (51.00mm) |
|
5978014001FERRITE CORE TOROID 78 |
4,084 | - |
|
Datasheet | - | Bulk | Active | Toroid | - | 78 | - | - | ±25% | Ungapped | - | 2300 | - | 274.0 | 324.0 | - | 88700.0 | Uncoated | - | - | - |
|
5978008001FERRITE CORE TOROID 78 |
3,447 | - |
|
Datasheet | - | Bulk | Active | Toroid | - | 78 | - | - | ±25% | Ungapped | - | 2300 | - | 313.0 | 760.0 | - | 237000.0 | Uncoated | 0.750" (19.05mm) | - | - |
Ferrite Cores FAQ
How can I narrow the current Ferrite Cores selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Ferrite Cores parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
