FET, MOSFET Arrays
Compare the current FET, MOSFET Arrays FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTM50HM35FGMOSFET 4N-CH 500V 99A SP6 |
7,410 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 500V | 99A | 39mOhm @ 49.5A, 10V | 5V @ 5mA | 280nC @ 10V | 14000pF @ 25V | 781W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM100AM90FGMOSFET 2N-CH 1000V 78A SP6 |
6,139 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1000V (1kV) | 78A | 105mOhm @ 39A, 10V | 5V @ 10mA | 744nC @ 10V | 20700pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM120A15FGMOSFET 2N-CH 1200V 60A SP6 |
6,464 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 60A | 175mOhm @ 30A, 10V | 5V @ 10mA | 748nC @ 10V | 20600pF @ 25V | 1250W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTM100H18FGMOSFET 4N-CH 1000V 43A SP6 |
3,903 | - |
|
Datasheet | - | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1000V (1kV) | 43A | 210mOhm @ 21.5A, 10V | 5V @ 5mA | 372nC @ 10V | 10400pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|

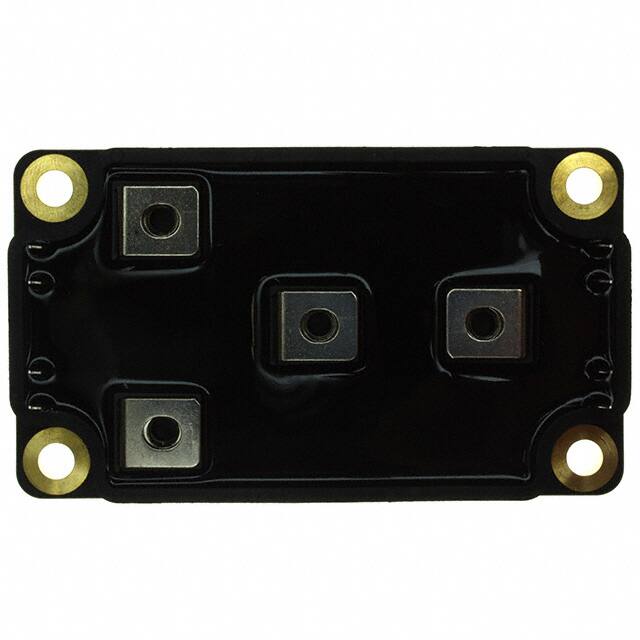

APTM120H29FGMOSFET 4N-CH 1200V 34A SP6 |
8,924 | - |
|
Datasheet | POWER MOS 7® | SP6 | Bulk | Active | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 34A | 348mOhm @ 17A, 10V | 5V @ 5mA | 374nC @ 10V | 10300pF @ 25V | 780W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
|
APTM100TA35SCTPGMOSFET 6N-CH 1000V 22A SP6-P |
8,239 | - |
|
Datasheet | POWER MOS 7® | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 1000V (1kV) | 22A | 420mOhm @ 11A, 10V | 5V @ 2.5mA | 186nC @ 10V | 5200pF @ 25V | 390W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
.jpg "MSCSM120HM16CT3AG")
|
MSCSM120HM16CT3AGMOSFET 4N-CH 1200V 173A SP3F |
9,755 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 4 N-Channel | - | 1200V (1.2kV) | 173A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 745W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP3F |
|
|
APTC60TAM21SCTPAGMOSFET 6N-CH 600V 116A SP6-P |
5,946 | - |
|
Datasheet | CoolMOS™ | Module | Bulk | Active | MOSFET (Metal Oxide) | 6 N-Channel (3-Phase Bridge) | - | 600V | 116A | 21mOhm @ 88A, 10V | 3.6V @ 6mA | 580nC @ 10V | 13000pF @ 100V | 625W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6-P |
|
|
APTMC170AM60CT1AGMOSFET 2N-CH 1700V 50A SP1 |
9,853 | - |
|
Datasheet | - | SP1 | Bulk | Obsolete | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1700V (1.7kV) | 50A (Tc) | 60mOhm @ 50A, 20V | 2.3V @ 2.5mA (Typ) | 190nC @ 20V | 3080pF @ 1000V | 350W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP1 |
|
|
MSCSM70HM05CAGSIC MOSFET |
2,214 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
FET, MOSFET Arrays FAQ
How can I narrow the current FET, MOSFET Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FET, MOSFET Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
