FET, MOSFET Arrays
Compare the current FET, MOSFET Arrays FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MSCSM70TAM10CTPAGMOSFET 6N-CH 700V 238A SP6-P |
3,512 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 700V | 238A (Tc) | 9.5mOhm @ 80A, 20V | 2.4V @ 8mA | 430nC @ 20V | 9000pF @ 700V | 674W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|

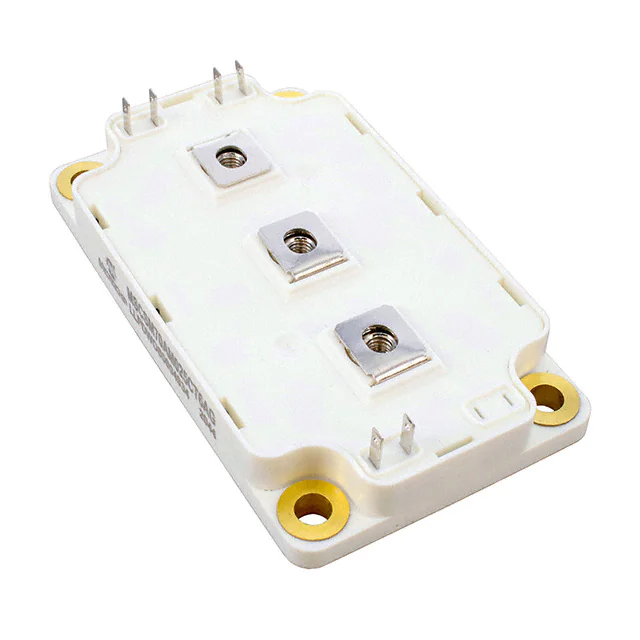

MSCSM70AM025CT6AGMOSFET 700V 538A SP6C |
8,918 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | - | - | 700V | 538A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | SP6C |
|

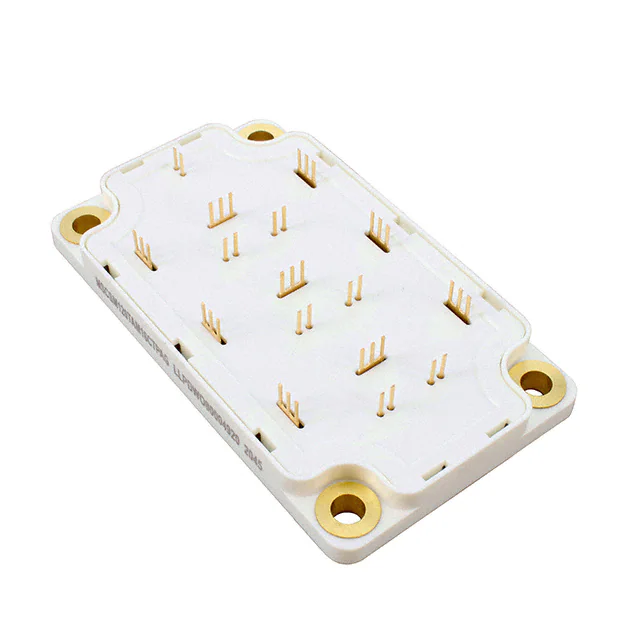

MSCSM120TAM16CTPAGMOSFET 6N-CH 1200V 171A SP6-P |
8,055 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 6 N-Channel (3-Phase Bridge) | - | 1200V (1.2kV) | 171A (Tc) | 16mOhm @ 80A, 20V | 2.8V @ 2mA | 464nC @ 20V | 6040pF @ 1000V | 728W (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6-P |
|
MSCSM120HM083CAGSIC MOSFET |
3,522 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSCSM120AM042CT6AGMOSFET 2N-CH 1200V 495A SP6C |
7,444 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N Channel (Phase Leg) | - | 1200V (1.2kV) | 495A (Tc) | 5.2mOhm @ 240A, 20V | 2.8V @ 6mA | 1392nC @ 20V | 18.1pF @ 1000V | 2.031kW (Tc) | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | SP6C |
|
MSCSM70AM025CT6LIAGMOSFET 2N-CH 700V 689A SP6C LI |
8,656 | - |
|
Datasheet | - | Module | Tube | Active | Silicon Carbide (SiC) | 2 N-Channel | - | 700V | 689A (Tc) | 3.2mOhm @ 240A, 20V | 2.4V @ 24mA (Typ) | 1290nC @ 20V | 27000pF @ 700V | 1882W (Tc) | - | - | - | Chassis Mount | SP6C LI |
|
|
MSCSM70HM038CAGSIC MOSFET |
3,042 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MSCSM120HM063CAGSIC MOSFET |
5,267 | - |
|
Datasheet | - | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
APTC60AM18SCGMOSFET 2N-CH 600V 143A SP6 |
0 | - |
|
Datasheet | CoolMOS™ | SP6 | Bulk | Obsolete | MOSFET (Metal Oxide) | 2 N-Channel (Half Bridge) | - | 600V | 143A | 18mOhm @ 71.5A, 10V | 3.9V @ 4mA | 1036nC @ 10V | 28000pF @ 25V | 833W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP6 |
|
APTC60HM35T3GMOSFET 4N-CH 600V 72A SP3 |
4,577 | - |
|
Datasheet | - | SP3 | Bulk | Obsolete | MOSFET (Metal Oxide) | 4 N-Channel (Full Bridge) | - | 600V | 72A | 35mOhm @ 72A, 10V | 3.9V @ 5.4mA | 518nC @ 10V | 14000pF @ 25V | 416W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | SP3 |
FET, MOSFET Arrays FAQ
How can I narrow the current FET, MOSFET Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FET, MOSFET Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
