FET, MOSFET Arrays
Compare the current FET, MOSFET Arrays FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CCB016M12GM3TMOSFET 6N-CH 1200V 50A MODULE |
49 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 6 N-Channel | - | 1200V (1.2kV) | 50A (Tj) | 20.8mOhm @ 50A, 15V | 3.9V @ 23mA | 236nC @ 15V | 6700pF @ 1000V | 10mW | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
CAB006A12GM3TMOSFET 2N-CH 1200V 200A MODULE |
39 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 200A (Tj) | 6.9mOhm @ 200A, 15V | 3.6V @ 69mA | 708nC @ 15V | 20400pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
|
CAB5R0A23GM4MOSFET 2N-CH 2300V 150A |
30 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 2300V (2.3kV) | 150A | 7mOhm @ 240A, 15V | 4V @ 114mA | 880nC @ 15V | 36600pF @ 1.5kV | 710W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|

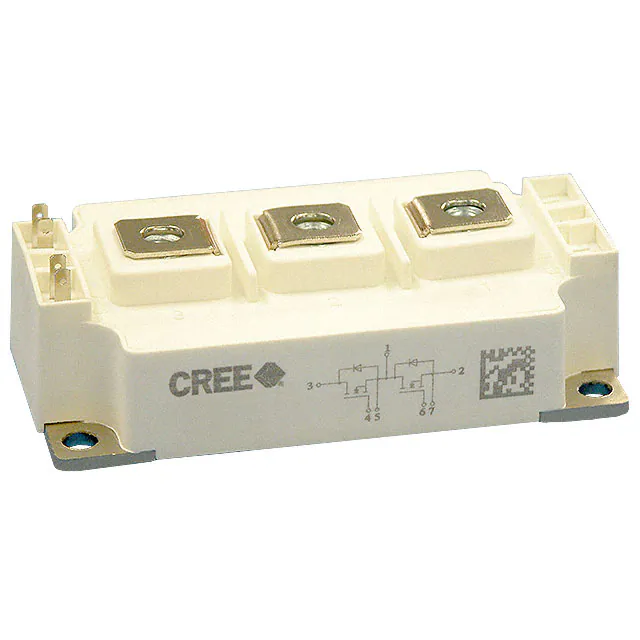

CAS120M12BM2MOSFET 2N-CH 1200V 193A MODULE |
117 | - |
|
Datasheet | Z-Rec® | Module | Bulk | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 193A (Tc) | 16mOhm @ 120A, 20V | 2.6V @ 6mA (Typ) | 378nC @ 20V | 6470pF @ 800V | 925W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|

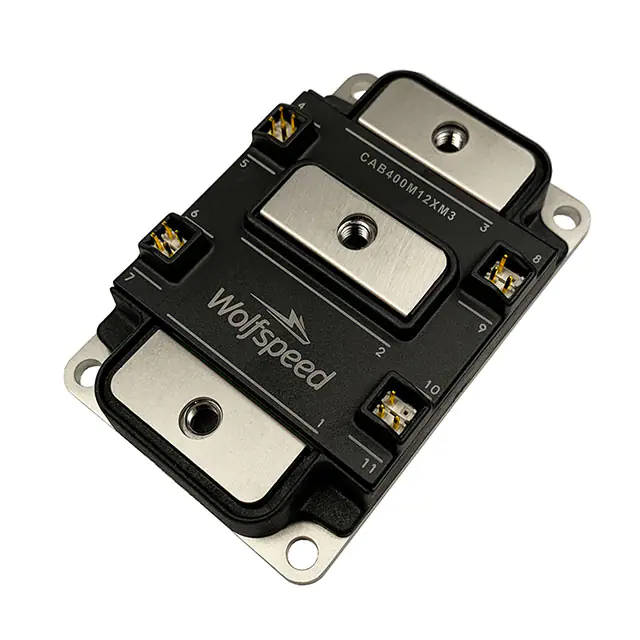

CAB400M12XM3MOSFET 2N-CH 1200V 395A |
24 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1200V (1.2kV) | 395A (Tc) | 5.3mOhm @ 400A, 15V | 3.6V @ 92mA | 908nC @ 15V | 2450pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

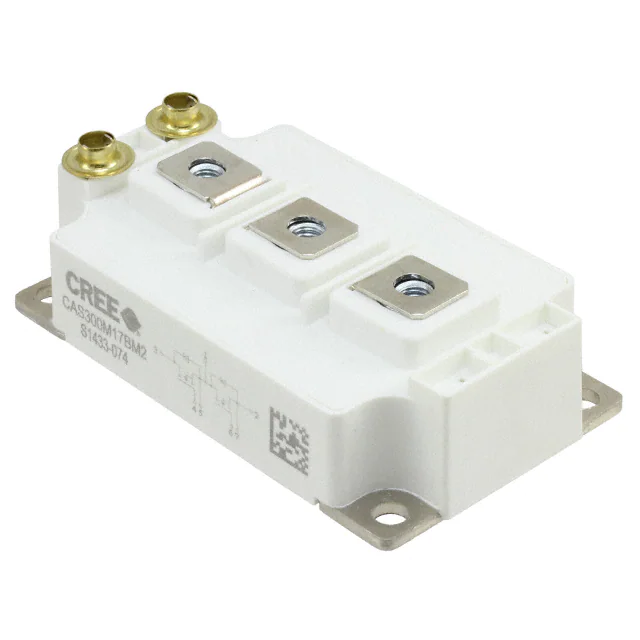

CAS300M17BM2MOSFET 2N-CH 1700V 325A MODULE |
1 | - |
|
Datasheet | Z-Rec® | Module | Box | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1700V (1.7kV) | 325A (Tc) | 10mOhm @ 225A, 20V | 2.3V @ 15mA (Typ) | 1076nC @ 20V | 20000pF @ 1000V | 1760W | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | Module |
|
EAB450M12XM3MOSFET 2N-CH 1200V 450A |
3 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 450A (Tc) | 3.7mOhm @ 450A, 15V | 3.6V @ 132mA | 1330nC @ 15V | 38000pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | - |
|

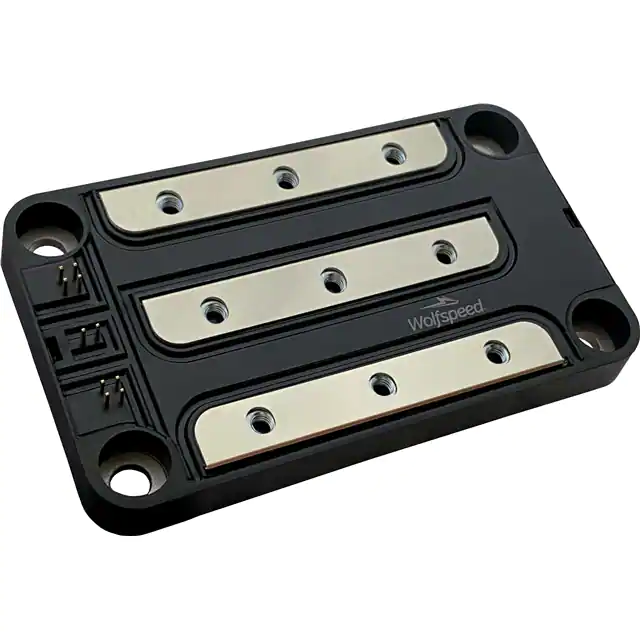

CAB760M12HM3MOSFET 2N-CH 1200V 1015A MODULE |
6 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 1015A (Tc) | 1.73mOhm @ 760A, 15V | 3.6V @ 280mA | 2724nC @ 15V | 79400pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
|
CBB032M12FM3TMOSFET 4N-CH 1200V 39A |
22 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 4 N-Channel (Full Bridge) | - | 1200V (1.2kV) | 39A (Tj) | 44mOhm @ 30A, 15V | 3.9V @ 11mA | 118nC @ 15V | 3500pF @ 1000V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
CAB006A12GM3MOSFET 2N-CH 1200V 200A |
10 | - |
|
Datasheet | - | Module | Tray | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 200A (Tj) | 6.9mOhm @ 200A, 15V | 3.6V @ 69mA | 708nC @ 15V | 20400pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
FET, MOSFET Arrays FAQ
How can I narrow the current FET, MOSFET Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FET, MOSFET Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
