FET, MOSFET Arrays
Compare the current FET, MOSFET Arrays FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Configuration | FET Feature | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Input Capacitance (Ciss) (Max) @ Vds | Power - Max | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
WAS310M17BM3SIC 1700V 310A |
4 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | - | - | 1700V (1.7kV) | 310A | - | - | - | - | - | - | - | - | Chassis Mount | - |
|
|
HAS310M17BM3MOSFET 2N-CH 1700V 399A |
3 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | Silicon Carbide (SiC) | 1700V | 399A (Tc) | 5.8mOhm @ 310A, 15V | 3.6V @ 102mA | 996nC @ 15V | 31500pF @ 1000V | 1.63kW (Tc) | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
|
CAB320M17XM3SIC 1700V 320A MODULE |
2 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | - | - | 1700V (1.7kV) | 320A (Tc) | - | - | - | - | - | - | - | - | Chassis Mount | - |
|
WAB300M12BM3MOSFET 2N-CH 1200V 382A MODULE |
8,403 | - |
|
Datasheet | - | Module | Bulk | Last Time Buy | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 382A (Tc) | 5.2mOhm @ 300A, 15V | 3.6V @ 92mA | 908nC @ 15V | 24500pF @ 1000V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
CAB650M17HM3MOSFET 2N-CH 1700V 916A MODULE |
1 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1700V (1.7kV) | 916A (Tc) | 1.86mOhm @ 650A, 15V | 3.6V @ 305mA | 2988nC @ 15V | 97300pF @ 1200V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
CAS300M12BM2MOSFET 2N-CH 1200V 423A MODULE |
1 | - |
|
Datasheet | Z-FET™ | Module, Screw Terminals | Bulk | Not For New Designs | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 423A (Tc) | 5.7mOhm @ 300A, 20V | 2.3V @ 15mA (Typ) | 1025nC @ 20V | 19500pF @ 800V | 1660W | 150°C (TJ) | - | - | Chassis Mount | Module |
|

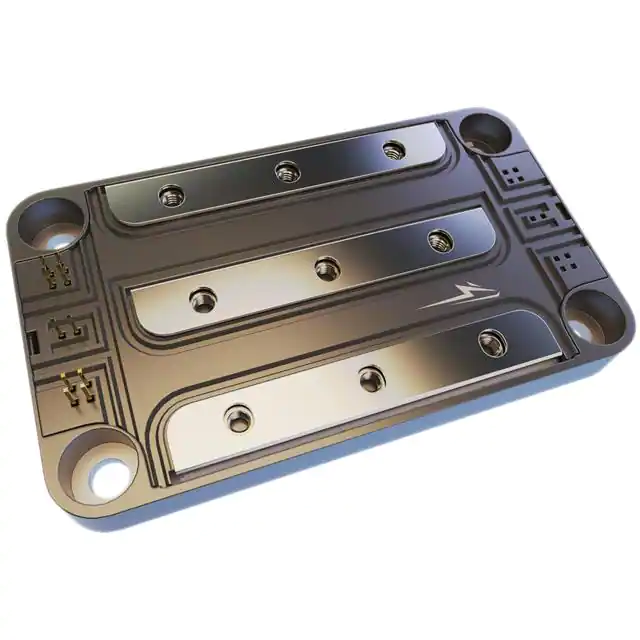

CAB760M12HM3RMOSFET 2N-CH 1200V 1.015KA MODUL |
8,623 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 1.015kA (Tc) | 1.73mOhm @ 760A, 15V | 3.6V @ 280mA | 2724nC @ 15V | 79400pF @ 800V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
|
WAS350M12BM3MOSFET 2N-CH 1200V 417A |
5,400 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 417A (Tc) | 5.2mOhm @ 350A, 15V | 3.6V @ 85mA | 844nC @ 15V | 25700pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
|
WAS530M12BM3MOSFET 2N-CH 1200V 630A |
9,932 | - |
|
Datasheet | - | Module | Box | Active | Silicon Carbide (SiC) | 2 N-Channel (Half Bridge) | - | 1200V (1.2kV) | 630A (Tc) | 3.47mOhm @ 530A, 15V | 3.6V @ 127mA | 1362nC @ 15V | 38900pF @ 800V | - | -40°C ~ 150°C (TJ) | - | - | Chassis Mount | - |
|
|
CAS380M17HM3MOSFET 2N-CH 1700V 532A MODULE |
1 | - |
|
Datasheet | - | Module | Bulk | Active | Silicon Carbide (SiC) | 2 N-Channel (Dual) | - | 1700V (1.7kV) | 532A (Tc) | 3.74mOhm @ 380A, 15V | 3.6V @ 152mA | 1494nC @ 15V | 4700pF @ 1200V | - | -40°C ~ 175°C (TJ) | - | - | Chassis Mount | Module |
FET, MOSFET Arrays FAQ
How can I narrow the current FET, MOSFET Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FET, MOSFET Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
