FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPD320N20N3GBTMA1MOSFET N-CH 200V 34A TO252-3 |
3,640 | - |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 34A (Tc) | 10V | 32mOhm @ 34A, 10V | 4V @ 90µA | 29 nC @ 10 V | ±20V | 2350 pF @ 100 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|
|
IPD600N25N3GBTMA1MOSFET N-CH 250V 25A TO252-3 |
4,302 | - |
|
Datasheet | OptiMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 25A (Tc) | 10V | 60mOhm @ 25A, 10V | 4V @ 90µA | 29 nC @ 10 V | ±20V | 2350 pF @ 100 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO252-3 |
|

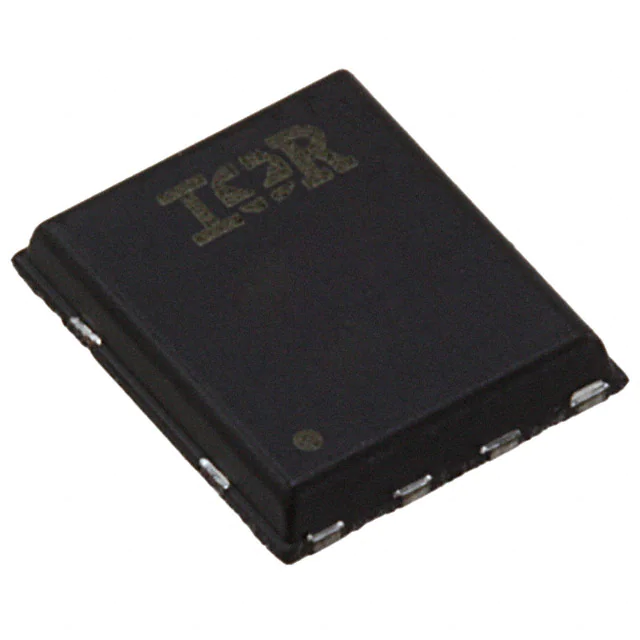

IRFH4201TRPBFMOSFET N-CH 25V 49A 8PQFN |
8,449 | - |
|
Datasheet | HEXFET® | 8-PowerVDFN | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 49A (Ta) | 4.5V, 10V | 0.95mOhm @ 50A, 10V | 2.1V @ 150µA | 94 nC @ 10 V | ±20V | 6100 pF @ 13 V | - | 3.5W (Ta), 156W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
IRF2807ZMOSFET N-CH 75V 75A TO220AB |
4,113 | - |
|
Datasheet | HEXFET® | TO-220-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 75A (Tc) | 10V | 9.4mOhm @ 53A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 3270 pF @ 25 V | - | 170W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220AB |
|
IRF5210LMOSFET P-CH 100V 40A TO262 |
4,445 | - |
|
Datasheet | HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 10V | 60mOhm @ 24A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-262 |
|
IRLHM630TR2PBFMOSFET N-CH 30V 21A PQFN |
3,463 | - |
|
Datasheet | - | 8-VQFN Exposed Pad | Cut Tape (CT) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta), 40A (Tc) | - | 3.5mOhm @ 20A, 4.5V | 1.1V @ 50µA | 62 nC @ 4.5 V | - | 3170 pF @ 25 V | - | - | - | - | - | Surface Mount | PQFN (3x3) |
|
IRFS7762TRLPBFMOSFET N-CH 75V 85A D2PAK |
7,412 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 85A (Tc) | 6V, 10V | 6.7mOhm @ 51A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4440 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IRF3711LMOSFET N-CH 20V 110A TO262 |
7,590 | - |
|
Datasheet | HEXFET® | TO-262-3 Long Leads, I2PAK, TO-262AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 110A (Tc) | 4.5V, 10V | 6mOhm @ 15A, 10V | 3V @ 250µA | 44 nC @ 4.5 V | ±20V | 2980 pF @ 10 V | - | 3.1W (Ta), 120W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-262 |
|
GS-065-011-1-L-TRGS-065-011-1-L-TR |
3,319 | - |
|
Datasheet | - | 8-PowerVDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 6V | 190mOhm @ 3.2A, 6V | 2.6V @ 2.4mA | 2.2 nC @ 6 V | +7V, -10V | 70 pF @ 400 V | - | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PDFN (5x6) |
|
|
IRF1404ZSTRLMOSFET N-CH 40V 180A D2PAK |
8,755 | - |
|
Datasheet | HEXFET® | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 180A (Tc) | 10V | 3.7mOhm @ 75A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 4340 pF @ 25 V | - | 220W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
