FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPU60R600C6BKMA1MOSFET N-CH 600V 7.3A TO251-3 |
8,565 | - |
|
Datasheet | CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 7.3A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 3.5V @ 200µA | 20.5 nC @ 10 V | ±20V | 440 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
|
IPU60R950C6BKMA1MOSFET N-CH 600V 4.4A TO251-3 |
9,376 | - |
|
Datasheet | CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.4A (Tc) | 10V | 950mOhm @ 1.5A, 10V | 3.5V @ 130µA | 1.5 nC @ 10 V | ±20V | 280 pF @ 100 V | - | 37W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
|
IPB65R045C7ATMA1MOSFET N-CH 650V 46A D2PAK |
9,993 | - |
|
Datasheet | CoolMOS™ C7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 45mOhm @ 24.9A, 10V | 4V @ 1.25mA | 93 nC @ 10 V | ±20V | 4340 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
|
|
IPB65R225C7ATMA1MOSFET N-CH 650V 11A D2PAK |
5,619 | - |
|
Datasheet | CoolMOS™ C7 | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 225mOhm @ 4.8A, 10V | 4V @ 240µA | 20 nC @ 10 V | ±20V | 996 pF @ 400 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO263-3 |
.jpg "IRFS7434-7PPBF")
|
IRFS7434-7PPBFMOSFET N-CH 40V 240A D2PAK |
4,115 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 6V, 10V | 1mOhm @ 100A, 10V | 3.9V @ 250µA | 315 nC @ 10 V | ±20V | 10250 pF @ 25 V | - | 245W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
IRFR7446PBFMOSFET N-CH 40V 56A TO252 |
9,720 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 56A (Tc) | 6V, 10V | 3.9mOhm @ 56A, 10V | 3.9V @ 100µA | 130 nC @ 10 V | ±20V | 3150 pF @ 25 V | - | 98W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
AUIRFP4409MOSFET N-CH 300V 38A TO247AC |
9,392 | - |
|
Datasheet | HEXFET® | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 300 V | 38A (Tc) | 10V | 69mOhm @ 24A, 10V | 5V @ 250µA | 125 nC @ 10 V | ±20V | 5168 pF @ 50 V | - | 341W (Tc) | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AC |
|

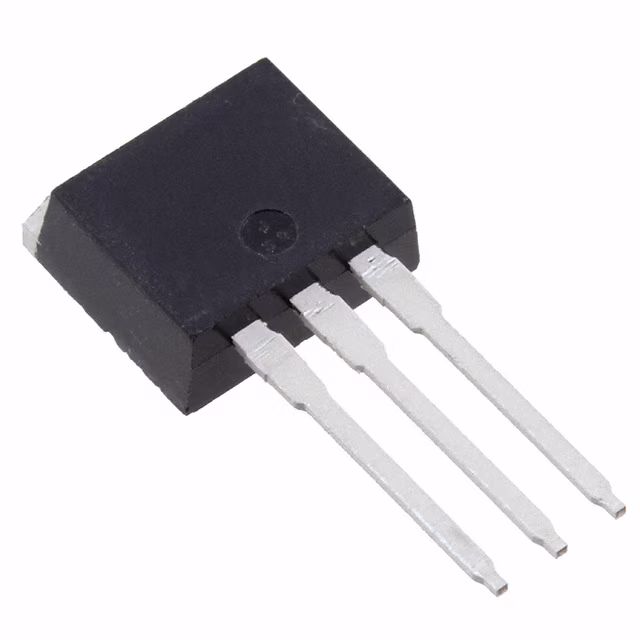

AUIRFSL8409MOSFET N-CH 40V 195A TO262 |
4,342 | - |
|
Datasheet | HEXFET® | TO-262-3 Short Leads, I2PAK | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 450 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-262 |
|
IRFHM9391TRPBFMOSFET P-CH 30V 11A 8PQFN |
5,704 | - |
|
Datasheet | HEXFET® | 8-PowerTDFN | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 14.6mOhm @ 11A, 10V | 2.4V @ 25µA | 16 nC @ 10 V | ±25V | 1543 pF @ 25 V | - | 2.6W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (3.3x3.3), Power33 |
|
IRL6283MTRPBFMOSFET N-CH 20V 38A DIRECTFET |
3,209 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | DirectFET™ Isometric MD | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 38A (Ta), 211A (Tc) | 2.5V, 4.5V | 0.75mOhm @ 50A, 10V | 1.1V @ 100µA | 158 nC @ 4.5 V | ±12V | 8292 pF @ 10 V | - | 2.1W (Ta), 63W (Tc) | -40°C ~ 150°C (TJ) | - | - | Surface Mount | DIRECTFET™ MD |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
