FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFR7540PBFMOSFET N-CH 60V 90A DPAK |
8,007 | - |
|
Datasheet | StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | 6V, 10V | 4.8mOhm @ 66A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4360 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA (DPAK) |
|
IRFR7546PBFMOSFET N-CH 60V 56A DPAK |
3,269 | - |
|
Datasheet | StrongIRFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 60 V | 56A (Tc) | 6V, 10V | 7.9mOhm @ 43A, 10V | 3.7V @ 100µA | 87 nC @ 10 V | ±20V | 3020 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | DPAK |
|

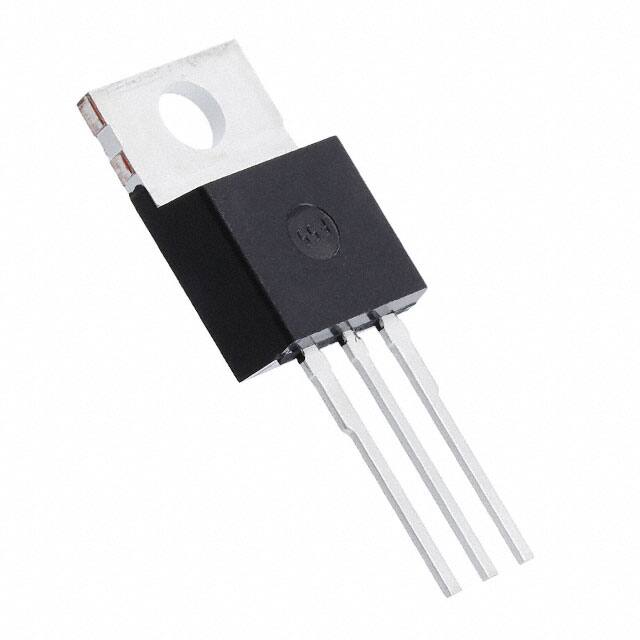

SPP16N50C3XKSA1MOSFET N-CH 560V 16A TO220-3 |
3,802 | - |
|
Datasheet | CoolMOS™ | TO-220-3 Full Pack | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 560 V | 16A (Tc) | 10V | 280mOhm @ 10A, 10V | 3.9V @ 675µA | 66 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 160W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-3-111 |
|
IRFS7430PBFMOSFET N-CH 40V 195A D2PAK |
6,045 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.2mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 14240 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
IRFS7430-7PPBFMOSFET N-CH 40V 240A D2PAK |
8,820 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-263-7, D2PAK (6 Leads + Tab) | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 6V, 10V | 0.75mOhm @ 100A, 10V | 3.9V @ 250µA | 460 nC @ 10 V | ±20V | 13975 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK (7-Lead) |
|
|
IRFS7434PBFMOSFET N-CH 40V 195A D2PAK |
7,966 | - |
|
Datasheet | HEXFET®, StrongIRFET™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 40 V | 195A (Tc) | 6V, 10V | 1.6mOhm @ 100A, 10V | 3.9V @ 250µA | 324 nC @ 10 V | ±20V | 10820 pF @ 25 V | - | 294W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | D2PAK |
|
|
IPD80R2K8CEBTMA1MOSFET N-CH 800V 1.9A TO252-3 |
3,370 | - |
|
Datasheet | CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.9A (Tc) | 10V | 2.8Ohm @ 1.1A, 10V | 3.9V @ 120µA | 12 nC @ 10 V | ±20V | 290 pF @ 100 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
IPD80R1K4CEBTMA1MOSFET N-CH 800V 3.9A TO252-3 |
6,953 | - |
|
Datasheet | CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 800 V | 3.9A (Tc) | 10V | 1.4Ohm @ 2.3A, 10V | 3.9V @ 240µA | 23 nC @ 10 V | ±20V | 570 pF @ 100 V | - | 63W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
|
IPD80R1K0CEBTMA1MOSFET N-CH 800V 5.7A TO252-3 |
6,655 | - |
|
Datasheet | CoolMOS™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.7A (Tc) | 10V | 950mOhm @ 3.6A, 10V | 3.9V @ 250µA | 31 nC @ 10 V | ±20V | 785 pF @ 100 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | PG-TO252-3-11 |
|
IPU80R2K8CEBKMA1MOSFET N-CH 800V 1.9A TO251-3 |
2,418 | - |
|
Datasheet | CoolMOS™ | TO-251-3 Short Leads, IPAK, TO-251AA | Tube | Discontinued at Digi-Key | N-Channel | MOSFET (Metal Oxide) | 800 V | 1.9A (Tc) | 10V | 2.8Ohm @ 1.1A, 10V | 3.9V @ 120µA | 12 nC @ 10 V | ±20V | 290 pF @ 100 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO251-3 |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
