FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQT1N80TF-WSMOSFET N-CH 800V 200MA SOT223-3 |
7,154 | - |
|
Datasheet | QFET® | TO-261-3 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 200mA (Tc) | 10V | 20Ohm @ 100mA, 10V | 5V @ 250µA | 7.2 nC @ 10 V | ±30V | 195 pF @ 25 V | - | 2.1W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223-3 |
|
NTTFS6H850NLTAGMOSFET N-CH 80V 14.8A/64A 8WDFN |
7,744 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 14.8A (Ta), 64A (Tc) | 4.5V, 10V | 8.6mOhm @ 10A, 10V | 2V @ 70µA | 26 nC @ 10 V | ±20V | 1450 pF @ 40 V | - | 3.9W (Ta), 73W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NVTFWS014P04M8LTAGMOSFET P-CH 40V 11.3A/49A 8WDFN |
1,247 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 11.3A (Ta), 49A (Tc) | 4.5V, 10V | 13.8mOhm @ 15A, 10V | 2.4V @ 420µA | 26.5 nC @ 10 V | ±20V | 1734 pF @ 20 V | - | 3.2W (Ta), 61W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
FDMC7696MOSFET N-CH 30V 12A/20A 8MLP |
2,062 | - |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 20A (Tc) | 4.5V, 10V | 11.5mOhm @ 12A, 10V | 3V @ 250µA | 22 nC @ 10 V | ±20V | 1430 pF @ 15 V | - | 2.4W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
NVMFS6H864NLT1GMOSFET N-CH 80V 7A/22A 5DFN |
1,207 | - |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 7A (Ta), 22A (Tc) | 4.5V, 10V | 29mOhm @ 5A, 10V | 2V @ 20µA | 9 nC @ 10 V | ±20V | 431 pF @ 40 V | - | 3.5W (Ta), 33W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
RFD12N06RLESM9AMOSFET N-CH 60V 18A TO252AA |
2,799 | - |
|
Datasheet | UltraFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | 4.5V, 10V | 63mOhm @ 18A, 10V | 3V @ 250µA | 15 nC @ 10 V | ±16V | 485 pF @ 25 V | - | 49W (Tc) | -55°C ~ 155°C (TJ) | - | - | Surface Mount | TO-252AA |
|
STTFS015N10MCL- |
509 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Ta), 42A (Tc) | 4.5V, 10V | 12.9mOhm @ 14A, 10V | 3V @ 77µA | 19 nC @ 10 V | ±20V | 1338 pF @ 50 V | - | 2.5W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
FDMC7672MOSFET N-CH 30V 16.9A/20A 8MLP |
10,884 | - |
|
Datasheet | PowerTrench®, SyncFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 16.9A (Ta), 20A (Tc) | 4.5V, 10V | 5.7mOhm @ 16.9A, 10V | 3V @ 250µA | 57 nC @ 10 V | ±20V | 3890 pF @ 15 V | - | 2.3W (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
|
|
NTTFS6H850NTAGMOSFET N-CH 80V 11A/68A 8WDFN |
2,804 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 11A (Ta), 68A (Tc) | 6V, 10V | 9.5mOhm @ 10A, 10V | 4V @ 70µA | 19 nC @ 10 V | ±20V | 1140 pF @ 40 V | - | 3.2W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|

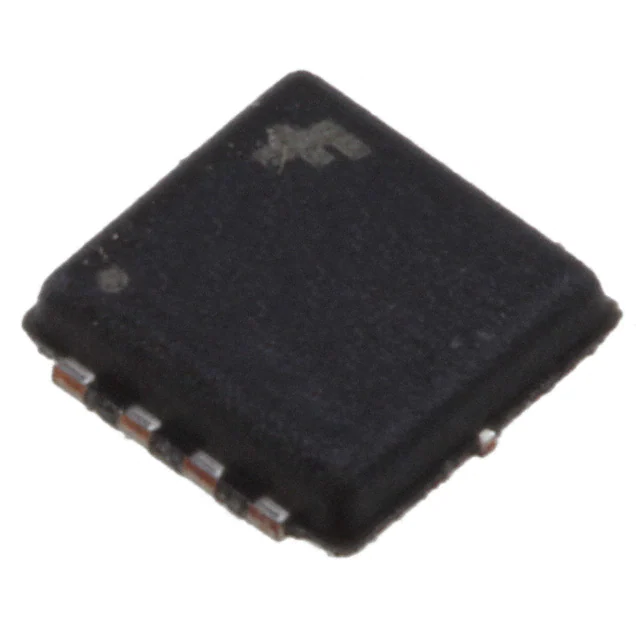

FDMC7672SMOSFET N-CH 30V 14.8A/18A 8MLP |
2,683 | - |
|
Datasheet | PowerTrench®, SyncFET™ | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 14.8A (Ta), 18A (Tc) | 4.5V, 10V | 6mOhm @ 14.8A, 10V | 3V @ 1mA | 42 nC @ 10 V | ±20V | 2520 pF @ 15 V | - | 2.3W (Ta), 36W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-MLP (3.3x3.3) |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
