FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HUF75329D3STMOSFET N-CH 55V 20A TO252AA |
1,483 | - |
|
Datasheet | UltraFET™ | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 20A (Tc) | 10V | 26mOhm @ 20A, 10V | 4V @ 250µA | 65 nC @ 20 V | ±20V | 1060 pF @ 25 V | - | 128W (Tc) | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
NTHS4101PT1GMOSFET P-CH 20V 4.8A CHIPFET |
14,029 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.8A (Tj) | 1.8V, 4.5V | 34mOhm @ 4.8A, 4.5V | 1.5V @ 250µA | 35 nC @ 4.5 V | ±8V | 2100 pF @ 16 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | ChipFET™ |
|
NVTFS6H860NLWFTAGMOSFET N-CH 80V 8.1A/30A 8WDFN |
2,910 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8.1A (Ta), 30A (Tc) | 4.5V, 10V | 20mOhm @ 5A, 10V | 2V @ 30µA | 12 nC @ 10 V | ±20V | 610 pF @ 40 V | - | 3.1W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|
|
NVTFS6H860NLTAGMOSFET N-CH 80V 8.1A/30A 8WDFN |
2,777 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 8.1A (Ta), 30A (Tc) | 4.5V, 10V | 20mOhm @ 5A, 10V | 2V @ 30µA | 12 nC @ 10 V | ±20V | 610 pF @ 40 V | - | 3.1W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 8-WDFN (3.3x3.3) |
|

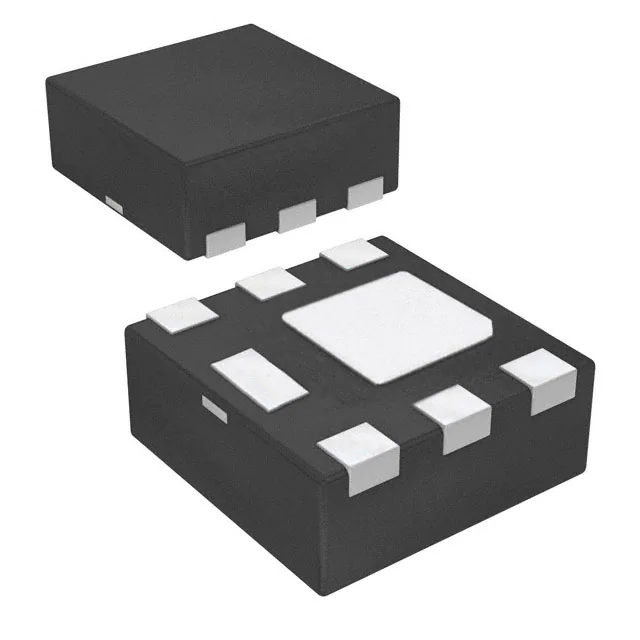

FDMA7672MOSFET N-CH 30V 9A 6MICROFET |
7,388 | - |
|
Datasheet | PowerTrench® | 6-WDFN Exposed Pad | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 21mOhm @ 9A, 10V | 3V @ 250µA | 13 nC @ 10 V | ±20V | 760 pF @ 15 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 6-MicroFET (2x2) |
|
SVD2955T4GMOSFET P-CH 60V 12A DPAK |
4,682 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta) | 10V | 180mOhm @ 6A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 750 pF @ 25 V | - | 55W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
FDWS86380-F085MOSFET N-CH 80V 50A POWER56 |
1,434 | - |
|
Datasheet | PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 50A (Tc) | 10V | 13.4mOhm @ 50A, 10V | 4V @ 250µA | 30 nC @ 10 V | ±20V | 1440 pF @ 40 V | - | 75W (Tj) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | Power56 |
|
NVD6416ANLT4G-VF01MOSFET N-CH 100V 19A DPAK-3 |
189 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Tc) | 4.5V, 10V | 74mOhm @ 19A, 10V | 2.2V @ 250µA | 40 nC @ 10 V | ±20V | 1000 pF @ 25 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK-3 |
|
FDMS7692MOSFET N-CH 30V 14A/28A 8PQFN |
11,818 | - |
|
Datasheet | PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 14A (Ta), 28A (Tc) | 4.5V, 10V | 7.5mOhm @ 13A, 10V | 3V @ 250µA | 22 nC @ 10 V | ±20V | 1350 pF @ 15 V | - | 2.5W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-PQFN (5x6) |
|
NCV8440ASTT3GMOSFET N-CH 59V 2.6A SOT223 |
7,502 | - |
|
Datasheet | - | TO-261-4, TO-261AA | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 59 V | 2.6A (Ta) | 3.5V, 10V | 110mOhm @ 2.6A, 10V | 1.9V @ 100µA | 4.5 nC @ 4.5 V | ±15V | 155 pF @ 35 V | - | 1.69W (Ta) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | SOT-223 (TO-261) |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
