FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDD13AN06A0-F085MOSFET N-CH 60V 9.9A/50A TO252AA |
2,274 | - |
|
Datasheet | PowerTrench® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 9.9A (Ta), 50A (Tc) | 6V, 10V | 13.5mOhm @ 50A, 10V | 4V @ 250µA | 29 nC @ 10 V | ±20V | 1350 pF @ 25 V | - | 115W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | TO-252AA |
|
NVD5C486NLT4GMOSFET N-CH 40V 9.8A/24A DPAK |
1,897 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 9.8A (Ta), 24A (Tc) | 4.5V, 10V | 16mOhm @ 10A, 10V | 2.2V @ 20µA | 9.8 nC @ 10 V | ±20V | 530 pF @ 25 V | - | 2.9W (Ta), 18W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|

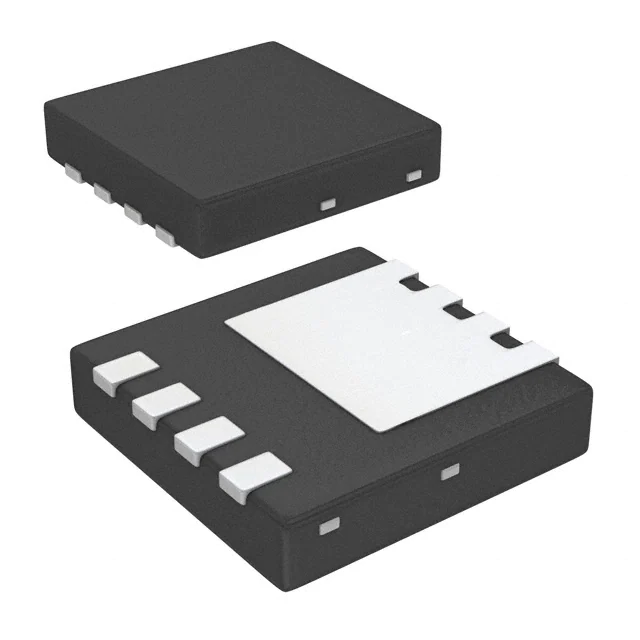

FDMC86324MOSFET N-CH 80V 7A/20A POWER33 |
3,555 | - |
|
Datasheet | PowerTrench® | 8-PowerTDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 7A (Ta), 20A (Tc) | 6V, 10V | 23mOhm @ 7A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 965 pF @ 50 V | - | 2.3W (Ta), 41W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | Power33 |
|
NVMFWS9D6P04M8LT1GMV8 P-CH 40V SO-8FL PORTFOLIO EX |
2,825 | - |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 17.1A (Ta), 77A (Tc) | 4.5V, 10V | 9.5mOhm @ 20A, 10V | 2.4V @ 580µA | 14.47 nC @ 10 V | ±20V | 2002 pF @ 20 V | - | 3.7W (Ta), 75W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount, Wettable Flank | 5-DFNW (4.9x5.9) (8-SOFL-WF) |
|
NTTFS012N10MDTAGPTNG 100V LOW Q 12MOHM N-FET, U8 |
4,655 | - |
|
Datasheet | - | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 9.2A (Ta), 45A (Tc) | 6V, 10V | 14.4mOhm @ 15A, 10V | 4V @ 78µA | 13 nC @ 10 V | ±20V | 965 pF @ 50 V | - | 2.7W (Ta), 62W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
NTMFS5H419NLT1GMOSFET N-CH 40V 29A/155A 5DFN |
1,340 | - |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 29A (Ta), 155A (Tc) | 4.5V, 10V | 2.1mOhm @ 20A, 10V | 2V @ 250µA | 45 nC @ 10 V | ±20V | 2900 pF @ 20 V | - | 3.1W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 5-DFN (5x6) (8-SOFL) |
|
|
NVMYS012N10MCLTWGPTNG 100V LL LFPAK4 |
2,063 | - |
|
Datasheet | - | SOT-1023, 4-LFPAK | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11.6A (Ta), 52A (Tc) | 4.5V, 10V | 12.2mOhm @ 14A, 10V | 3V @ 77µA | 19 nC @ 10 V | ±20V | 1338 pF @ 50 V | - | 3.6W (Ta), 72W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | LFPAK4 (5x6) |
|
NTTFS010N10MCLTAGMOSFET N-CH 100V 10.7A/50A 8WDFN |
597 | - |
|
Datasheet | PowerTrench® | 8-PowerWDFN | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10.7A (Ta), 50A (Tc) | 4.5V, 10V | 10.6mOhm @ 15A, 10V | 3V @ 85µA | 30 nC @ 10 V | ±20V | 2150 pF @ 50 V | - | 2.3W (Ta),52W (Tc) | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 8-WDFN (3.3x3.3) |
|
FQPF19N20CMOSFET N-CH 200V 19A TO220F |
311 | - |
|
Datasheet | QFET® | TO-220-3 Full Pack | Tube | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 19A (Tc) | 10V | 170mOhm @ 9.5A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±30V | 1080 pF @ 25 V | - | 43W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220F-3 |
|
|
NVMFS5C456NLAFT1GMOSFET N-CH 40V 87A 5DFN |
1,400 | - |
|
Datasheet | - | 8-PowerTDFN, 5 Leads | Tape & Reel (TR) | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 87A (Tc) | 4.5V, 10V | 3.7mOhm @ 20A, 10V | 2V @ 250µA | 18 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | 5-DFN (5x6) (8-SOFL) |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
