FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FK4B01120L1MOSFET N-CH 12V 3.9A ULGA004 |
2,000 | - |
|
Datasheet | - | 4-XFLGA, CSP | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 12 V | 3.9A (Ta) | 1.5V, 4.5V | 24mOhm @ 1.5A, 4.5V | 1V @ 394µA | 7 nC @ 4.5 V | ±8V | 490 pF @ 10 V | - | 370mW (Ta) | -40°C ~ 85°C (TA) | - | - | Surface Mount | ULGA004-W-1010-RA01 |
|
FK3P02110LMOSFET N CH 24V 3A PMCP |
5,508 | - |
|
Datasheet | - | 3-SMD, Non-Standard | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 3A (Ta) | 2.5V | 20mOhm @ 3A, 2.5V | 1.4V @ 1mA | - | ±12V | 1500 pF @ 10 V | - | - | 150°C (TJ) | - | - | Surface Mount | 3-PMCP |
|

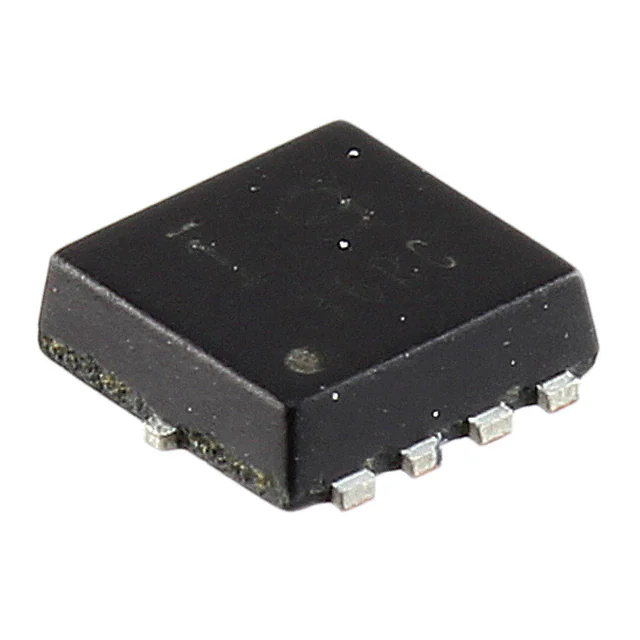

SK830321KLMOSFET N-CH 30V 7A/18A 8HSSO |
4,979 | - |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta), 18A (Tc) | 4.5V, 10V | 24mOhm @ 4.5A, 10V | 3V @ 519µA | 3.9 nC @ 4.5 V | ±20V | 658 pF @ 10 V | - | 2W (Ta), 13W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSSO8-F3-B |
|
MTM761110LBFMOSFET P-CH 12V 4A WSMINI6 |
1,149 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 4A (Ta) | 1.8V, 4.5V | 34mOhm @ 1A, 4.5V | 1V @ 1mA | - | ±8V | 1400 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | WSMini6-F1-B |
|
FK6K02010LMOSFET N-CH 20V 4.5A WSMINI6 |
2,794 | - |
|
Datasheet | - | 6-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 2.5V, 4V | 17.5mOhm @ 2A, 4.5V | 1.3V @ 1mA | - | ±10V | 1730 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | - | - | Surface Mount | WSMini6-F1-B |
|
|
SK8403170LMOSFET N-CH 30V 16A 8HSSO |
1,546 | - |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 59A (Tc) | 4.5V, 10V | 4.1mOhm @ 12A, 10V | 3V @ 2.56mA | 17 nC @ 4.5 V | ±20V | 2940 pF @ 10 V | - | 2W (Ta), 24.6W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSSO8-F1-B |
|

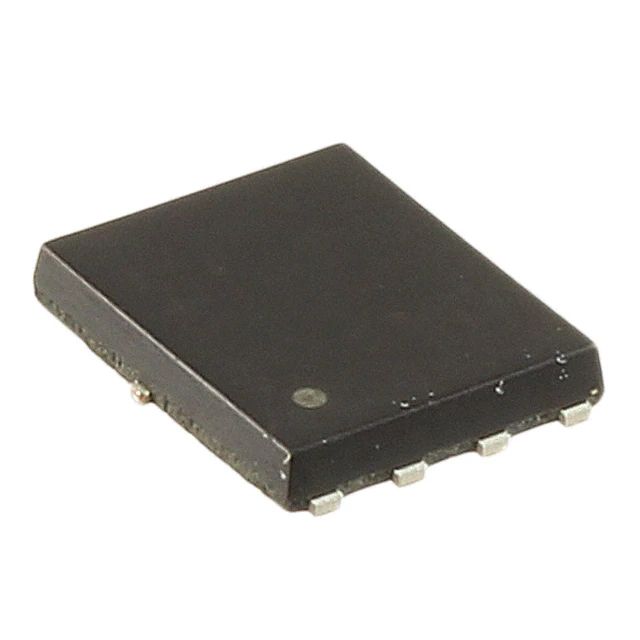

SK8603140LMOSFET N-CH 30V 25A 8HSO |
2,930 | - |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Ta), 103A (Tc) | 4.5V, 10V | 2.2mOhm @ 23A, 10V | 3V @ 5.85mA | 37 nC @ 4.5 V | ±20V | 6860 pF @ 10 V | - | 2.5W (Ta), 40W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
|
SK8403190LMOSFET N-CH 30V 10A 8HSSO |
69 | - |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta), 19A (Tc) | 4.5V, 10V | 10mOhm @ 70A, 10V | 3V @ 1.01mA | 6.3 nC @ 4.5 V | ±20V | 1092 pF @ 10 V | - | 2W (Ta), 19W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSSO8-F1-B |
|
2SJ0674G0LMOSFET P-CH 30V 100MA SSSMINI3 |
2,482 | - |
|
Datasheet | - | SOT-723 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 18Ohm @ 10mA, 4V | 1.5V @ 1µA | - | ±12V | 12 pF @ 3 V | - | 100mW (Ta) | 125°C (TJ) | - | - | Surface Mount | SSSMini3-F2 |
|
2SJ053600LMOSFET P-CH 30V 100MA SMINI3-G1 |
4,995 | - |
|
Datasheet | - | SC-70, SOT-323 | Tape & Reel (TR) | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 5V | 75Ohm @ 10mA, 5V | 2V @ 1µA | - | ±20V | - | - | 150mW (Ta) | 150°C (TJ) | - | - | Surface Mount | SMini3-G1 |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
