FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2SK303100LMOSFET N-CH 100V 15A U-G1 |
2,618 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 4V, 10V | 135mOhm @ 8A, 10V | 2.5V @ 1mA | - | ±20V | 300 pF @ 10 V | - | 1W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-G1 |
|
SK8603170LMOSFET N-CH 30V 20A/59A 8HSO |
7,322 | - |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 20A (Ta), 59A (Tc) | 4.5V, 10V | 4.1mOhm @ 14A, 10V | 3V @ 2.56mA | 17 nC @ 4.5 V | ±20V | 2940 pF @ 10 V | - | 2.8W (Ta), 24W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
MTMF82310BBFMOSFET N-CH 30V 18A SO8-F1-B |
8,332 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta) | 4.5V, 10V | 4.2mOhm @ 5A, 10V | 2.5V @ 1mA | - | ±20V | 6000 pF @ 10 V | - | - | 150°C (TJ) | - | - | Surface Mount | SO8-F1-B |
|
SK8403160LMOSFET N-CH 30V 18A 8HSSO |
9,519 | - |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18A (Ta), 70A (Tc) | 4.5V, 10V | 3.3mOhm @ 14.5A, 10V | 3V @ 3.35mA | 22 nC @ 4.5 V | ±20V | 3920 pF @ 10 V | - | 2W (Ta), 28W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSSO8-F1-B |
|
|
SK8603160LMOSFET N-CH 30V 22A/70A 8HSO |
8,971 | - |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta), 70A (Tc) | 4.5V, 10V | 3.3mOhm @ 17A, 10V | 3V @ 3.35mA | 22 nC @ 4.5 V | ±20V | 3920 pF @ 10 V | - | 2.8W (Ta), 28W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
FK8V03040LMOSFET N CH 33V 10A WMINI8-F1 |
8,788 | - |
|
Datasheet | - | 8-SMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 33 V | 10A (Ta) | 4.5V, 10V | 10mOhm @ 5A, 10V | 2.5V @ 1.12mA | 7.2 nC @ 4.5 V | ±20V | 750 pF @ 10 V | - | 1W (Ta) | 150°C (TJ) | - | - | Surface Mount | WMini8-F1 |
|
|
SK8603150LMOSFET N-CH 30V 26A/89A 8HSO |
3,780 | - |
|
Datasheet | - | 8-PowerSMD, Flat Leads | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Ta), 89A (Tc) | 4.5V, 10V | 2.5mOhm @ 20A, 10V | 3V @ 4.38mA | 28 nC @ 4.5 V | ±20V | 5180 pF @ 10 V | - | 2.9W (Ta), 34W (Tc) | 150°C (TJ) | - | - | Surface Mount | HSO8-F4-B |
|
2SK302200LMOSFET N-CH 60V 5A U-G2 |
4,928 | - |
|
Datasheet | - | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 5A (Tc) | 4V, 10V | 130mOhm @ 3A, 10V | 2.5V @ 1mA | - | ±20V | 220 pF @ 10 V | - | 1W (Ta), 10W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-G2 |
|
2SK326800LMOSFET N-CH 100V 15A U-DL |
6,666 | - |
|
Datasheet | - | TO-252-4, DPAK (3 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 10V | 100mOhm @ 12A, 10V | 4V @ 1mA | - | ±20V | 960 pF @ 10 V | - | 1W (Ta), 20W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-DL |
|

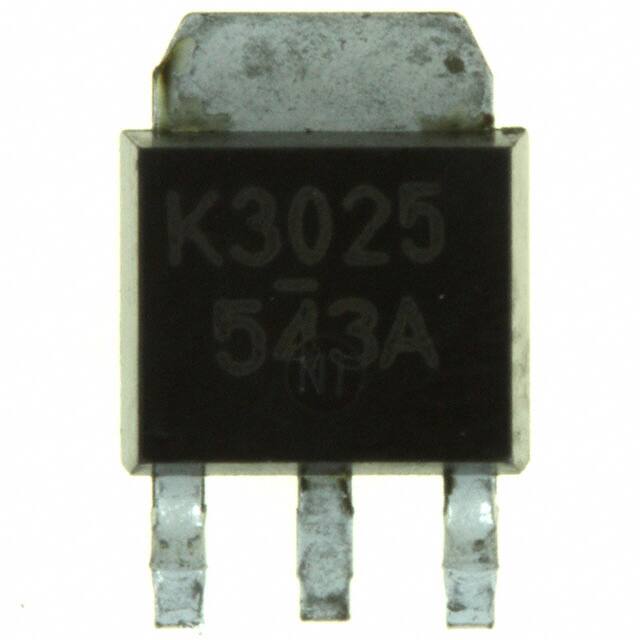

2SK302500LMOSFET N-CH 60V 30A U-DL |
7,920 | - |
|
Datasheet | - | TO-252-4, DPAK (3 Leads + Tab) | Tape & Reel (TR) | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tc) | 4V, 10V | 40mOhm @ 15A, 10V | 2.5V @ 1mA | - | ±20V | 1200 pF @ 10 V | - | 1W (Ta), 25W (Tc) | 150°C (TJ) | - | - | Surface Mount | U-DL |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
