FETs, MOSFETs
Compare the current FETs, MOSFETs FETs, MOSFETs selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | FET Feature | Power Dissipation (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFP360LCMOSFET N-CH 400V 23A TO247-3 |
3,489 | - |
|
Datasheet | - | TO-247-3 | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 23A (Tc) | 10V | 200mOhm @ 14A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±30V | 3400 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
2N6660MOSFET N-CH 60V 990MA TO205AD |
4,656 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 990mA (Tc) | 5V, 10V | 3Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-205AD (TO-39) |
|
|
2N6660-E3MOSFET N-CH 60V 990MA TO205AD |
5,074 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Bulk | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 990mA (Tc) | 5V, 10V | 3Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-205AD (TO-39) |
|
IRFPS40N50LMOSFET N-CH 500V 46A SUPER247 |
5,067 | - |
|
Datasheet | - | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 10V | 100mOhm @ 28A, 10V | 5V @ 250µA | 380 nC @ 10 V | ±30V | 8110 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
IRFPS38N60LMOSFET N-CH 600V 38A SUPER247 |
5,585 | - |
|
Datasheet | - | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 38A (Tc) | 10V | 150mOhm @ 23A, 10V | 5V @ 250µA | 320 nC @ 10 V | ±30V | 7990 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
|
IRFPS40N60KMOSFET N-CH 600V 40A SUPER247 |
5,081 | - |
|
Datasheet | - | TO-274AA | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 40A (Tc) | 10V | 130mOhm @ 24A, 10V | 5V @ 250µA | 330 nC @ 10 V | ±30V | 7970 pF @ 25 V | - | 570W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|

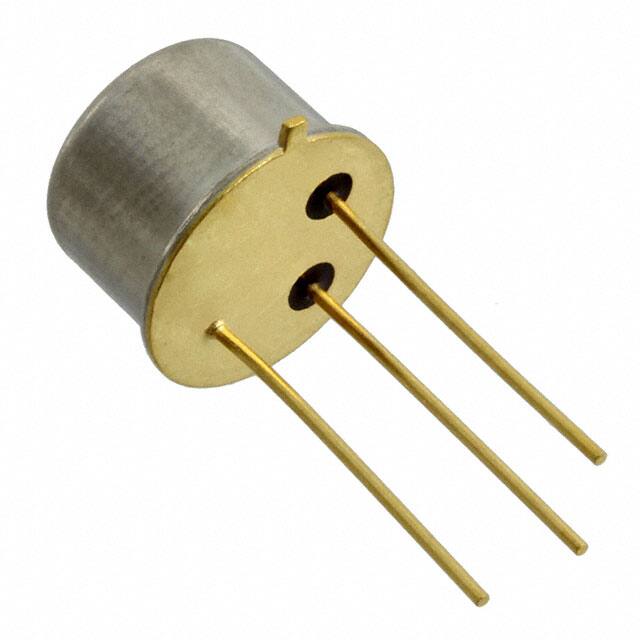

2N6661MOSFET N-CH 90V 860MA TO39 |
2,269 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
|
2N6661-E3MOSFET N-CH 90V 860MA TO39 |
9,232 | - |
|
Datasheet | - | TO-205AD, TO-39-3 Metal Can | Tube | Obsolete | N-Channel | MOSFET (Metal Oxide) | 90 V | 860mA (Tc) | 5V, 10V | 4Ohm @ 1A, 10V | 2V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 725mW (Ta), 6.25W (Tc) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-39 |
|
3N163-2MOSFET P-CH 40V 50MA TO72 |
7,579 | - |
|
Datasheet | - | TO-206AF, TO-72-4 Metal Can | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 50mA (Ta) | 20V | 250Ohm @ 100µA, 20V | 5V @ 10µA | - | ±30V | 3.5 pF @ 15 V | - | 375mW (Ta) | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-72 |
|
|
VP0300B-E3MOSFET P-CH 30V 0.32A TO-205 |
3,321 | - |
|
Datasheet | - | - | Tube | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 320mA (Ta) | - | 2.5Ohm @ 1A, 12V | 4.5V @ 1mA | - | - | 150 pF @ 15 V | - | - | - | - | - | - | - |
FETs, MOSFETs FAQ
How can I narrow the current FETs, MOSFETs selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete FETs, MOSFETs parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
