Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PFR5101J250J11L4BULKCAP FILM 100PF 5% 250VDC RADIAL |
1,320 | - |
|
Datasheet | Radial | 100 pF | ±5% | 160V | 250V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75PI3100AA30JCAP FILM 0.1UF 5% 630VDC RADIAL |
1,242 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KN368000M2KCAP FILM 0.68UF 10% 560VDC RAD |
1,178 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R76UI210050H7JCAP FILM 10000PF 5% 2KVDC RADIAL |
1,020 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 64 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.512" W (18.00mm x 13.00mm) | 0.476" (12.10mm) | PC Pins | - | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
F862DJ394K310ZV054CAP FILM 0.39UF 10% 630VDC RAD |
475 | - |
|
Datasheet | Radial | 0.39 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
LDEEA2100KA0N00CAP FILM 10000PF 10% 100VDC 1206 |
5,737 | - |
|
Datasheet | 1206 (3216 Metric) | 10000 pF | ±10% | 63V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.067" W (3.30mm x 1.70mm) | 0.043" (1.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PHE840EX6220MB06R17CAP FILM 0.22UF 20% 760VDC RAD |
443 | - |
|
Datasheet | Radial | 0.22 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R60EI4220AA30JCAP FILM 2.2UF 5% 100VDC RADIAL |
382 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R75GI368050H0JCAP FILM 0.68UF 5% 160VDC RADIAL |
363 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

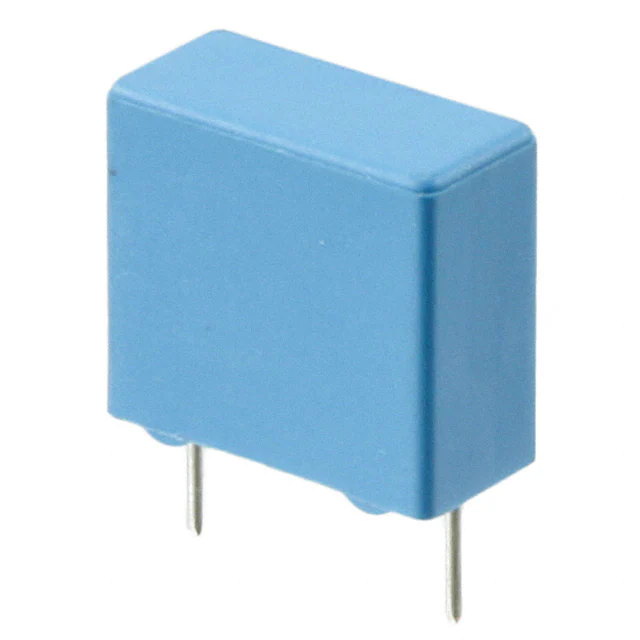

PHE450HA6100JR05CAP FILM 0.1UF 5% 250VDC RADIAL |
4,001 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
