Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AKOBU4270A3YJFILM, RADIAL, METALLIZED POLYPRO |
652 | - |
|
Datasheet | Radial | 2.7 µF | ±5% | - | 900V | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 135°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.130" (28.70mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Long Life, Low ESL |
|
LDEDD4100MA0N00CAP FILM 1UF 20% 63VDC 2220 |
4,653 | - |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±20% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
PME295RB4470MR19T0CAP FILM 4700PF 20% 480VAC RAD |
2,649 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
SMR5224J100J06L16.5CBULKCAP FILM 0.22UF 5% 100VDC RADIAL |
903 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 63V | 100V | Polyphenylene Sulfide (PPS), Metallized | - | -55°C ~ 150°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.512" (13.00mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
|
C4AQSBU4150A1XJCAP FILM 1.5UF 5% 1.5KVDC RADIAL |
983 | - |
|
Datasheet | Radial | 1.5 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | 17.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|

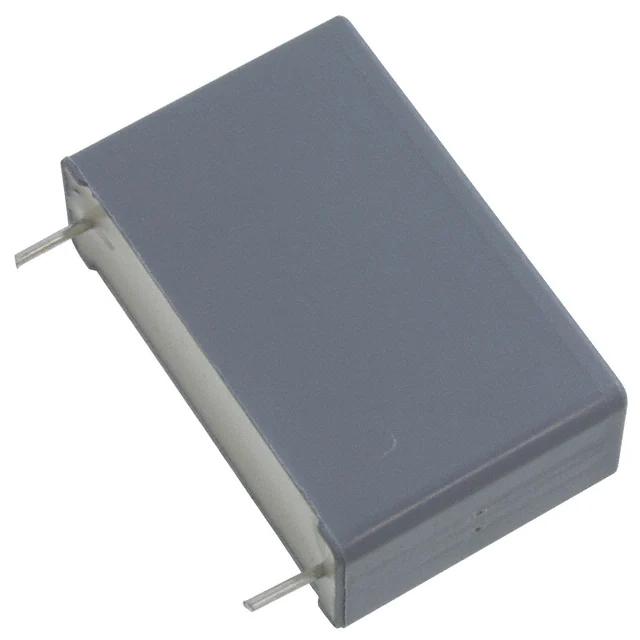

R73UR2150SE00JCAP FILM 0.015UF 5% 2KVDC RADIAL |
634 | - |
|
Datasheet | Radial | 0.015 µF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R76PI31004030JCAP FILM 0.1UF 5% 630VDC RADIAL |
424 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
C4AQJBU4330M1WJCAP FILM 3.3UF 5% 700VDC RADIAL |
601 | - |
|
Datasheet | Radial | 3.3 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 17 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
R46KR4220JHM2MCAP FILM 2.2UF 20% 560VDC RADIAL |
416 | - |
|
Datasheet | Radial | 2.2 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE840ED7150MD19R06L2CAP FILM 1.5UF 20% 760VDC RADIAL |
2,367 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 300V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
