Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R82CC4470AA30KCAP FILM 4.7UF 10% 50VDC RADIAL |
2,088 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
LDEIF3470KA0N00CAP FILM 0.47UF 10% 250VDC 4030 |
272 | - |
|
Datasheet | 4030 (10276 Metric) | 0.47 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.413" L x 0.311" W (10.50mm x 7.90mm) | 0.217" (5.50mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R71VN433050H6KFILM, RADIAL, PULSE, SINGLE META |
730 | - |
|
Datasheet | Radial | 3.3 µF | ±10% | 200V | 520V | Polypropylene (PP), Metallized | 15 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
PHE448RB5100JR06CAP FILM 10000PF 5% 1.6KVDC RAD |
613 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PHE450PD5470JR06L2CAP FILM 0.047UF 5% 1KVDC RADIAL |
832 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.256" W (26.00mm x 6.50mm) | 0.571" (14.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
C4AQQLU4250A12JCAP FILM 2.5UF 5% 1.1KVDC RADIAL |
266 | - |
|
Datasheet | Radial | 2.5 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 16.1 mOhms | -55°C ~ 105°C | Through Hole | 1.260" L x 0.945" W (32.00mm x 24.00mm) | 0.598" (15.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
R586N322050T0KCAP FILM 600VAC(X1) 0.22 UF 10% |
166 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 600V | 1200V (1.2kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.799" (20.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|

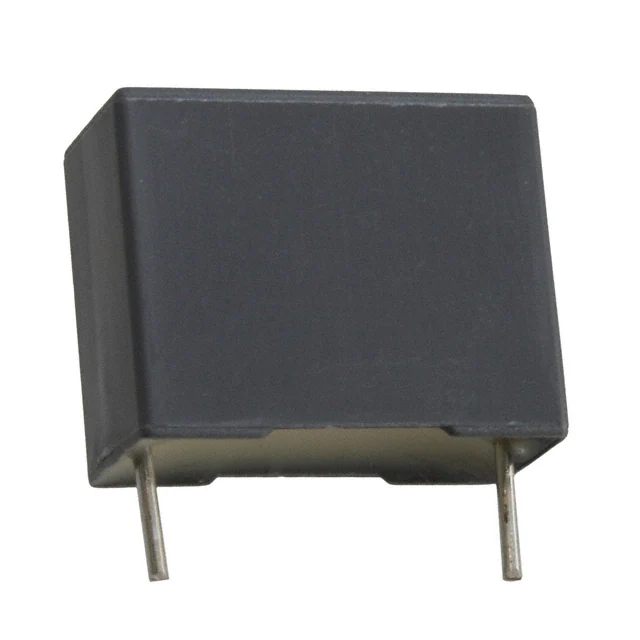

R60DI4470AA30JCAP FILM 4.7UF 5% 63VDC RADIAL |
541 | - |
|
Datasheet | Radial | 4.7 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R463R422050H7KCAP FILM 2.2UF 10% 630VDC RADIAL |
527 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | High Temperature |
|
F863FL225K310ALW0LCAP FILM 2.2UF 10% 630VDC RADIAL |
108 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.988" (25.10mm) | PC Pins | 1.083" (27.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
