Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C870ZF35500AA0JCAP FILM 50UF 5% 470VAC RADIAL |
179 | - |
|
Datasheet | Radial, Can | 50 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | - | - | Quick Connect - 0.250" (6.3mm) | - | Motor Run | - | - |
|
C4AEGBW5500A3LJCAP FILM 50UF 5% 450VDC RADIAL |
108 | - |
|
Datasheet | Radial - 4 Leads | 50 µF | ±5% | - | 450V | Polypropylene (PP), Metallized | 2.5 mOhms | -40°C ~ 85°C | Through Hole | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | PC Pins | 1.476" (37.50mm) | DC Link, DC Filtering; High Frequency, Switching | - | - |
|
R60DW6100AA50KCAP FILM 100UF 10% 63VDC RAD |
112 | - |
|
Datasheet | Radial | 100 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 1.634" L x 0.787" W (41.50mm x 20.00mm) | 1.579" (40.10mm) | PC Pins | 1.476" (37.50mm) | Automotive | - | - |
|
C4AQJEW6110M3AJCAP FILM 110UF 5% 700VDC RADIAL |
102 | - |
|
Datasheet | Radial - 4 Leads | 110 µF | ±5% | - | 700V | Polypropylene (PP), Metallized | 2.2 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.217" (56.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | Low ESL |
|
C878AG35800AA0JCAP FILM 80UF 5% 470VAC RADIAL |
188 | - |
|
Datasheet | Radial, Can | 80 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 5.315" (135.00mm) | Quick Connect - 0.250" (6.3mm) | 0.528" (13.40mm) | Motor Run | - | - |
|
JSNDK5470KB6L0CAP FILM 47UF 10% 63VDC SMD |
327 | - |
|
Datasheet | SMD, J-Lead | 47 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 0.846" W (17.30mm x 21.50mm) | 0.606" (15.40mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|
|
C44AMFP5100ZD0JCAP FILM 10UF 5% 850VDC RADIAL |
143 | - |
|
Datasheet | Radial, Can | 10 µF | ±5% | 450V | 850V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 1.969" Dia (50.00mm) | 4.055" (103.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44AHGP6100ZA0JCAP FILM 100UF 5% 600VDC RADIAL |
50 | - |
|
Datasheet | Radial, Can | 100 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.992" Dia (76.00mm) | 5.433" (138.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|

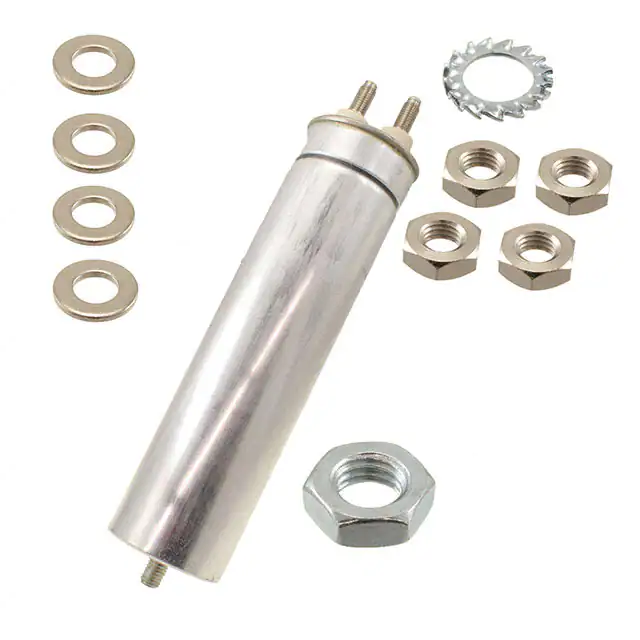

C44PUGR5150RASKCAP FILM 15UF 10% 1.7KVDC RADIAL |
28 | - |
|
Datasheet | Radial, Can | 15 µF | ±10% | 780V | 1700V (1.7kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 5.866" (149.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
C4DEIPQ6100A8TKCAP FILM 100UF 10% 800VDC RADIAL |
37 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | - | 800V | Polypropylene (PP), Metallized | 0.9 mOhms | -40°C ~ 85°C | Chassis Mount | 3.307" Dia (84.00mm) | 2.598" (66.00mm) | Threaded, Male | 1.772" (45.00mm) | DC Link, DC Filtering | - | Low ESL |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
