Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE850EA4470MA03R17CAP FILM 4700PF 20% 1.25KVDC RAD |
23,332 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | Y2 | - |
|
R46KI368000P0KCAP FILM 0.68UF 10% 560VDC RAD |
14,660 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R413F147050T1KCAP FILM 4700PF 10% 1.5KVDC RAD |
7,229 | - |
|
Datasheet | Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R463I310040M1MCAP FILM 0.1UF 20% 630VDC RAD |
6,349 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R413I147050T0KCAP FILM 4700PF 10% 1.5KVDC RAD |
4,468 | - |
|
Datasheet | Radial | 4700 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
R413I2220CKM1KCAP FILM 0.022UF 10% 1KVDC RAD |
2,188 | - |
|
Datasheet | Radial | 0.022 µF | ±10% | 300V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|

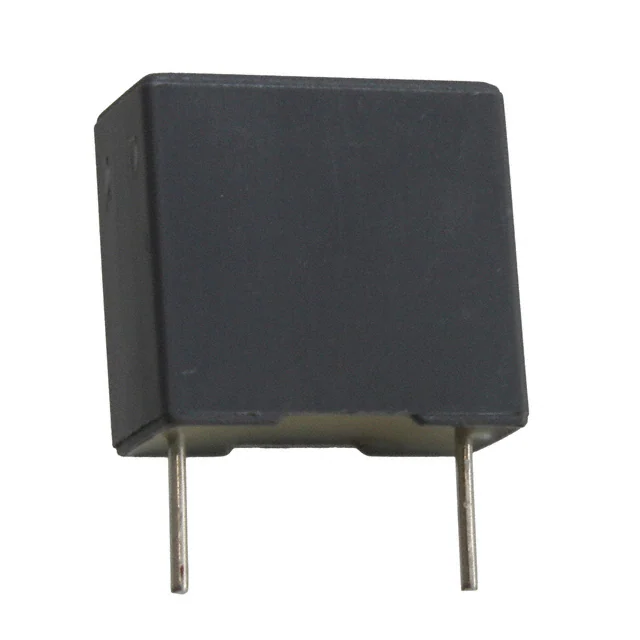

R463F310050M1MCAP FILM 0.1UF 20% 630VDC RADIAL |
1,593 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
R474I2470CKA2MCAP FILM 0.047UF 20% 1KVDC RAD |
5,749 | - |
|
Datasheet | Radial | 0.047 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R46KF210000N0KCAP FILM 10000PF 10% 560VDC RAD |
21,714 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.157" W (13.00mm x 4.00mm) | 0.358" (9.10mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R413I210050T0KCAP FILM 10000PF 10% 1.5KVDC RAD |
4,166 | - |
|
Datasheet | Radial | 10000 pF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
