Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PHE426HJ6100JR05CAP FILM 0.1UF 5% 250VDC RADIAL |
28,122 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R71XF347050H0MFILM, RADIAL, PULSE, SINGLE META |
5,681 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 160V | 450V | Polypropylene (PP), Metallized | 42 mOhms | -55°C ~ 125°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency; High Pulse, DV/DT; Power Factor Correction (PFC) | AEC-Q200 | - |
|
R76UI01004040JCAP FILM 100PF 5% 2KVDC RADIAL |
5,179 | - |
|
Datasheet | Radial | 100 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.157" W (18.00mm x 4.00mm) | 0.398" (10.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PHE426DJ6100JR05CAP FILM 0.1UF 5% 100VDC RADIAL |
2,745 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.433" (11.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R75PI310050H3JCAP FILM 0.1UF 5% 630VDC RADIAL |
1,726 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 15.9 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

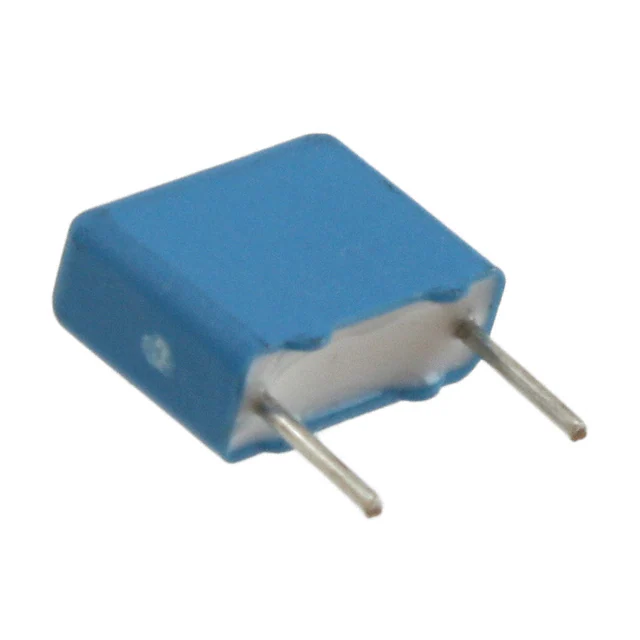

PHE450KK5100JR05CAP FILM 10000PF 5% 400VDC RAD |
4,091 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
R76PI24705050JFILM, RADIAL, PULSE, DOUBLE META |
2,902 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 400V | 630V | Polypropylene (PP), Metallized | 14 mOhms | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
F862BP224K310ZCAP FILM 0.22UF 10% 630VDC RAD |
1,989 | - |
|
Datasheet | Radial | 0.22 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R71VF31004030KCAP FILM 0.1UF 10% 520VDC RADIAL |
5,636 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 250V | 520V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.512" L x 0.197" W (13.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching; High Pulse, DV/DT; Power Factor Correction (PFC) | - | - |
|
PHE840MA6100KA04R17CAP FILM 0.1UF 10% 760VDC RADIAL |
2,261 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.512" L x 0.236" W (13.00mm x 6.00mm) | 0.472" (12.00mm) | PC Pins | 0.394" (10.00mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
