Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R463N410050N2MCAP FILM 1UF 20% 630VDC RADIAL |
6,233 | - |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R474I310050A1KCAP FILM 0.1UF 10% 1KVDC RADIAL |
4,154 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R46KN410000N1MCAP FILM 1UF 20% 560VDC RAD |
720 | - |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R76QN31505050JFILM, RADIAL, PULSE, DOUBLE META |
1,544 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 16 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
PME271Y447MR05CAP FILM 4700PF 20% 1KVDC RADIAL |
1,008 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.531" L x 0.201" W (13.50mm x 5.10mm) | 0.413" (10.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
PHE448SB4100JR06CAP FILM 1000PF 5% 2KVDC RADIAL |
7,597 | - |
|
Datasheet | Radial | 1000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.217" W (18.00mm x 5.50mm) | 0.413" (10.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
PHE840MX6330MB11R17CAP FILM 0.33UF 20% 760VDC RAD |
3,644 | - |
|
Datasheet | Radial | 0.33 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|

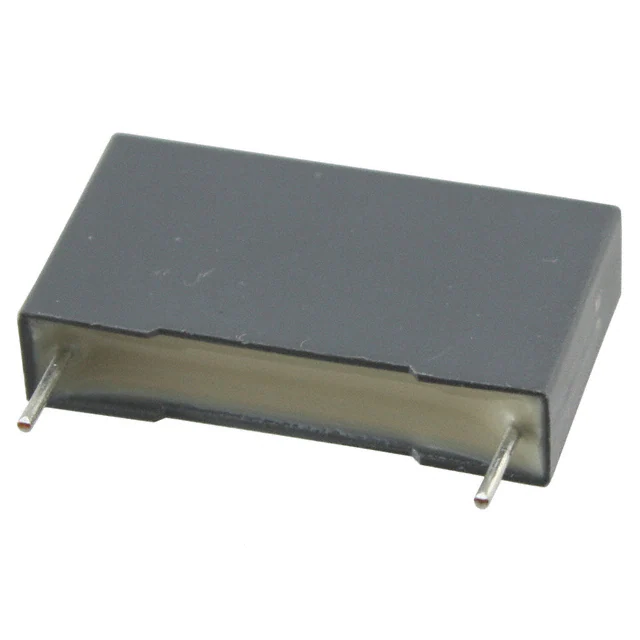

R60IN4100AA30KCAP FILM 1UF 10% 250VDC RADIAL |
917 | - |
|
Datasheet | Radial | 1 µF | ±10% | 160V | 250V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
R76TN2330SE40JCAP FILM 0.033UF 5% 1.6KVDC RAD |
195 | - |
|
Datasheet | Radial | 0.033 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 19 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDEDC3100KA5N00CAP FILM 0.1UF 10% 63VDC 1812 |
9,899 | - |
|
Datasheet | 1812 (4532 Metric) | 0.1 µF | ±10% | 40V | 63V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.185" L x 0.130" W (4.70mm x 3.30mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
