Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R413N247050T0KCAP FILM 0.047UF 10% 1.5KVDC RAD |
4,341 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 300V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.236" W (26.50mm x 6.00mm) | 0.594" (15.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1, Y2 | - |
|
PME271YA4150MR30CAP FILM 1500PF 20% 1KVDC RADIAL |
1,691 | - |
|
Datasheet | Radial | 1500 pF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.531" L x 0.154" W (13.50mm x 3.90mm) | 0.295" (7.50mm) | PC Pins | 0.402" (10.20mm) | EMI, RFI Suppression | Y2 | - |
|
PHE850EB5220MB06R17CAP FILM 0.022UF 1.25KVDC RAD |
32,198 | - |
|
Datasheet | Radial | 0.022 µF | ±20% | 300V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y2 | - |
|
R46KI3470JHP2MCAP FILM 0.47UF 20% 560VDC RAD |
482 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.693" (17.60mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
R73TI1100SE00KCAP FILM 1000PF 10% 1.6KVDC RAD |
1,902 | - |
|
Datasheet | Radial | 1000 pF | ±10% | 450V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R474N31005001KCAP FILM 0.1UF 10% 1KVDC RADIAL |
1,779 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R76UI02204000JCAP FILM 220PF 5% 2KVDC RADIAL |
2,694 | - |
|
Datasheet | Radial | 220 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

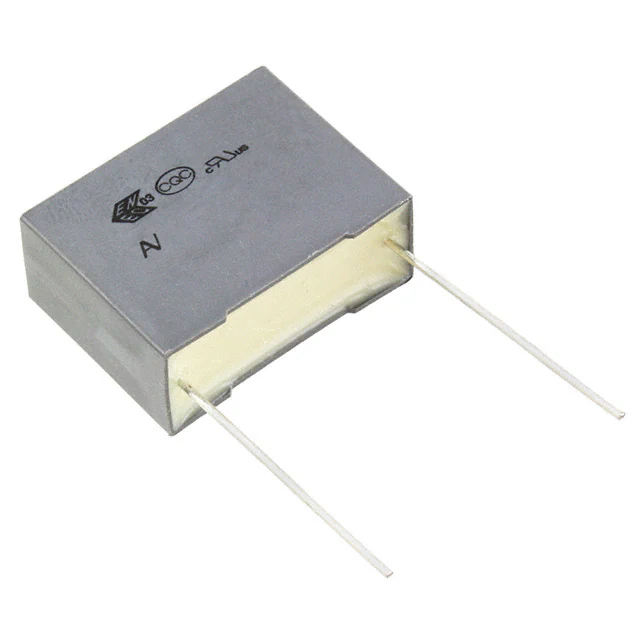

R46KN410050N1KCAP FILM 1UF 10% 560VDC RADIAL |
20,987 | - |
|
Datasheet | Radial | 1 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R46KN410000N2MCAP FILM 1UF 20% 560VDC RADIAL |
16,103 | - |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE426HB6680JR06CAP FILM 0.68UF 5% 250VDC RADIAL |
7,400 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.315" W (18.00mm x 8.00mm) | 0.591" (15.00mm) | PC Pins | 0.591" (15.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
