Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

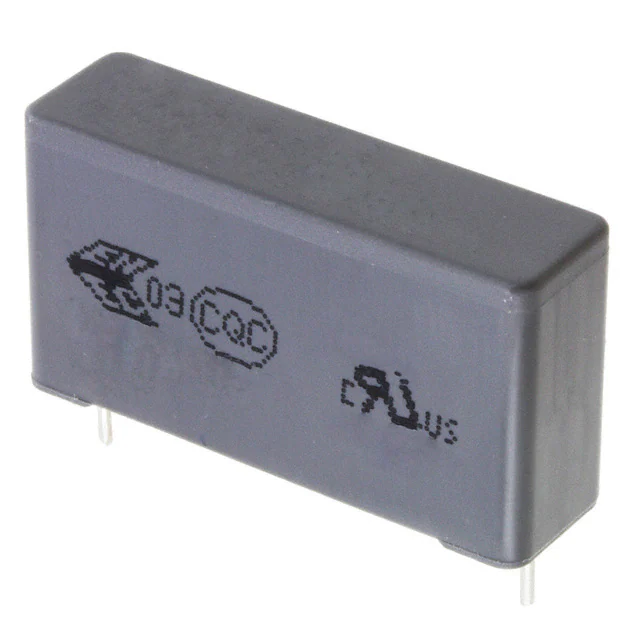

R46KR34700001MCAP FILM 0.47UF 20% 560VDC RAD |
2,271 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.354" W (32.00mm x 9.00mm) | 0.673" (17.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
R533N368050P0KCAP FILM 0.68UF 10% 630VDC RAD |
1,574 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.642" (16.30mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
LDECB3100JA0N00CAP FILM 0.1UF 5% 50VDC 1210 |
14,115 | - |
|
Datasheet | 1210 (3225 Metric) | 0.1 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.083" (2.10mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
A50MH3100AA60KCAP FILM 0.1UF 10% 400VDC AXIAL |
4,937 | - |
|
Datasheet | Axial | 0.1 µF | ±10% | 200V | 400V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.256" Dia x 0.551" L (6.50mm x 14.00mm) | - | PC Pins | - | Automotive | AEC-Q200 | - |
|
PFR5561F63J11L4BULKCAP FILM 560PF 1% 63VDC RADIAL |
3,553 | - |
|
Datasheet | Radial | 560 pF | ±1% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.177" W (7.20mm x 4.50mm) | 0.236" (6.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|

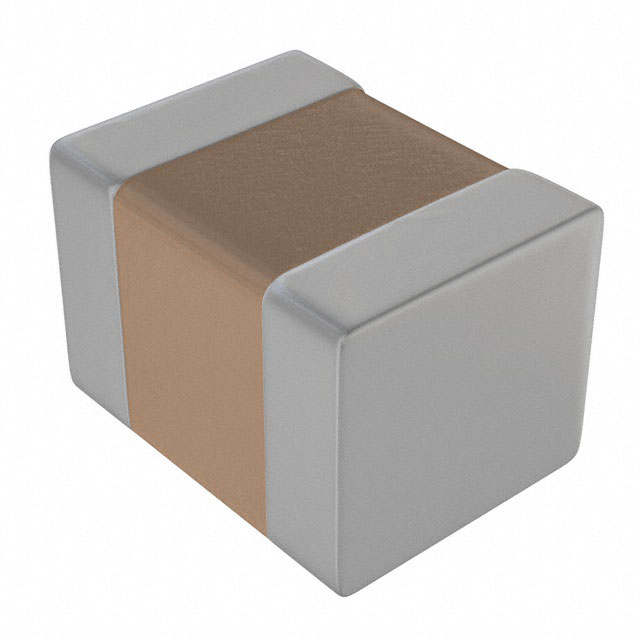

LDBCB2470JC5N0CAP FILM 0.047UF 5% 50VDC 1210 |
2,491 | - |
|
Datasheet | 1210 (3225 Metric) | 0.047 µF | ±5% | 40V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.130" L x 0.098" W (3.30mm x 2.50mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|

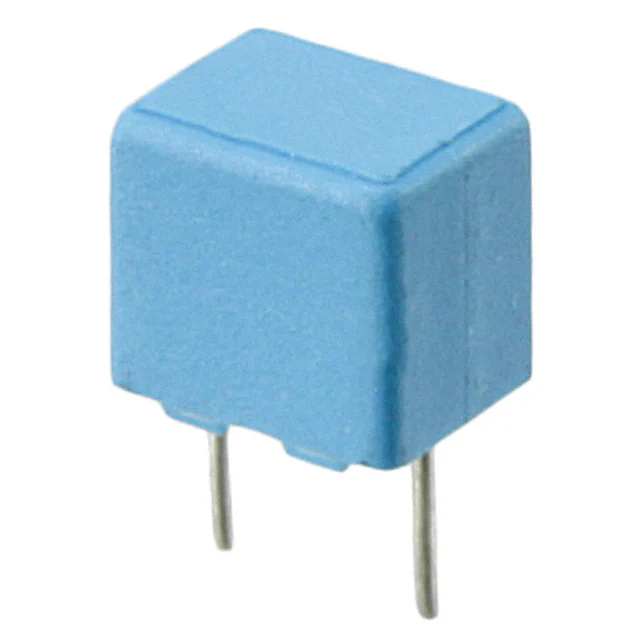

PFR5103J63J12L4BULKCAP FILM 10000PF 5% 63VDC RADIAL |
7,825 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 40V | 63V | Polypropylene (PP) | - | -55°C ~ 100°C | Through Hole | 0.283" L x 0.217" W (7.20mm x 5.50mm) | 0.276" (7.00mm) | PC Pins | 0.197" (5.00mm) | High Frequency, Switching; High Pulse, DV/DT | - | - |
|
R82CC4220DQ70KCAP FILM 2.2UF 10% 50VDC RADIAL |
4,096 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
R76TN24704040JCAP FILM 0.047UF 5% 1.6KVDC RAD |
10,920 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

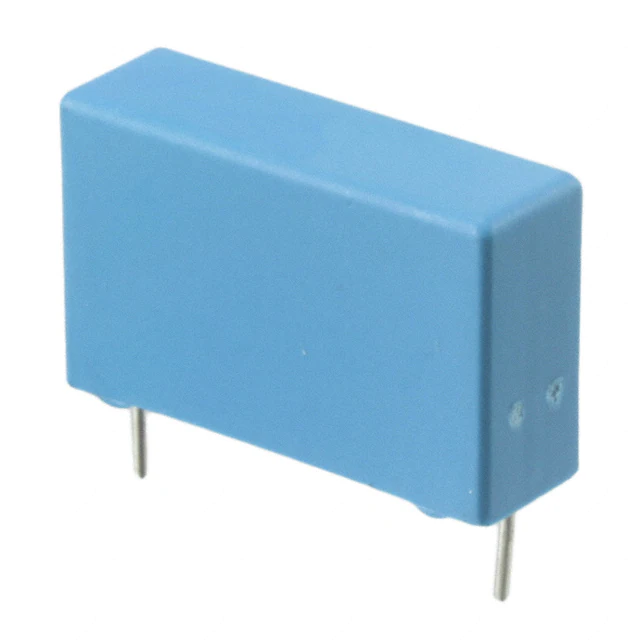

PHE840MY6470MD14R06L2CAP FILM 0.47UF 20% 760VDC RAD |
641 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.315" W (26.00mm x 8.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
