Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R60PI31004040KCAP FILM 0.1UF 10% 630VDC RADIAL |
499 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 220V | 630V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive | AEC-Q200 | - |
|
R76UI212050H4JCAP FILM 0.012UF 5% 2KVDC RAD |
436 | - |
|
Datasheet | Radial | 0.012 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | 159 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76II315050H3JCAP FILM 0.15UF 5% 250VDC RAD |
346 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 180V | 250V | Polypropylene (PP), Metallized | 17 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R76QI239050H4JCAP FILM 0.039UF 5% 1KVDC RAD |
61 | - |
|
Datasheet | Radial | 0.039 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 49 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R53BI26805000KCAP FILM 0.068UF 10% 800VDC RAD |
873 | - |
|
Datasheet | Radial | 0.068 µF | ±10% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.445" (11.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R4Y5I11005000KCAP FILM 500VAC Y1 1000PF RADIAL |
668 | - |
|
Datasheet | Radial | 1000 pF | ±10% | 500V | 3000V (3kV) | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.437" (11.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, Y1 | - |
|
PHE450MK3470JR05CAP FILM 470PF 5% 630VDC RADIAL |
349 | - |
|
Datasheet | Radial | 470 pF | ±5% | 300V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.394" L x 0.157" W (10.00mm x 4.00mm) | 0.315" (8.00mm) | PC Pins | 0.295" (7.50mm) | High Frequency, Switching | - | - |
|
R46KI368000P1MCAP FILM 0.68UF 20% 560VDC RAD |
325 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X2 | - |
|
|
R76QI2220JE40JCAP FILM 0.022UF 5% 1KVDC RADIAL |
260 | - |
|
Datasheet | Radial | 0.022 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 0.709" L x 0.236" W (18.00mm x 6.00mm) | 0.476" (12.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|

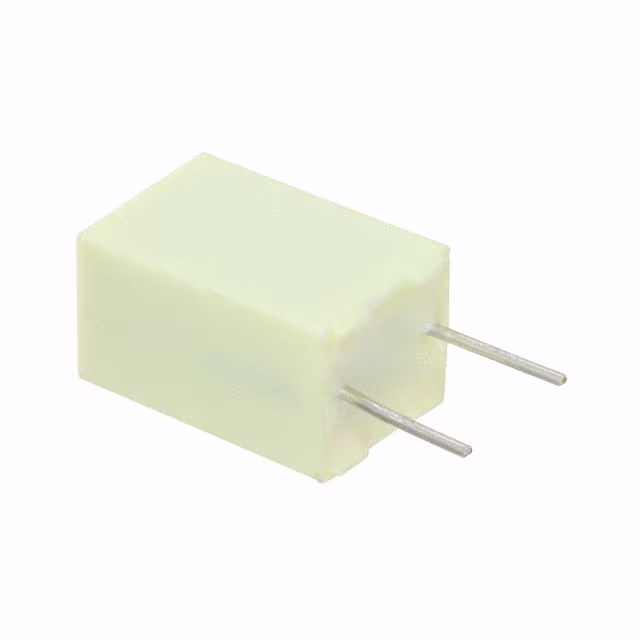

RSBDC4150AA10KCAP FILM 1.5UF 10% 63VDC RADIAL |
61 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Through Hole | 0.283" L x 0.236" W (7.20mm x 6.00mm) | 0.437" (11.10mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | High Temperature |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
