Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R73UI12204000JCAP FILM 2200PF 5% 2KVDC RADIAL |
99 | - |
|
Datasheet | Radial | 2200 pF | ±5% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.575" (14.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
F861DJ105M310LCAP FILM 1UF 20% 630VDC RADIAL |
775 | - |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R533N415050P1MCAP FILM 1.5UF 20% 630VDC RADIAL |
94 | - |
|
Datasheet | Radial | 1.5 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.740" (18.80mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R53BI347050S0MCAP FILM 0.47UF 20% 800VDC RAD |
41 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 350V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.760" (19.30mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
R75MN410050H3JCAP FILM 1UF 5% 400VDC RADIAL |
30 | - |
|
Datasheet | Radial | 1 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | 8 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R60QN31004030KCAP FILM 0.1UF 10% 1KVDC RADIAL |
40 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
PHE448RB4330JR06CAP FILM 3300PF 5% 1.6KVDC RAD |
86 | - |
|
Datasheet | Radial | 3300 pF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP) | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.256" W (18.00mm x 6.50mm) | 0.492" (12.50mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|
C4AF1BU4220T1XKFILM, POWER, METALLIZED POLYPROP |
95 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 250V | 500V | Polypropylene (PP), Metallized | 11.8 mOhms | -55°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200 | - |
|
MMK22.5475K100D15L4TRAYCAP FILM 4.7UF 10% 100VDC RADIAL |
51 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 63V | 100V | Polyester, Metallized | - | -55°C ~ 100°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|

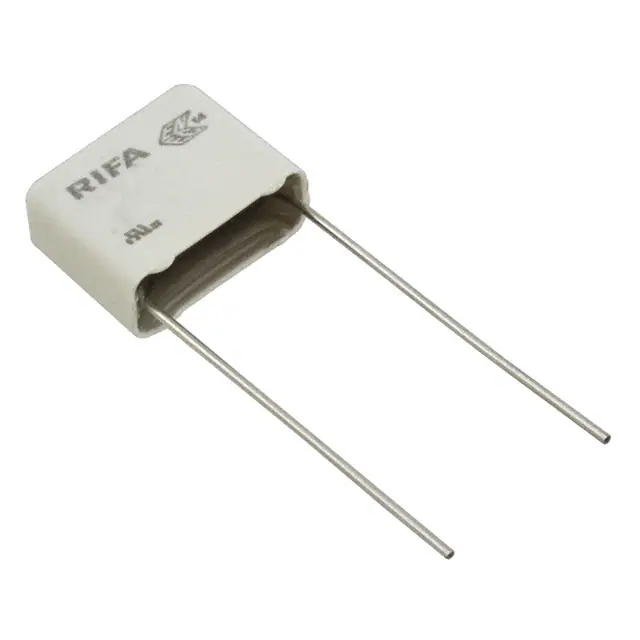

PME295RB4330MR30CAP FILM 3300PF 20% 480VAC RAD |
39 | - |
|
Datasheet | Radial | 3300 pF | ±20% | 480V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.571" (14.50mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
