Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
P295BQ472M500ACAP FILM 4700PF 20% 500VAC RAD |
104 | - |
|
Datasheet | Radial | 4700 pF | ±20% | 500V | - | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 0.709" L x 0.335" W (18.00mm x 8.50mm) | 0.630" (16.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | Y1 | - |
|
R76TN31004040JCAP FILM 0.1UF 5% 1.6KVDC RADIAL |
675 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 110°C | Through Hole | 1.043" L x 0.433" W (26.50mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
LDEIE3100KA5N00CAP FILM 0.1UF 10% 250VDC 2824 |
6,981 | - |
|
Datasheet | 2824 (7260 Metric) | 0.1 µF | ±10% | 120V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.114" (2.90mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
LDEQE2100KA5N00CAP FILM 10000PF 10% 1KVDC 2824 |
6,174 | - |
|
Datasheet | 2824 (7260 Metric) | 10000 pF | ±10% | 250V | 1000V (1kV) | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.287" L x 0.240" W (7.30mm x 6.10mm) | 0.134" (3.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|

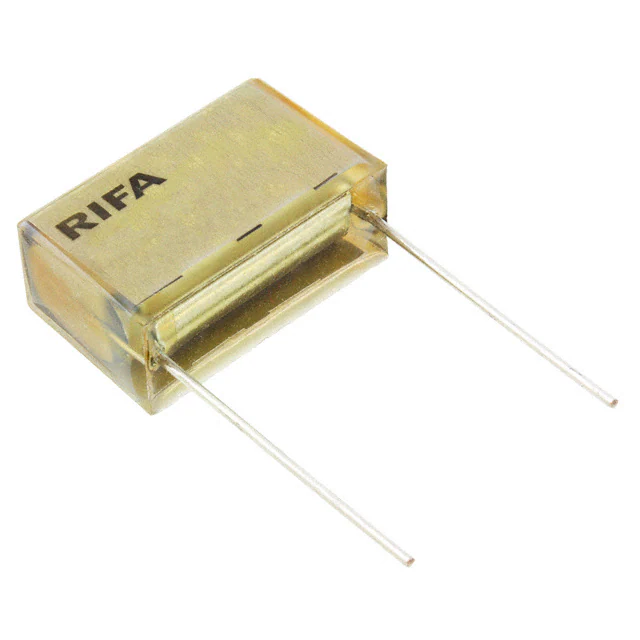

PME271MD6100MR30CAP FILM 0.1UF 20% 630VDC RADIAL |
147 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 275V | 630V | Paper, Metallized | - | -40°C ~ 110°C | Through Hole | 1.063" L x 0.315" W (27.00mm x 8.00mm) | 0.669" (17.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
PME261JC6100KR30CAP FILM 0.1UF 10% 1KVDC RADIAL |
234 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 500V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.445" W (24.00mm x 11.30mm) | 0.650" (16.50mm) | PC Pins | 0.799" (20.30mm) | General Purpose | - | - |
|
C4AQSBU4100A1WJCAP FILM 1UF 5% 1.5KVDC RADIAL |
912 | - |
|
Datasheet | Radial | 1 µF | ±5% | - | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.240" L x 0.433" W (31.50mm x 11.00mm) | 0.795" (20.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
PME271YD6100MR30CAP FILM 0.1UF 20% 1KVDC RADIAL |
450 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 300V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 115°C | Through Hole | 1.063" L x 0.394" W (27.00mm x 10.00mm) | 0.748" (19.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | Y2 | - |
|
R523R422050P0KCAP FILM 2.2UF 10% 630VDC RADIAL |
584 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.512" W (32.00mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 1.083" (27.50mm) | Automotive | AEC-Q200, X2 | - |
|
LDECD3470JA5N00CAP FILM 0.47UF 5% 50VDC 2220 |
5,846 | - |
|
Datasheet | 2220 (5750 Metric) | 0.47 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.094" (2.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
