Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C4AQCBU4560A1XJCAP FILM 5.6UF 5% 650VDC RADIAL |
776 | - |
|
Datasheet | Radial | 5.6 µF | ±5% | - | 650V | Polypropylene (PP), Metallized | 10.7 mOhms | -40°C ~ 105°C | Through Hole | 1.240" L x 0.512" W (31.50mm x 13.00mm) | 0.992" (25.20mm) | PC Pins | 1.083" (27.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
PHE426DJ5330FR17T0CAP FILM 0.033UF 1% 100VDC RAD |
5,045 | - |
|
Datasheet | Radial | 0.033 µF | ±1% | 63V | 100V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.138" W (7.20mm x 3.50mm) | 0.315" (8.00mm) | PC Pins | 0.197" (5.00mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|

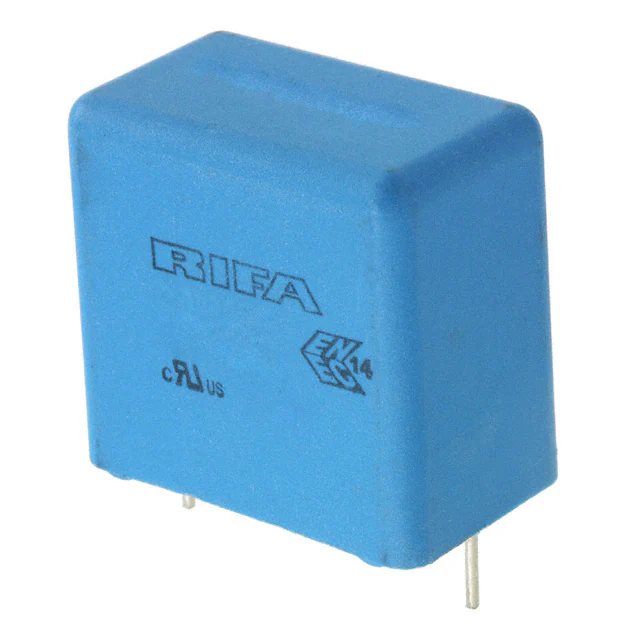

PHE844RD6470MR30L2CAP FILM 0.47UF 20% 1KVDC RADIAL |
1,986 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 480V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
R463R422050M1KCAP FILM 2.2UF 10% 630VDC RADIAL |
1,423 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.551" W (32.00mm x 14.00mm) | 1.106" (28.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
F861DU225M310LCAP FILM 2.2UF 20% 630VDC RADIAL |
2,719 | - |
|
Datasheet | Radial | 2.2 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.512" W (26.00mm x 13.00mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

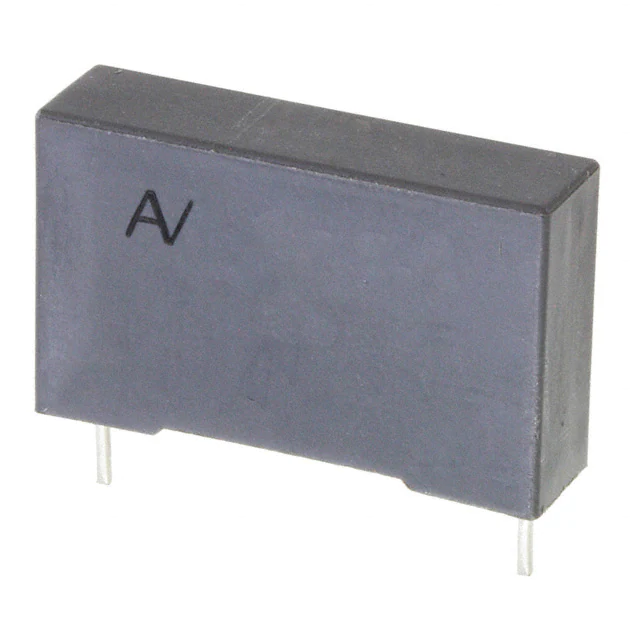

R75IN433050H4JCAP FILM 3.3UF 5% 250VDC RADIAL |
372 | - |
|
Datasheet | Radial | 3.3 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 7.2 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.512" W (26.50mm x 13.00mm) | 0.870" (22.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R82CC4470Z330KCAP FILM 4.7UF 10% 50VDC RADIAL |
1,479 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 30V | 50V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 105°C | Through Hole | 0.283" L x 0.283" W (7.20mm x 7.20mm) | 0.516" (13.10mm) | PC Pins | 0.197" (5.00mm) | Automotive | AEC-Q200 | - |
|
PHE450SD6100JR06L2CAP FILM 0.1UF 5% 2KVDC RADIAL |
401 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
PME271Y610MR30CAP FILM 0.1UF 20% 1KVDC RADIAL |
1,026 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 250V | 1000V (1kV) | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 1.201" L x 0.476" W (30.50mm x 12.10mm) | 0.748" (19.00mm) | PC Pins | 1.000" (25.40mm) | EMI, RFI Suppression | Y2 | - |
|
|
PHE450RD6150JR06L2CAP FILM 0.15UF 5% 1.6KVDC RAD |
127 | - |
|
Datasheet | Radial | 0.15 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.531" W (26.00mm x 13.50mm) | 0.906" (23.00mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
