Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

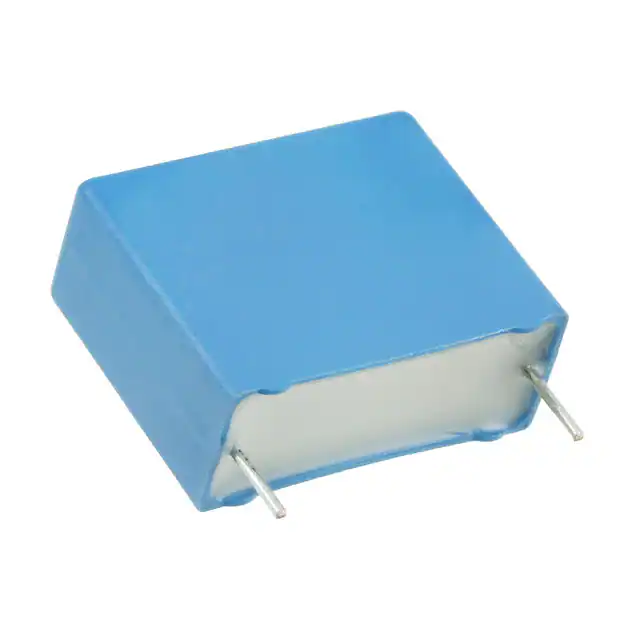

PHE845VD6100MR06L2CAP FILM 0.1UF 20% 1.5KVDC RAD |
6,936 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 760V | 1500V (1.5kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.433" W (26.00mm x 11.00mm) | 0.846" (21.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X1 | - |
|
C4GADUC5100AA1JCAP FILM 10UF 5% 250VDC AXIAL |
1 | - |
|
Datasheet | Axial | 10 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 0.787" Dia x 1.732" L (20.00mm x 44.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|
PHE844RR7220MR06L2CAP FILM 2.2UF 20% 1KVDC RADIAL |
7,462 | - |
|
Datasheet | Radial | 2.2 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.614" L x 0.827" W (41.00mm x 21.00mm) | 1.496" (38.00mm) | PC Pins | 1.476" (37.50mm) | EMI, RFI Suppression | X1 | - |
|
|
C4GAHUD5100AA3JCAP FILM 10UF 5% 600VDC AXIAL |
2,097 | - |
|
Datasheet | Axial | 10 µF | ±5% | 330V | 600V | Polypropylene (PP), Metallized | 5.3 mOhms | -40°C ~ 85°C | Through Hole | 1.358" Dia x 2.283" L (34.50mm x 58.00mm) | - | PC Pins | - | High Frequency, Switching | - | - |
|

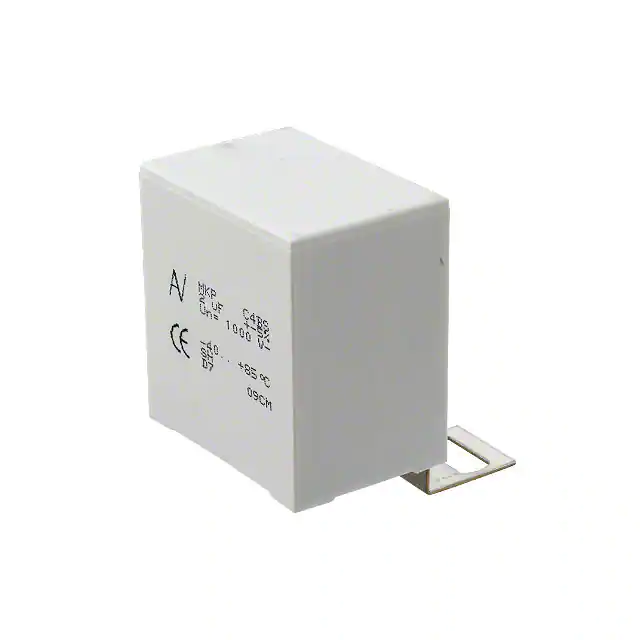

C4BSNBX4200ZBLJCAP FILM 2UF 5% 1KVDC SCREW |
3,423 | - |
|
Datasheet | Rectangular Box | 2 µF | ±5% | 600V | 1000V (1kV) | Polypropylene (PP), Metallized | 2 mOhms | -40°C ~ 85°C | Chassis Mount | 1.654" L x 1.181" W (42.00mm x 30.00mm) | 1.772" (45.00mm) | Screw Terminals | 0.866" (22.00mm) | DC Link, DC Filtering; Snubber | - | - |
|
C4AQQEW5650A3BJCAP FILM 65UF 5% 1.1KVDC RAD |
6,867 | - |
|
Datasheet | Radial - 4 Leads | 65 µF | ±5% | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | 2.3 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
|
C4AQIEW6100A3BJCAP FILM 100UF 5% 800VDC RAD |
8,547 | - |
|
Datasheet | Radial - 4 Leads | 100 µF | ±5% | - | 800V | Polypropylene (PP), Metallized | 1.9 mOhms | -55°C ~ 105°C | Through Hole | 2.264" L x 1.772" W (57.50mm x 45.00mm) | 2.571" (65.30mm) | PC Pins | 2.067" (52.50mm) | Automotive; DC Link, DC Filtering | AEC-Q200 | - |
|
JSNEJ5430KB6L0CAP FILM 43UF 10% 100VDC SMD |
6,692 | - |
|
Datasheet | SMD, J-Lead | 43 µF | ±10% | 63V | 100V | Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.681" L x 1.181" W (17.30mm x 30.00mm) | 0.701" (17.80mm) | - | - | DC Link, DC Filtering | - | Low ESR, Low ESL |
|

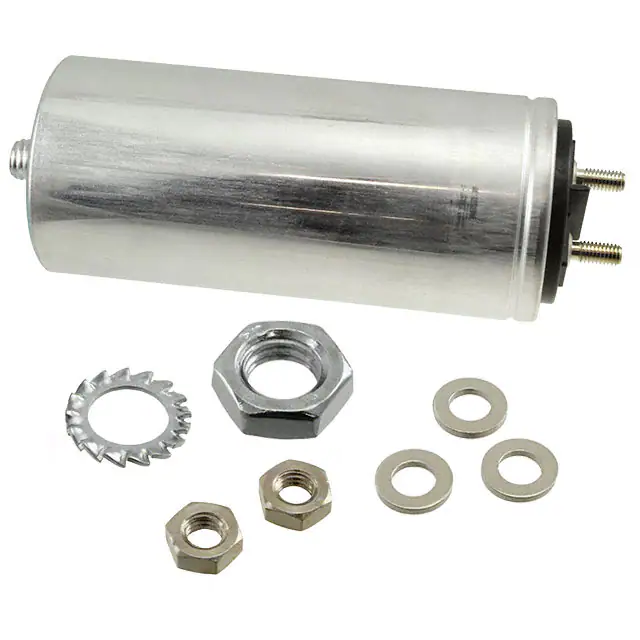

C44AFGP6100ZG0JCAP FILM 100UF 5% 400VDC RADIAL |
7,963 | - |
|
Datasheet | Radial, Can | 100 µF | ±5% | 250V | 400V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 2.362" Dia (60.00mm) | 5.512" (140.00mm) | Threaded, Male | 0.878" (22.30mm) | General Purpose | - | - |
|
C44PRGR5680RASKCAP FILM 68UF 10% 1.4KVDC RADIAL |
7,329 | - |
|
Datasheet | Radial, Can | 68 µF | ±10% | 640V | 1400V (1.4kV) | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
