Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
C9TS5MD5920AARXCAP FILM 92.2UF 415VAC RADIAL |
3,696 | - |
|
Datasheet | Radial, Can | 92.2 µF | -5%, +15% | 415V | - | Polypropylene (PP), Metallized | - | -25°C ~ 55°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 9.134" (232.00mm) | Terminal Block | 0.748" (19.00mm) | 3 Phase, Power Factor Correction (PFC) | - | - |
|
C44AJGR5750ZA0JCAP FILM 75UF 5% 700VDC RADIAL |
9 | - |
|
Datasheet | Radial, Can | 75 µF | ±5% | 400V | 700V | Polypropylene (PP), Metallized | 4 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 5.472" (139.00mm) | Threaded, Male | 1.378" (35.00mm) | General Purpose | - | - |
|
|
C44UOGQ6510F8SKCAP POLYPROP FILM CAN |
5,013 | - |
|
Datasheet | Radial, Can | 510 µF | ±10% | - | 900V | Polypropylene (PP), Metallized | 1.8 mOhms | -40°C ~ 90°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | 4.803" (122.00mm) | Threaded, Male | 1.248" (31.70mm) | General Purpose | - | Long Life |
|
C44UVGT6550M54KCAP FILM 550UF 10% 1.8KVDC RAD |
3,621 | - |
|
Datasheet | Radial, Can | 550 µF | ±10% | - | 1800V (1.8kV) | Polypropylene (PP), Metallized | 2.1 mOhms | -40°C ~ 85°C | Chassis, Stud Mount | 4.567" Dia (116.00mm) | 10.945" (278.00mm) | Threaded, Female | 1.969" (50.00mm) | DC Link, DC Filtering | - | - |
|
|
FLLE2050APVT5PV 600 VDC AND 1200 VDC 25 250 |
3 | - |
|
Datasheet | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
C44UQGT6420A8SXCAP FILM 420UF 1.1KVDC RADIAL |
5 | - |
|
Datasheet | Radial, Can | 420 µF | - | - | 1100V (1.1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 85°C | Chassis, Stud Mount | 3.346" Dia (85.00mm) | - | Threaded, Female | 1.248" (31.70mm) | DC Link, DC Filtering | - | Long Life |
|

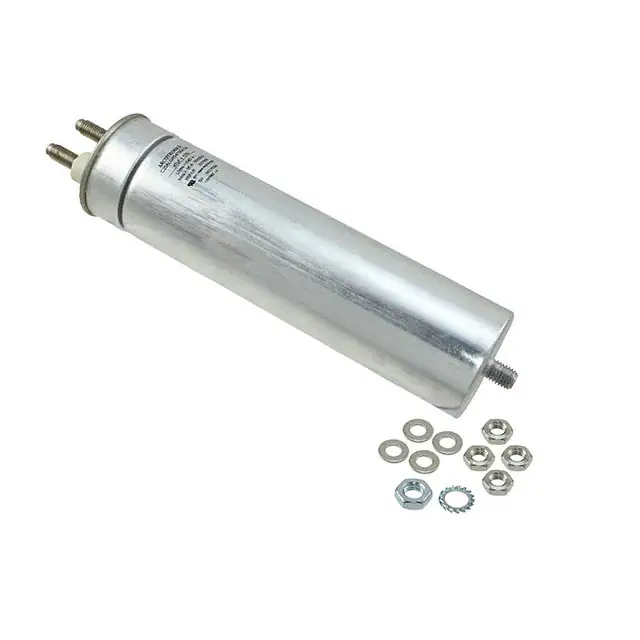

20ALGR5470AASKCAP FILM 47UF 10% 1.4KVDC RADIAL |
5,689 | - |
|
Datasheet | Radial, Can | 47 µF | ±10% | 640V | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C20ALGR5470AASKCAP FILM |
11 | - |
|
Datasheet | Radial, Can | 47 µF | ±10% | 640V | 1400V (1.4kV) | Polypropylene (PP), Metallized | 1.9 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.559" Dia (65.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.102" (28.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|

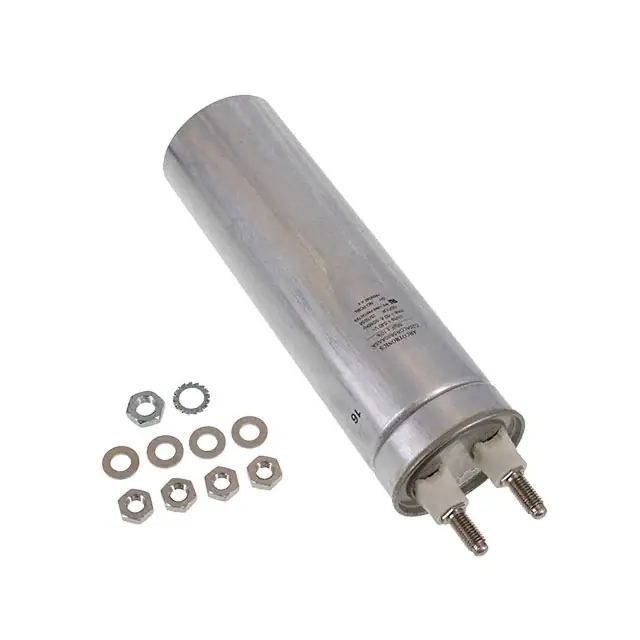

C20AKGR6100AASKCAP FILM 100UF 10% 750VDC RADIAL |
6 | - |
|
Datasheet | Radial, Can | 100 µF | ±10% | 550V | 750V | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 9.803" (249.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
|
|
C44PLGR6300AASJCAP FILM |
2,515 | - |
|
Datasheet | Radial, Can | 300 µF | ±5% | 700V | 1050V (1.05kV) | Polypropylene (PP), Metallized | 1.4 mOhms | -25°C ~ 70°C | Chassis, Stud Mount | 2.953" Dia (75.00mm) | 7.835" (199.00mm) | Threaded, Male | 1.378" (35.00mm) | Power Factor Correction (PFC); Commutation; EMI, RFI Suppression | - | Long Life |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
