Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

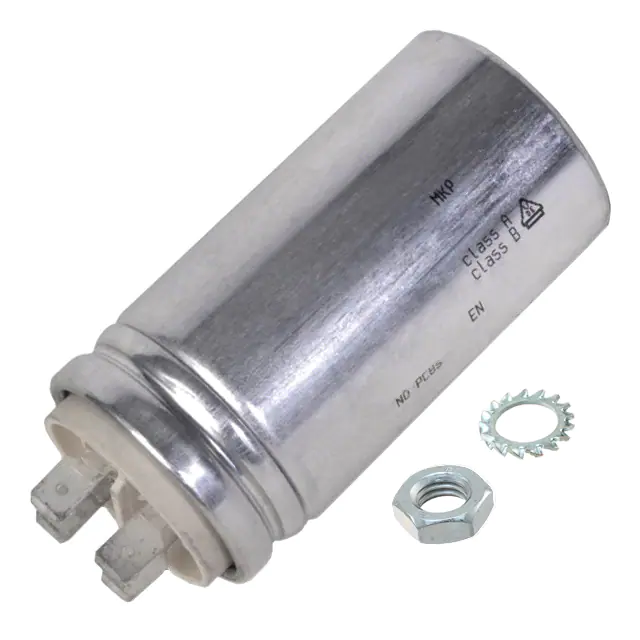

C878AF24250AA1JCAP FILM 2.5UF 5% 470VAC RADIAL |
158 | - |
|
Datasheet | Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.303" (58.50mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
PHE450TD5470JD19R06L2CAP FILM 0.047UF 5% 2.5KVDC RAD |
476 | - |
|
Datasheet | Radial | 0.047 µF | ±5% | 900V | 2500V (2.5kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.610" W (26.00mm x 15.50mm) | 0.965" (24.50mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
LDECD4100JA0N00CAP FILM 1UF 5% 50VDC 2220 |
6,681 | - |
|
Datasheet | 2220 (5750 Metric) | 1 µF | ±5% | 40V | 50V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.173" (4.40mm) | Solder Pads | - | Automotive | AEC-Q200 | High Temperature |
|
R60DN51005030JCAP FILM 10UF 5% 63VDC RADIAL |
550 | - |
|
Datasheet | Radial | 10 µF | ±5% | 40V | 63V | Polyester, Polyethylene Terephthalate (PET), Metallized | - | -55°C ~ 105°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200 | - |
|
PHE840MZ7100MF11R06L2CAP FILM 1UF 20% 760VDC RADIAL |
7,935 | - |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.240" L x 0.413" W (31.50mm x 10.50mm) | 0.807" (20.50mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
C4CAPUB3100AA0JCAP FILM 0.1UF 5% 1.2KVDC AXIAL |
3,142 | - |
|
Datasheet | Axial | 0.1 µF | ±5% | 500V | 1200V (1.2kV) | Polypropylene (PP), Metallized | 13.4 mOhms | -40°C ~ 85°C | Through Hole | 0.551" Dia x 1.299" L (14.00mm x 33.00mm) | - | PC Pins | - | DC Link, DC Filtering; High Frequency, Switching; Snubber | - | - |
|
C276CC24250AA0JCAP FILM 2.5UF 5% 470VAC RADIAL |
407 | - |
|
Datasheet | Radial, Can | 2.5 µF | ±5% | 470V | - | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Chassis, Stud Mount | 0.984" Dia (25.00mm) | 2.362" (60.00mm) | Quick Connect - 0.250" (6.3mm) | 0.394" (10.00mm) | Motor Run | - | - |
|
R49AR422000B1MCAP FILM 2.2UF 20% 800VDC RADIAL |
380 | - |
|
Datasheet | Radial | 2.2 µF | ±20% | 330V | 800V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X1 | - |
|

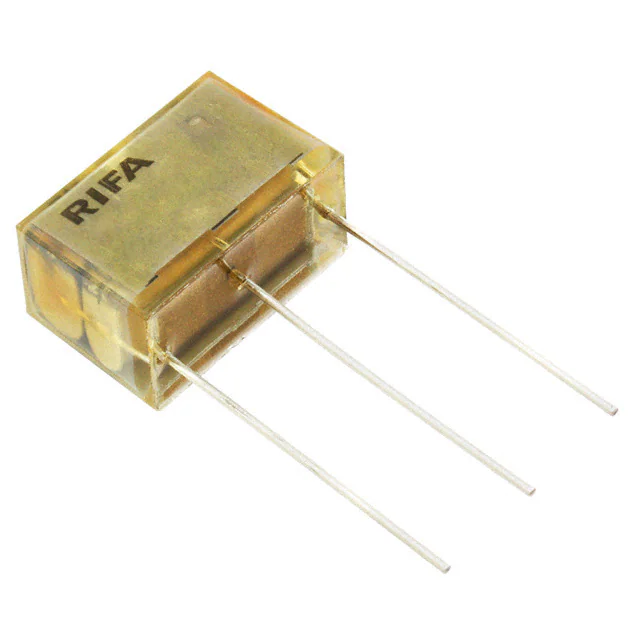

PZB300MC13R30CAP FILM 0.1UF 20% 275VAC RADIAL |
606 | - |
|
Datasheet | Radial - 3 Leads | 0.1 µF | ±20% | 275V | - | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.945" L x 0.492" W (24.00mm x 12.50mm) | 0.630" (16.00mm) | PC Pins | 0.787" (20.00mm) | EMI, RFI Suppression | - | - |
|
R46KR447050M2KCAP FILM 4.7UF 10% 560VDC RADIAL |
3,018 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.709" W (32.00mm x 18.00mm) | 1.303" (33.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
