Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
R523N410050P1MCAP FILM 1UF 20% 630VDC RADIAL |
8,058 | - |
|
Datasheet | Radial | 1 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive | AEC-Q200, X2 | - |
|
R46KN347040H1MCAP FILM 0.47UF 20% 560VDC RAD |
22 | - |
|
Datasheet | Radial | 0.47 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
F861DI684K310ZLH0JCAP FILM 0.68UF 10% 310VAC RAD |
2,221 | - |
|
Datasheet | Radial | 0.68 µF | ±10% | 310V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.630" (16.00mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|

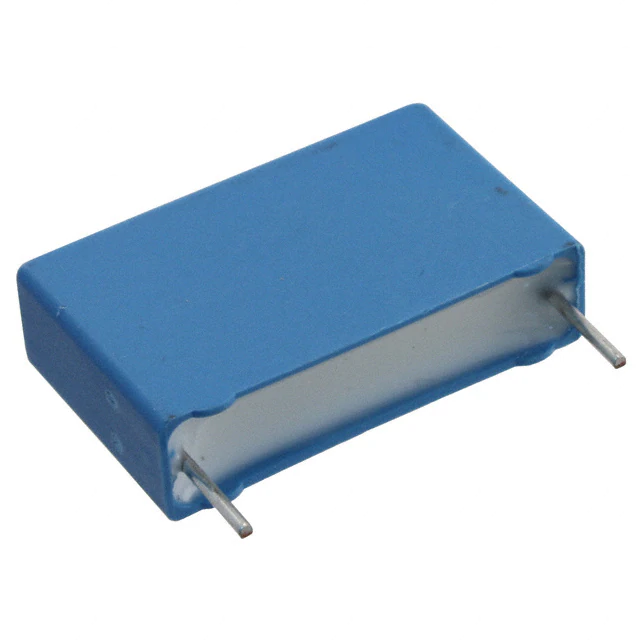

PHE840MD6330KD17R06L2CAP FILM 0.33UF 10% 760VDC RAD |
7,124 | - |
|
Datasheet | Radial | 0.33 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.276" W (26.00mm x 7.00mm) | 0.650" (16.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R76TN282050H4JCAP FILM 0.08UF 5% 1.6KVDC RAD |
5,676 | - |
|
Datasheet | Radial | 0.08 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 31 mOhms | -55°C ~ 125°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R46KR410000M1MCAP FILM 1UF 20% 560VDC RADIAL |
6,018 | - |
|
Datasheet | Radial | 1 µF | ±20% | 275V | 560V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE840MD6470KD15R06L2CAP FILM 0.47UF 10% 760VDC RAD |
5,062 | - |
|
Datasheet | Radial | 0.47 µF | ±10% | 275V | 760V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
R463R410040M1KCAP FILM 1UF 10% 630VDC RAD |
9,093 | - |
|
Datasheet | Radial | 1 µF | ±10% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.260" L x 0.433" W (32.00mm x 11.00mm) | 0.791" (20.10mm) | PC Pins | 1.083" (27.50mm) | EMI, RFI Suppression | X2 | - |
|
PHE426MD6330JR06L2CAP FILM 0.33UF 5% 630VDC RAD |
10 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 1.024" L x 0.354" W (26.00mm x 9.00mm) | 0.728" (18.50mm) | PC Pins | 0.886" (22.50mm) | DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | - | - |
|
PME261KB6100KR30CAP FILM 0.1UF 10% 400VDC RADIAL |
8,403 | - |
|
Datasheet | Radial | 0.1 µF | ±10% | 220V | 400V | Paper, Metallized | - | -40°C ~ 100°C | Through Hole | 0.728" L x 0.287" W (18.50mm x 7.30mm) | 0.512" (13.00mm) | PC Pins | 0.598" (15.20mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
