Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

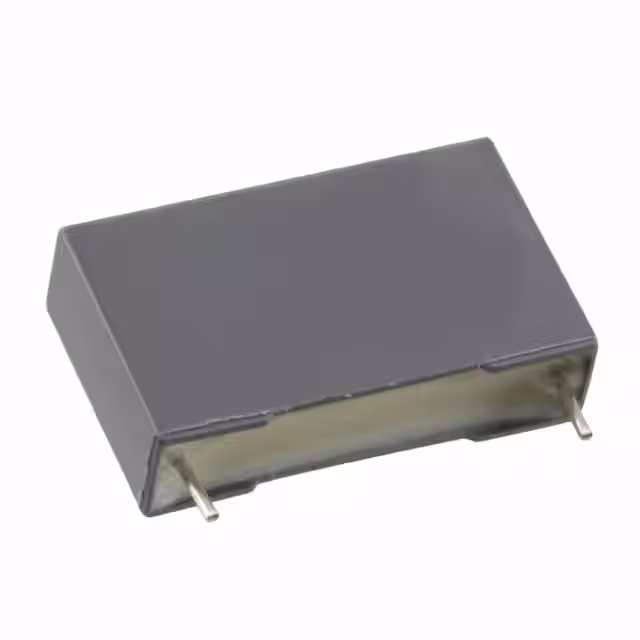

R474N3100JBA1MCAP FILM 0.1UF 20% 1KVDC RADIAL |
7,618 | - |
|
Datasheet | Radial | 0.1 µF | ±20% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.276" W (26.50mm x 7.00mm) | 0.634" (16.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X1 | - |
|
R75UI21004030JCAP FILM 10000PF 5% 2KVDC RADIAL |
5,882 | - |
|
Datasheet | Radial | 10000 pF | ±5% | 700V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
|
R75MI3220DQ30JCAP FILM 0.22UF 5% 400VDC RADIAL |
4,553 | - |
|
Datasheet | Radial | 0.22 µF | ±5% | 220V | 400V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.532" (13.50mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R75PI327050H3JCAP FILM 0.27UF 5% 630VDC RADIAL |
3,122 | - |
|
Datasheet | Radial | 0.27 µF | ±5% | 250V | 630V | Polypropylene (PP), Metallized | 17.7 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.433" W (18.00mm x 11.00mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R474I24705003KCAP FILM 0.047UF 10% 1KVDC RAD |
4,119 | - |
|
Datasheet | Radial | 0.047 µF | ±10% | 440V | 1000V (1kV) | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.709" L x 0.354" W (18.00mm x 9.00mm) | 0.496" (12.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; EMI, RFI Suppression | AEC-Q200, X2 | - |
|
|
R75II3470AA40JCAP FILM 0.47UF 5% 250VDC RADIAL |
19 | - |
|
Datasheet | Radial | 0.47 µF | ±5% | 160V | 250V | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.295" W (18.00mm x 7.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R76TN26805050JFILM, RADIAL, PULSE, DOUBLE META |
5,410 | - |
|
Datasheet | Radial | 0.068 µF | ±5% | 650V | 1600V (1.6kV) | Polypropylene (PP), Metallized | 16.4 mOhms | -55°C ~ 110°C | Through Hole | 1.043" L x 0.335" W (26.50mm x 8.50mm) | 0.673" (17.10mm) | PC Pins | 0.886" (22.50mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R73UI0100SE03KCAP FILM 100PF 10% 2KVDC RADIAL |
19 | - |
|
Datasheet | Radial | 100 pF | ±10% | 500V | 2000V (2kV) | Polypropylene (PP), Metallized | - | -55°C ~ 105°C | Through Hole | 0.709" L x 0.197" W (18.00mm x 5.00mm) | 0.433" (11.00mm) | PC Pins | 0.591" (15.00mm) | Automotive; DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
|
R463N368040M2MCAP FILM 0.68UF 20% 630VDC RAD |
6 | - |
|
Datasheet | Radial | 0.68 µF | ±20% | 310V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.043" L x 0.394" W (26.50mm x 10.00mm) | 0.732" (18.60mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
|
|
R75GI410050H0JCAP FILM 1UF 5% 160VDC RADIAL |
4,692 | - |
|
Datasheet | Radial | 1 µF | ±5% | 90V | 160V | Polypropylene (PP), Metallized | 4.8 mOhms | -55°C ~ 125°C | Through Hole | 0.709" L x 0.394" W (18.00mm x 10.00mm) | 0.634" (16.10mm) | PC Pins | 0.591" (15.00mm) | Automotive; High Frequency, Switching; High Pulse, DV/DT | AEC-Q200 | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
