Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-U4473V17CAP FILM 0.047UF 5% 400VDC 2820 |
26,977 | - |
|
Datasheet | 2820 (7150 Metric) | 0.047 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.165" (4.20mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

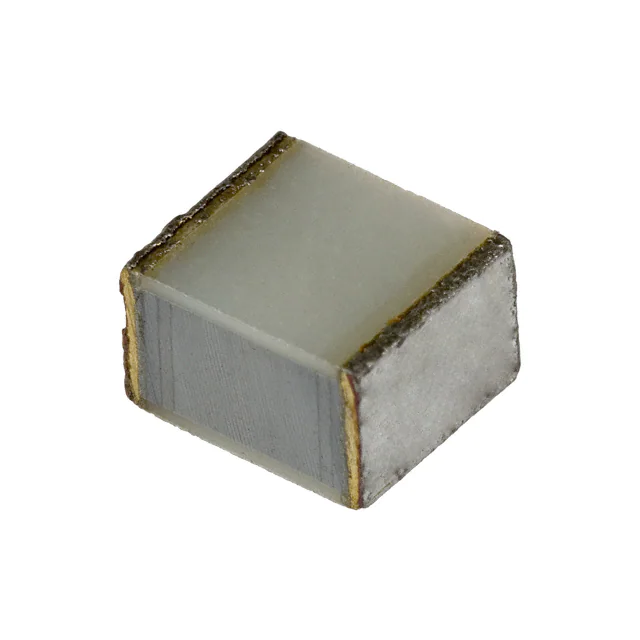

ECW-U4563V17CAP FILM 0.056UF 5% 400VDC 2825 |
1,988 | - |
|
Datasheet | 2825 (7163 Metric) | 0.056 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.157" (4.00mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|

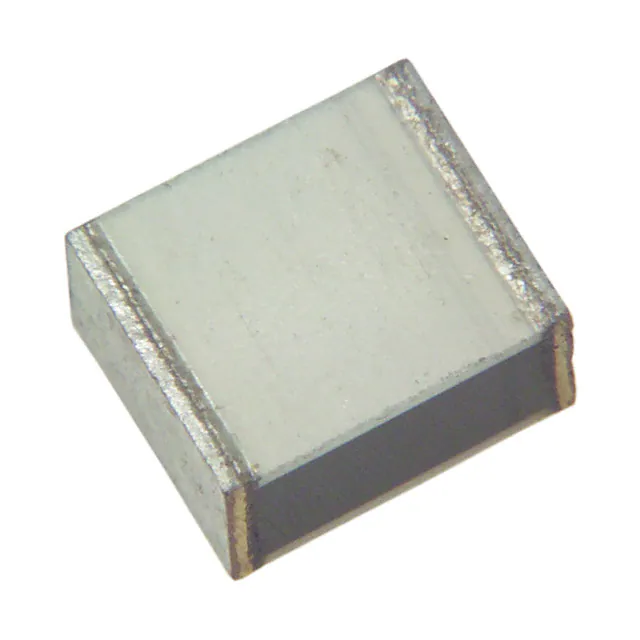

ECW-U2104KC9CAP FILM 0.1UF 10% 250VDC 2420 |
20,711 | - |
|
Datasheet | 2420 (6050 Metric) | 0.1 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.197" W (6.00mm x 5.00mm) | 0.157" (4.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E2W105KHCAP FILM 1UF 10% 450VDC RADIAL |
1,740 | - |
|
Datasheet | Radial | 1 µF | ±10% | - | 450V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.335" W (18.20mm x 8.50mm) | 0.705" (17.90mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | - | - |
|
ECW-U1C224JC9CAP FILM 0.22UF 5% 16VDC 1913 |
4,103 | - |
|
Datasheet | 1913 (4833 Metric) | 0.22 µF | ±5% | 8V | 16V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E6105KFCAP FILM 1UF 10% 630VDC RADIAL |
19,003 | - |
|
Datasheet | Radial | 1 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.492" W (31.00mm x 12.50mm) | 0.902" (22.90mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
|
ECW-U1224KC9CAP FILM 0.22UF 10% 100VDC 2820 |
6,111 | - |
|
Datasheet | 2820 (7150 Metric) | 0.22 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.102" (2.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-F6203HLCAP FILM 0.02UF 3% 630VDC RADIAL |
197 | - |
|
Datasheet | Radial | 0.02 µF | ±3% | 223V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.492" L x 0.256" W (12.50mm x 6.50mm) | 0.425" (10.80mm) | PC Pins | 0.394" (10.00mm) | High Frequency, Switching | - | - |
|
ECQ-E4225KFCAP FILM 2.2UF 10% 400VDC RADIAL |
1,643 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.433" W (31.00mm x 11.00mm) | 0.906" (23.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
 Series Straight 18x12.jpg "ECW-F2225JA")
|
ECW-F2225JACAP FILM 2.2UF 5% 250VDC RADIAL |
1,387 | - |
|
Datasheet | Radial | 2.2 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.740" L x 0.496" W (18.80mm x 12.60mm) | 0.752" (19.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
