Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECW-F4105JLCAP FILM 1UF 5% 400VDC RADIAL |
893 | - |
|
Datasheet | Radial | 1 µF | ±5% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.906" L x 0.512" W (23.00mm x 13.00mm) | 0.839" (21.30mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-F4684JBCAP FILM 0.68UF 5% 400VDC RADIAL |
331 | - |
|
Datasheet | Radial | 0.68 µF | ±5% | 200V | 400V | Polypropylene (PP), Metallized | - | -25°C ~ 85°C | Through Hole | 0.906" L x 0.571" W (23.00mm x 14.50mm) | 0.906" (23.00mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|

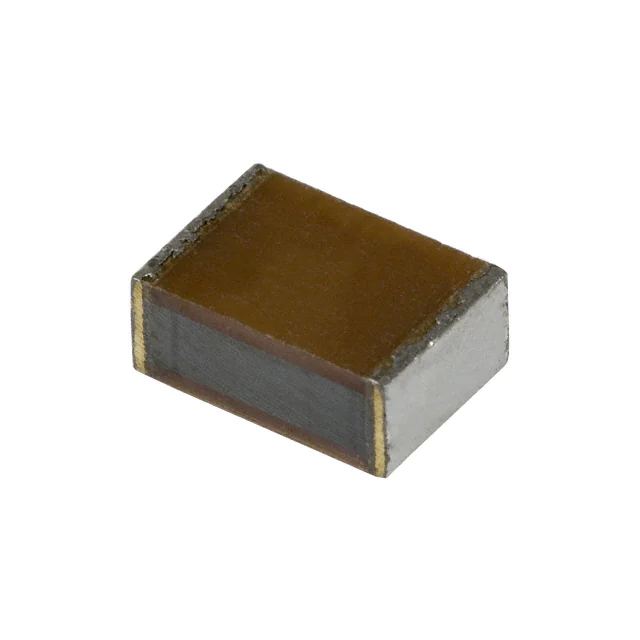

ECH-U1104JC9CAP FILM 0.1UF 5% 100VDC 2820 |
2,142 | - |
|
Datasheet | 2820 (7150 Metric) | 0.1 µF | ±5% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.197" W (7.10mm x 5.00mm) | 0.130" (3.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-H12104JVCAP FILM 0.1UF 5% 1.25KVDC RAD |
909 | - |
|
Datasheet | Radial | 0.1 µF | ±5% | 354V | 1250V (1.25kV) | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.610" W (28.00mm x 15.50mm) | 1.004" (25.50mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
|
ECQ-E2825JFCAP FILM 8.2UF 5% 250VDC RADIAL |
741 | - |
|
Datasheet | Radial | 8.2 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.563" W (31.00mm x 14.30mm) | 0.984" (25.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
|
ECQ-E6225KFCAP FILM 2.2UF 10% 630VDC RADIAL |
521 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.768" W (31.00mm x 19.50mm) | 1.181" (30.00mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
 Series Straight 23x11.jpg "ECW-F2395JA")
|
ECW-F2395JACAP FILM 3.9UF 5% 250VDC RADIAL |
2,068 | - |
|
Datasheet | Radial | 3.9 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.531" W (23.80mm x 13.50mm) | 0.819" (20.80mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
ECQ-E1106KFBCAP FILM 10UF 10% 100VDC RADIAL |
1,598 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 1.024" (26.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
|

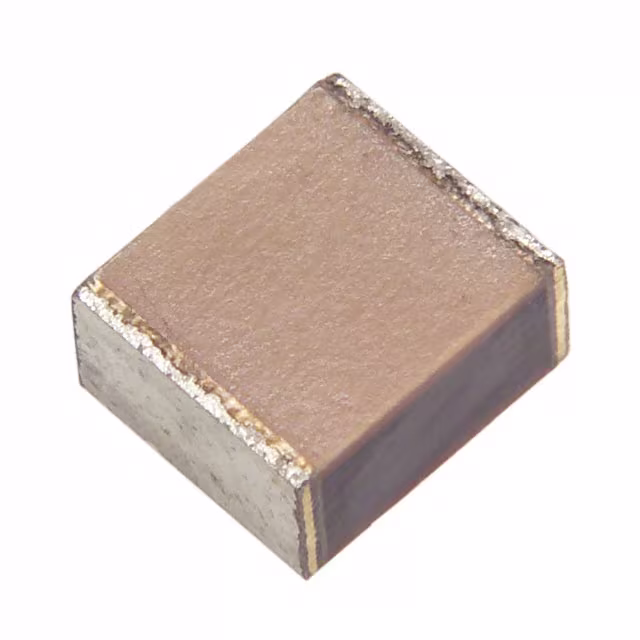

ECH-U1224GCVCAP FILM 0.22UF 2% 100VDC 2825 |
2,824 | - |
|
Datasheet | 2825 (7163 Metric) | 0.22 µF | ±2% | 40V | 100V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 105°C | Surface Mount | 0.280" L x 0.248" W (7.10mm x 6.30mm) | 0.201" (5.10mm) | Solder Pads | - | General Purpose | - | - |
|
|
ECW-F4205HLCAP FILM 2UF 3% 400VDC RADIAL |
617 | - |
|
Datasheet | Radial | 2 µF | ±3% | 141V | 400V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.102" L x 0.630" W (28.00mm x 16.00mm) | 0.969" (24.60mm) | PC Pins | 0.984" (25.00mm) | High Frequency, Switching | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
