Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2225KFCAP FILM 2.2UF 10% 250VDC RADIAL |
4,677 | - |
|
Datasheet | Radial | 2.2 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.335" W (26.00mm x 8.50mm) | 0.681" (17.30mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECQ-UAAF105MCAP FILM 1UF 20% 275VAC RADIAL |
866 | - |
|
Datasheet | Radial | 1 µF | ±20% | 275V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.768" (19.50mm) | PC Pins | 0.886" (22.50mm) | EMI, RFI Suppression | X2 | - |
.jpg "ECH-U1H473JX9")
|

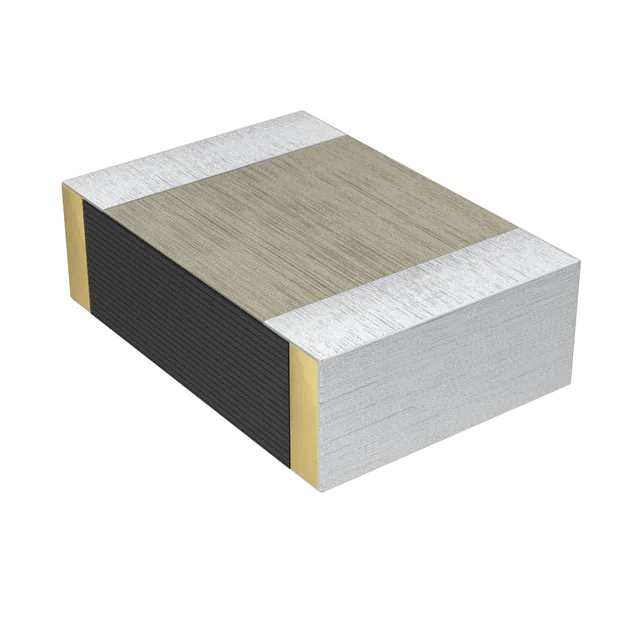

ECH-U1H473JX9CAP FILM 0.047UF 5% 50VDC 1913 |
8,861 | - |
|
Datasheet | 1913 (4833 Metric) | 0.047 µF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
|

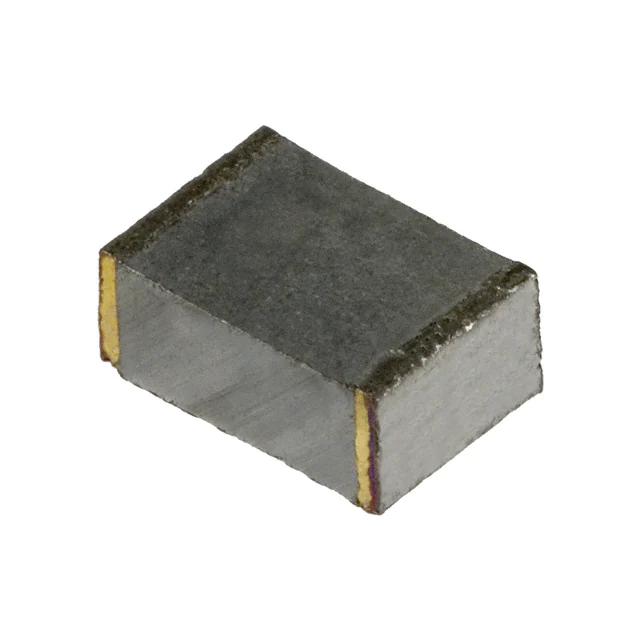

ECW-U2222JC9CAP FILM 2200PF 5% 250VDC 1913 |
665 | - |
|
Datasheet | 1913 (4833 Metric) | 2200 pF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.067" (1.70mm) | Solder Pads | - | General Purpose | - | - |
 Series Straight 18x9.jpg "ECW-F2W105JA")
|
ECW-F2W105JACAP FILM 1UF 5% 450VDC RADIAL |
59,701 | - |
|
Datasheet | Radial | 1 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.713" L x 0.366" W (18.10mm x 9.30mm) | 0.555" (14.10mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|

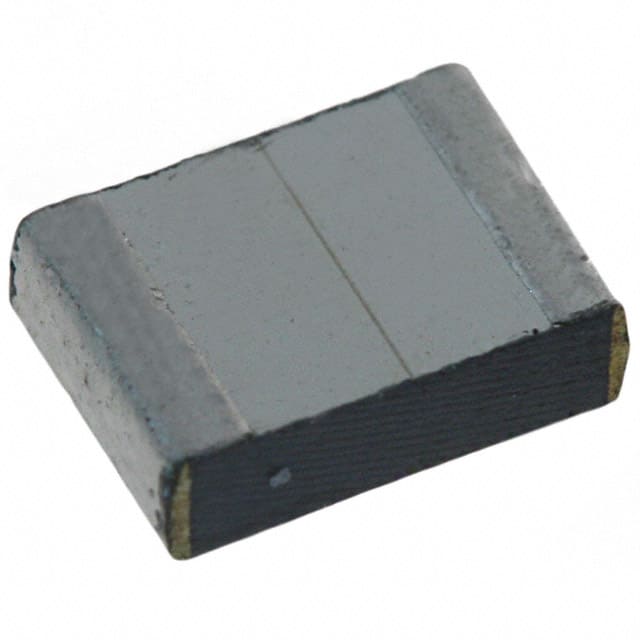

ECH-U1H104GX9CAP FILM 0.1UF 2% 50VDC 1913 |
18,239 | - |
|
Datasheet | 1913 (4833 Metric) | 0.1 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.091" (2.30mm) | Solder Pads | - | General Purpose | - | - |
|

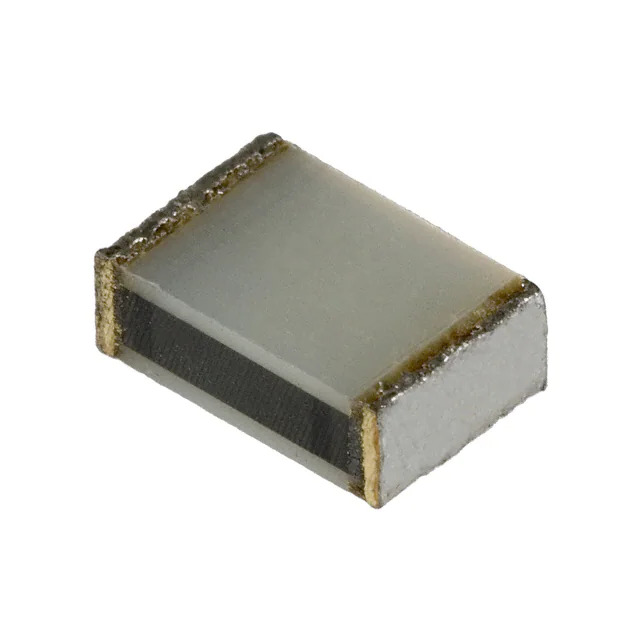

ECW-U4223V17CAP FILM 0.022UF 5% 400VDC 2416 |
4,099 | - |
|
Datasheet | 2416 (6041 Metric) | 0.022 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.134" (3.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
|
ECQ-E2475KFCAP FILM 4.7UF 10% 250VDC RADIAL |
6,500 | - |
|
Datasheet | Radial | 4.7 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.472" W (26.00mm x 12.00mm) | 0.886" (22.50mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
|
ECW-U4104V17CAP FILM 0.1UF 5% 400VDC 3925 |
409,767 | - |
|
Datasheet | 3925 (9863 Metric) | 0.1 µF | ±5% | 157V | 400V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.173" (4.40mm) | Solder Pads | - | DC Link, DC Filtering | - | - |
.jpg "ECH-U1H154GX9")
|

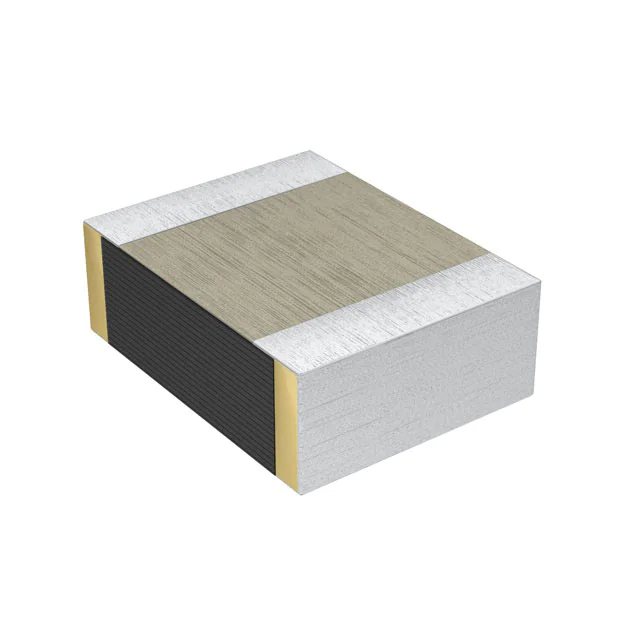

ECH-U1H154GX9CAP FILM 0.15UF 2% 50VDC 2416 |
11,531 | - |
|
Datasheet | 2416 (6041 Metric) | 0.15 µF | ±2% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.236" L x 0.161" W (6.00mm x 4.10mm) | 0.083" (2.10mm) | Solder Pads | - | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
