Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECQ-E2685KFCAP FILM 6.8UF 10% 250VDC RADIAL |
7,901 | - |
|
Datasheet | Radial | 6.8 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.220" L x 0.512" W (31.00mm x 13.00mm) | 0.921" (23.40mm) | PC Pins | 1.083" (27.50mm) | General Purpose | - | - |
 Series Straight 26x13.jpg "ECW-F2W475JA")
|
ECW-F2W475JACAP FILM 4.7UF 5% 450VDC RADIAL |
419 | - |
|
Datasheet | Radial | 4.7 µF | ±5% | 84V | 450V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 1.035" L x 0.543" W (26.30mm x 13.80mm) | 0.831" (21.10mm) | PC Pins | 0.886" (22.50mm) | High Frequency, Switching | - | - |
|
ECW-U1105KCVCAP FILM 1UF 10% 100VDC 3925 |
703 | - |
|
Datasheet | 3925 (9863 Metric) | 1 µF | ±10% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.209" (5.30mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E1106KFCAP FILM 10UF 10% 100VDC RADIAL |
3,538 | - |
|
Datasheet | Radial | 10 µF | ±10% | - | 100V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 1.024" L x 0.453" W (26.00mm x 11.50mm) | 0.866" (22.00mm) | PC Pins | 0.886" (22.50mm) | General Purpose | - | - |
 Series Straight 23x14.jpg "ECW-F2475JA")
|
ECW-F2475JACAP FILM 4.7UF 5% 250VDC RADIAL |
3,046 | - |
|
Datasheet | Radial | 4.7 µF | ±5% | 125V | 250V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.937" L x 0.583" W (23.80mm x 14.80mm) | 0.870" (22.10mm) | PC Pins | 0.787" (20.00mm) | High Frequency, Switching | - | - |
|
|
ECW-U2334KCVCAP FILM 0.33UF 10% 250VDC 3925 |
13,729 | - |
|
Datasheet | 3925 (9863 Metric) | 0.33 µF | ±10% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.386" L x 0.248" W (9.80mm x 6.30mm) | 0.197" (5.00mm) | Solder Pads | - | General Purpose | - | - |
|

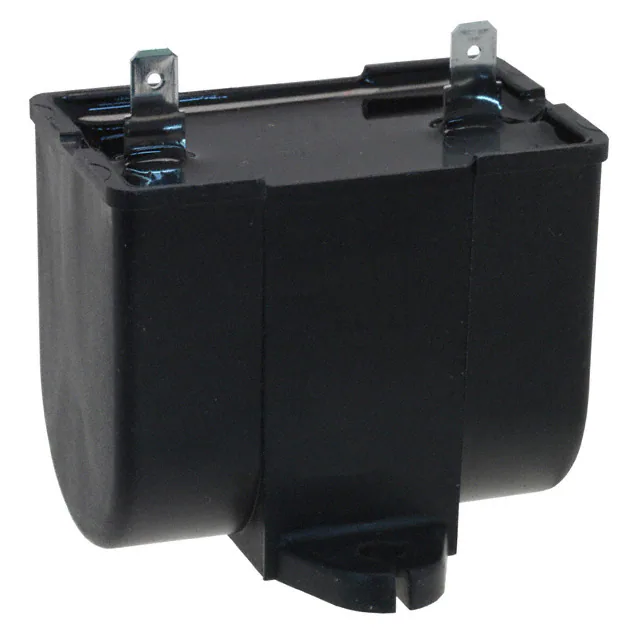

JS251156-BACAP FILM 15UF 10% 250VAC CHAS MT |
381 | - |
|
Datasheet | Rectangular Box | 15 µF | ±10% | 250V | - | Polypropylene (PP), Metallized | - | -25°C ~ 70°C | Chassis Mount | 1.969" L x 1.201" W (50.00mm x 30.50mm) | 1.654" (42.00mm) | Quick Connect - 0.187" (4.7mm) | - | Motor Run | - | - |
|
ECQ-E2124JFCAP FILM 0.12UF 5% 250VDC RADIAL |
1,156 | - |
|
Datasheet | Radial | 0.12 µF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.236" W (10.30mm x 6.00mm) | 0.394" (10.00mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
|
ECQ-E2103JBCAP FILM 10000PF 5% 250VDC RAD |
9,914 | - |
|
Datasheet | Radial | 10000 pF | ±5% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.311" L x 0.165" W (7.90mm x 4.20mm) | 0.319" (8.10mm) | PC Pins | 0.197" (5.00mm) | General Purpose | - | - |
|
ECQ-E4103JFCAP FILM 10000PF 5% 400VDC RAD |
2,839 | - |
|
Datasheet | Radial | 10000 pF | ±5% | - | 400V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.406" L x 0.169" W (10.30mm x 4.30mm) | 0.331" (8.40mm) | PC Pins | 0.295" (7.50mm) | General Purpose | - | - |
