Film Capacitors
Compare the current Film Capacitors Capacitors selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Capacitance | Tolerance | Voltage Rating - AC | Voltage Rating - DC | Dielectric Material | ESR (Equivalent Series Resistance) | Operating Temperature | Mounting Type | Size / Dimension | Height - Seated (Max) | Termination | Lead Spacing | Applications | Ratings | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

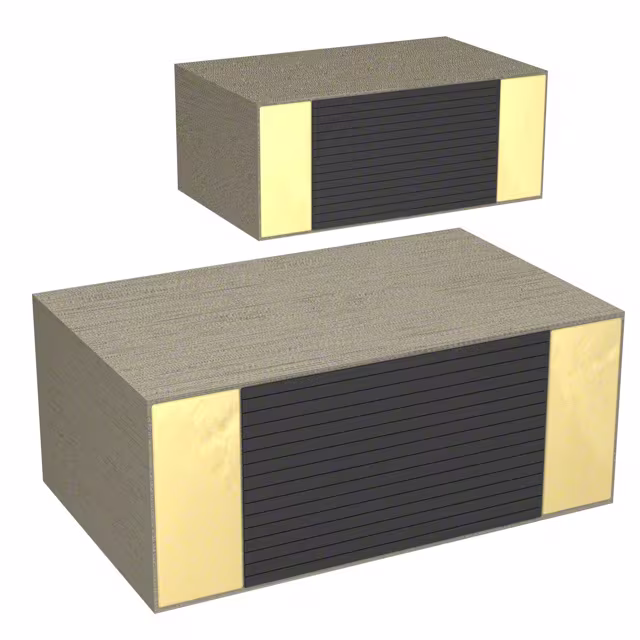

 J1.jpg "ECH-U1C562JB5")
|
ECH-U1C562JB5CAP FILM 5600PF 5% 16VDC 0805 |
5,352 | - |
|
Datasheet | 0805 (2012 Metric) | 5600 pF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-UBAF683MCAP FILM 0.068UF 20% 300VAC RADI |
1,715 | - |
|
Datasheet | Radial | 0.068 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | EMI, RFI Suppression | X1 | - |
|
ECH-U1H332JB5CAP FILM 3300PF 5% 50VDC 1206 |
10,005 | - |
|
Datasheet | 1206 (3216 Metric) | 3300 pF | ±5% | 30V | 50V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECW-U2333V16CAP FILM 0.033UF 5% 250VDC 1913 |
2,382 | - |
|
Datasheet | 1913 (4833 Metric) | 0.033 µF | ±5% | 125V | 250V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 85°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.122" (3.10mm) | Solder Pads | - | High Frequency, Switching; High Pulse, DV/DT | - | - |
 Series Straight 18x8.jpg "ECW-FA2J334J")
|
ECW-FA2J334JCAP FILM 0.33UF 5% 630VDC RADIAL |
1,537 | - |
|
Datasheet | Radial | 0.33 µF | ±5% | 141V | 630V | Polypropylene (PP), Metallized | - | -40°C ~ 105°C | Through Hole | 0.717" L x 0.335" W (18.20mm x 8.50mm) | 0.535" (13.60mm) | PC Pins | 0.591" (15.00mm) | High Frequency, Switching | - | - |
|
|
ECH-U1C153JB5CAP FILM 0.015UF 5% 16VDC 1206 |
241,688 | - |
|
Datasheet | 1206 (3216 Metric) | 0.015 µF | ±5% | 11V | 16V | Polyphenylene Sulfide (PPS), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.039" (1.00mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-UBAF683V2CAP FILM 0.068UF 20% 300VAC RADI |
2,580 | - |
|
Datasheet | Radial | 0.068 µF | ±20% | 300V | - | Polypropylene (PP), Metallized | - | -40°C ~ 110°C | Through Hole | 0.728" L x 0.315" W (18.50mm x 8.00mm) | 0.709" (18.00mm) | PC Pins | 0.492" (12.50mm) | EMI, RFI Suppression | X1 | - |
|
ECQ-E2155KBCAP FILM 1.5UF 10% 250VDC RADIAL |
22,168 | - |
|
Datasheet | Radial | 1.5 µF | ±10% | - | 250V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.602" L x 0.339" W (15.30mm x 8.60mm) | 0.657" (16.70mm) | PC Pins | 0.492" (12.50mm) | General Purpose | - | - |
|
|
ECW-U1333JC9CAP FILM 0.033UF 5% 100VDC 1913 |
5,394 | - |
|
Datasheet | 1913 (4833 Metric) | 0.033 µF | ±5% | 40V | 100V | Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked | - | -55°C ~ 125°C | Surface Mount | 0.189" L x 0.130" W (4.80mm x 3.30mm) | 0.063" (1.60mm) | Solder Pads | - | General Purpose | - | - |
|
ECQ-E6823JFCAP FILM 0.082UF 5% 630VDC RAD |
873 | - |
|
Datasheet | Radial | 0.082 µF | ±5% | - | 630V | Polyester, Metallized | - | -40°C ~ 105°C | Through Hole | 0.728" L x 0.256" W (18.50mm x 6.50mm) | 0.512" (13.00mm) | PC Pins | 0.591" (15.00mm) | General Purpose | - | - |
Film Capacitors FAQ
How can I narrow the current Film Capacitors selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Film Capacitors parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
